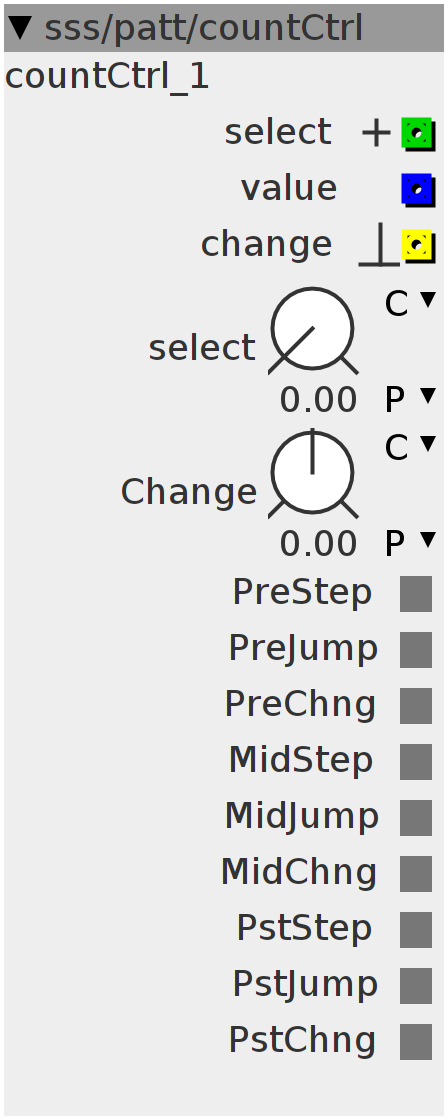

countCtrl
controller for the range counter modules
Inlets
None
Outlets
int32.positive output
frac32 value
bool32.pulse change
Parameters
frac32.u.map select
frac32.s.map Change
Displays
bool32 PreStep
bool32 PreJump
bool32 PreChng
bool32 MidStep
bool32 MidJump
bool32 MidChng
bool32 PstStep
bool32 PstJump
bool32 PstChng
int ptrig;
int32_t pval;ptrig = 0;
pval = 0;int r = (param_select / 64 * 9) >> 21;
outlet_select = r;
outlet_value = param_Change;
if ((pval != param_Change) & (!ptrig)) {
outlet_change = 1;
pval = param_Change;
ptrig = 1;
} else {
ptrig = 0;
outlet_change = 0;
}
disp_PreStep = (r == 0) ? 1 : 0;
disp_PreJump = (r == 1) ? 1 : 0;
disp_PreChng = (r == 2) ? 1 : 0;
disp_MidStep = (r == 3) ? 1 : 0;
disp_MidJump = (r == 4) ? 1 : 0;
disp_MidChng = (r == 5) ? 1 : 0;
disp_PstStep = (r == 6) ? 1 : 0;
disp_PstJump = (r == 7) ? 1 : 0;
disp_PstChng = (r == 8) ? 1 : 0;
