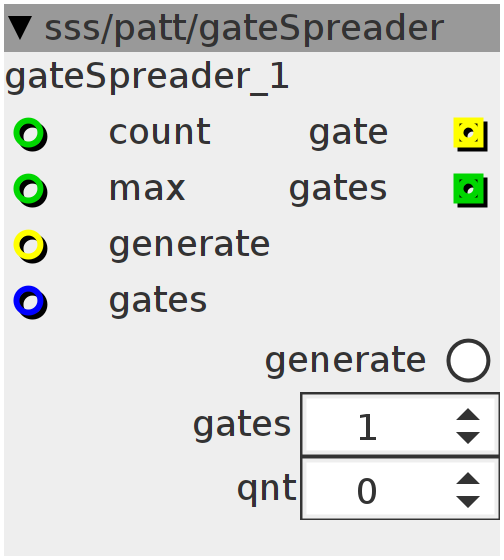

gateSpreader
This module generates an x-amount of steps within the given max-count (input). Use my "countExt" or "polyCount" module to connect the "max" input/output. After hitting "generate" it will generate new gates one by one, each time checking which distance between gates is the longest and then randomly divides this distance into 2 gates. The maximum amount of gates being generated is set by the "gates" selector and their timing can be quantised with the "qnt" selector (powers of 2!). The amount of gates ACTUALLY TO BE PLAYED depends on the "gates" input which is scaled to the "gates" selector (which just sets the maximum amount of gates to be generated in the array). When the "gate" input is 0, no gate will be generated. When "gate" input goes higher, it adds the gates in the order they were created, making smaller and smaller sections by adding gates in the longest "pauzes". Up to the amount of gates set by the "gate" selector.
Inlets
frac32 gates
int32 count
int32 max
bool32 generate
Outlets
bool32 gate
int32 gates
Parameters
int32 gates
int32 qnt
bool32.mom generate
// number & start/length
int16_t data[32][2];
int i;
int j;
bool gen;
int prv;
bool GEN = 1;
int gates;if ((GEN > 0) && !gen) {
gen = 1;
gates = param_gates; //___SMMUL(param_gates<<3,inlet_gates<<2);
for (i = 0; i < 32; i++) {
data[i][0] = 0;
data[i][0] = 0;
}
data[0][1] = inlet_max;
for (i = 0; i < (gates - 1); i++) {
int16_t max = 0;
int pos = 0;
for (j = 0; j < (i + 1); j++) {
if (data[j][1] > max) {
max = data[j][1];
pos = j;
}
}
int16_t tmp = ___SMMUL((int32_t)(data[pos][1] - (1 << param_qnt)) << 2,
(int32_t)(GenerateRandomNumber() &
((1 << 30 - param_qnt) - 1))) +
1
<< param_qnt;
data[i + 1][1] = data[pos][1] - tmp;
data[i + 1][0] = data[pos][0] + tmp;
data[pos][1] = tmp;
}
} else if (GEN == 0) {
gen = 0;
}
outlet_gate = 0;
if (!(inlet_count == prv)) {
for (i = 0; i < ___SMMUL(gates << 3, inlet_gates << 2); i++) {
if (inlet_count ==
data[i][0]) //(___SMMUL((int32_t)(data[i][0])<<14,inlet_max<<3)))
{
outlet_gate = 1;
}
}
}
prv = inlet_count;
outlet_gates = gates;
GEN = param_generate + inlet_generate;
