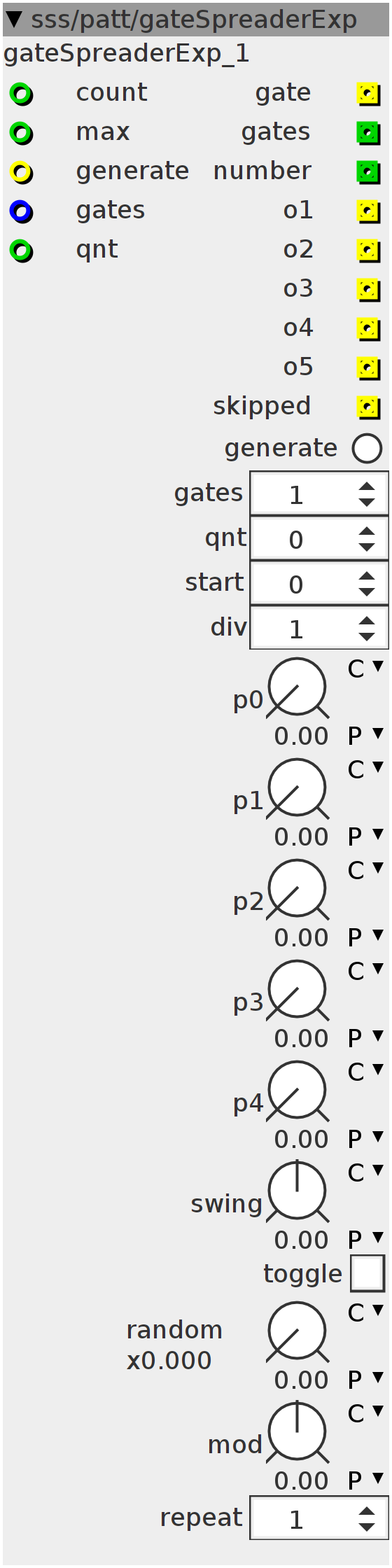

gateSpreaderExp
Expanded gate spreader This module generates an x-amount of steps within the given max-count (input). Use my "countExt" or "polyCount" module to connect the "max" input/output. After hitting "generate" it will generate new gates one by one, each time checking which distance between gates is the longest and then randomly divides this distance into 2 gates. The maximum amount of gates being generated is set by the "gates" selector and their timing can be quantised with the "qnt" selector (powers of 2!). The amount of gates ACTUALLY TO BE PLAYED depends on the "gates" input which is scaled to the "gates" selector (which just sets the maximum amount of gates to be generated in the array). When the "gate" input is 0, no gate will be generated. When "gate" input goes higher, it adds the gates in the order they were created, making smaller and smaller sections by adding gates in the longest "pauzes". Up to the amount of gates set by the "gate" selector.
Inlets
int32 count
int32 max
int32 qnt
bool32 generate
frac32 gates
Outlets
bool32 gate
bool32 o1
bool32 o2
bool32 o3
bool32 o4
bool32 o5
bool32 skipped
int32 gates
int32 number
Parameters
frac32.u.map.gain random
bool32.mom generate
int32 gates
int32 qnt
int32 start
int32 div
int32 repeat
frac32.u.map p0
frac32.u.map p1
frac32.u.map p2
frac32.u.map p3
frac32.u.map p4
frac32.s.map swing
frac32.s.map mod
bool32.tgl toggle
// number & start/length
int16_t data[64][2];
int i;
int j;
bool gen;
int prv;
bool GEN = 1;
int gates;
int number;
int32_t val[5];
int32_t v27 = 1 << 27;
int32_t PRV;
int32_t vi30 = (1 << 30) - 1;uint32_t sum;
sum = param_p0 + param_p1 + param_p2 + param_p3 + param_p4;
float32_t ratio = (float32_t)v27 / sum;
if (!(sum == PRV)) {
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_p0],
param_p0 * ratio, 0xFFFD);
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_p1],
param_p1 * ratio, 0xFFFD);
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_p2],
param_p2 * ratio, 0xFFFD);
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_p3],
param_p3 * ratio, 0xFFFD);
PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_p4],
param_p4 * ratio, 0xFFFD);
}
sum = param_p0 + param_p1 + param_p2 + param_p3 + param_p4;
int32_t Gat = ___SMMUL(gates << 5, inlet_gates << 2);
val[0] = ___SMMUL(param_p0 << 3, Gat);
val[1] = ___SMMUL(param_p1 << 3, Gat) + val[0];
val[2] = ___SMMUL(param_p2 << 3, Gat) + val[1];
val[3] = ___SMMUL(param_p3 << 3, Gat) + val[2];
val[4] = ___SMMUL(param_p4 << 3, Gat) + val[3];
if ((GEN > 0) && !gen) {
gen = 1;
gates = param_gates; //___SMMUL(param_gates<<3,inlet_gates<<2);
for (i = 0; i < 64; i++) {
data[i][0] = 0;
data[i][0] = 0;
}
data[0][1] = inlet_max;
for (i = 0; i < (gates - 1); i++) {
int16_t max = 0;
int pos = 0;
for (j = 0; j < (i + 1); j++) {
if (data[j][1] > max) {
max = data[j][1];
pos = j;
}
}
int32_t TMP = (int32_t)(GenerateRandomNumber()) & (vi30);
int32_t swing =
((i & 1) > (1 - param_toggle) ? -param_swing : param_swing) + v27 << 2;
int k = i - i / param_repeat * param_repeat;
swing = (swing + (k * param_mod * 8)) & vi30;
TMP = swing + (___SMMUL(param_random, TMP - swing) << 1);
int16_t tmp = ___SMMUL((int32_t)(data[pos][1] - 1) << 2, TMP) + 1;
// int16_t
// tmp=___SMMUL((int32_t)(data[pos][1]-1)<<2,(int32_t)(GenerateRandomNumber()&((1<<30)-1)))+1;
data[i + 1][1] = data[pos][1] - tmp;
data[i + 1][0] = data[pos][0] + tmp;
data[pos][1] = tmp;
}
} else if (GEN == 0) {
gen = 0;
}
outlet_gate = 0;
outlet_o1 = 0;
outlet_o2 = 0;
outlet_o3 = 0;
outlet_o4 = 0;
outlet_o5 = 0;
outlet_skipped = 0;
if (!(inlet_count == prv)) {
for (i = 0; i < ___SMMUL(gates << 3, inlet_gates << 2); i++) {
int qnt = __USAT(param_start - i / param_div, 8) + param_qnt + inlet_qnt;
int pos = (data[i][0] >> qnt) << qnt;
if (inlet_count == pos) {
outlet_gate = 1;
number = i;
if (i < val[0]) {
outlet_o1 = 1;
} else if (i < val[1]) {
outlet_o2 = 1;
} else if (i < val[2]) {
outlet_o3 = 1;
} else if (i < val[3]) {
outlet_o4 = 1;
} else if (i < val[4]) {
outlet_o5 = 1;
}
}
}
if (outlet_gate == 0) {
outlet_skipped = 1;
}
}
prv = inlet_count;
outlet_number = number;
outlet_gates = gates;
GEN = param_generate + inlet_generate;
