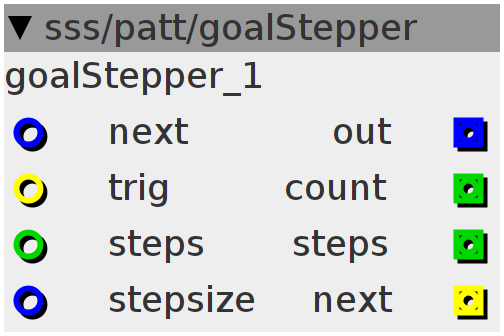

goalStepper
pattern generator that steps from a former value to a new value in a set amount of steps. INPUTS: "next" sets the next goal that the pattern will go to. at each trigger at the "trig" input, it will advance 1 step. "steps" sets the pattern length, after which the goal (new value) is reached. "stepsize" sets the count-size for the pattern, skipping intermediate steps and repeating steps, but making sure the last step will always be the goal. OUTPUTS: "out" outputs the pattern-value "count" outputs the count-position->maximum is set by the "steps" input "next" outputs a trigger when the maximum count is reached. By making a loop between this module and a counter and LFO (qtsLFO4), interesting patterns can be made: -connect "steps" output to the multiply input on the qtsLFO4, this way each stage takes the same time, but with a different measure (7/8, 9/8 15/8 etc etc) Don't forget to set the multiply parameter to 0, as it would otherwise offset the count-rate from host position! -connect the LFO output to the "trig" input and set the waveform to square (switch-position to 5) -connect the "next" output to a counter -connect counter output to 3 "sel/sel dial8" modules. -connect one sel/dial8 module to the "next" input, feeding the "goal-values" -connect one to the "steps" input, setting how many steps it will take to reach the next value -connect the last one to the "stepsize" input, enabling different patterns for each stage.
Inlets
frac32 next
frac32 stepsize
bool32 trig
int32 steps
Outlets
bool32 next
frac32 out
int32 count
int32 steps
int32_t count;
int32_t former;
int32_t next;
int ctrig;
int ttrig;
int32_t tcount;
int32_t steps;
int32_t Stepsize;count = 0;if ((count == 0) && !ctrig) {
steps = inlet_steps;
ctrig = 1;
former = next;
next = inlet_next;
outlet_next = 1;
} else if (!(count == 0)) {
ctrig = 0;
outlet_next = 0;
}
if ((inlet_trig > 0) && !ttrig) {
ttrig = 1;
count += 1;
count = count - (count / steps) * steps;
Stepsize = inlet_stepsize;
} else if (inlet_trig == 0) {
ttrig = 0;
}
tcount = count * (___SMMUL(Stepsize << 3, steps - 1 << 2) + 1);
tcount = tcount - (tcount / steps) * steps;
outlet_out = former + ((next - former)) * tcount / steps;
outlet_count = count;
outlet_steps = steps;
