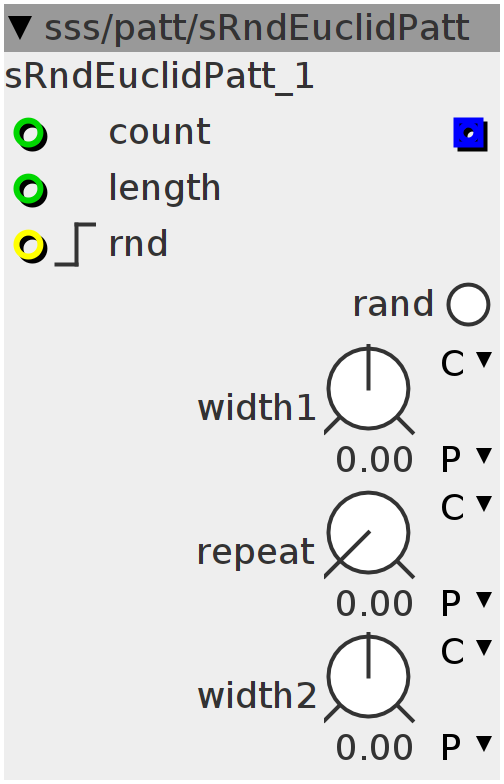

sRndEuclidPatt
random gate pattern generator connect "COUNT" to a counter (sss-logic) connect "LENGTH" to the max-count control width1 sets the width of the random sequence REPEAT sets an euclidian division over the entire length. The smaller the value, the smaller the steps->more gates. Width sets the width of the gates, being added to the random sequence.
Inlets
bool32.rising rnd
int32 count
int32 length
Outlets
frac32 rand
Parameters
bool32.mom rand
frac32.s.map width1
frac32.s.map width2
frac32.u.map repeat
int32_t _val[128];
int32_t vol;
int ntrig;
int8_t lng;
int i;for (i = 0; i < 64; i++)
_val[i] = (GenerateRandomNumber()) >> 4;
{}
ntrig = 0;int32_t repeat = ___SMMUL(param_repeat << 3, inlet_length << 2);
int32_t gtrig = inlet_count - ((inlet_count / repeat) * repeat);
gtrig = gtrig == 0 ? (1 << 27) : 0;
lng = inlet_length;
if (((param_rand + inlet_rnd) > 0) && (!(ntrig))) {
for (i = 0; i < lng; i++)
_val[i] = (GenerateRandomNumber()) >> 4;
{}
ntrig = 1;
} else if (!((param_rand + inlet_rnd) > 0)) {
ntrig = 0;
}
vol = _val[inlet_count];
outlet_rand = ___SMMUL(vol << 2, param_width1 << 2) +
___SMMUL(gtrig << 3, param_width2 << 2);
