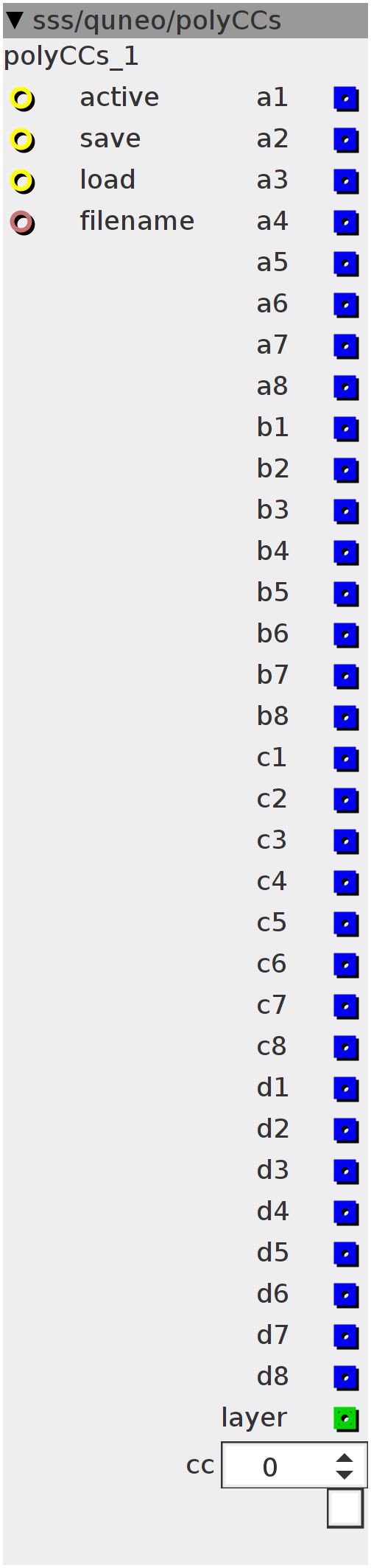

polyCCs
Receives Midi Continuous Controller messages from the Quneo midicontroller Only the two bottom rows of pads will be read Each pad-layer will be send to it's own control-output The hold-function makes sure the output won't be reset to zero when releasing, but holding the last CC value, even if the pads are set to reset to zero (needed for turning the LEDS off in "normal mode" after releasing the pad). Note though, that this doesn't really work for the pressure-control, as it will go down to zero if you release the pad anyways..
Inlets
bool32 active
bool32 save
bool32 load
charptr32 filename
Outlets
int32 layer
frac32 a1
frac32 a2
frac32 a3
frac32 a4
frac32 a5
frac32 a6
frac32 a7
frac32 a8
frac32 b1
frac32 b2
frac32 b3
frac32 b4
frac32 b5
frac32 b6
frac32 b7
frac32 b8
frac32 c1
frac32 c2
frac32 c3
frac32 c4
frac32 c5
frac32 c6
frac32 c7
frac32 c8
frac32 d1
frac32 d2
frac32 d3
frac32 d4
frac32 d5
frac32 d6
frac32 d7
frac32 d8
Parameters
bool32.tgl hold
Attributes
spinner cc
static const uint32_t LENGTHPOW = (5);
static const uint32_t LENGTH = 32;
static const uint32_t LENGTHMASK = 31;
int8_t *ccv;
bool strig;
bool ltrig;
int i;
uint8_t _note;
bool _gate[32];
bool hold;
int NT;
uint8_t nt;
bool act;static int8_t _array[LENGTH] __attribute__((section(".sdram")));
ccv = &_array[0];if ((inlet_load > 0) && !ltrig) {
ltrig = 1;
FIL FileObject;
FRESULT err;
UINT bytes_read;
codec_clearbuffer();
err = f_open(&FileObject, inlet_filename, FA_READ | FA_OPEN_EXISTING);
if (err != FR_OK) {
report_fatfs_error(err, inlet_filename);
return;
}
int rem_sz = sizeof(*ccv) * LENGTH;
int offset = 0;
while (rem_sz > 0) {
if (rem_sz > sizeof(fbuff)) {
err = f_read(&FileObject, fbuff, sizeof(fbuff), &bytes_read);
if (bytes_read == 0)
break;
memcpy((char *)(&ccv[0]) + offset, (char *)fbuff, bytes_read);
rem_sz -= bytes_read;
offset += bytes_read;
} else {
err = f_read(&FileObject, fbuff, rem_sz, &bytes_read);
memcpy((char *)(&ccv[0]) + offset, (char *)fbuff, bytes_read);
rem_sz = 0;
}
}
if (err != FR_OK) {
report_fatfs_error(err, inlet_filename);
return;
};
err = f_close(&FileObject);
if (err != FR_OK) {
report_fatfs_error(err, inlet_filename);
return;
};
} else if (!(inlet_load > 0))
ltrig = 0;
if ((inlet_save > 0) && !strig) {
strig = 1;
FIL FileObject;
FRESULT err;
UINT bytes_written;
codec_clearbuffer();
err = f_open(&FileObject, inlet_filename, FA_WRITE | FA_CREATE_ALWAYS);
if (err != FR_OK) {
report_fatfs_error(err, inlet_filename);
return;
}
int rem_sz = sizeof(*ccv) * LENGTH;
int offset = 0;
while (rem_sz > 0) {
if (rem_sz > sizeof(fbuff)) {
memcpy((char *)fbuff, (char *)(&ccv[0]) + offset, sizeof(fbuff));
err = f_write(&FileObject, fbuff, sizeof(fbuff), &bytes_written);
rem_sz -= sizeof(fbuff);
offset += sizeof(fbuff);
} else {
memcpy((char *)fbuff, (char *)(&ccv[0]) + offset, rem_sz);
err = f_write(&FileObject, fbuff, rem_sz, &bytes_written);
rem_sz = 0;
}
}
if (err != FR_OK)
report_fatfs_error(err, inlet_filename);
err = f_close(&FileObject);
if (err != FR_OK)
report_fatfs_error(err, inlet_filename);
} else if (!(inlet_save > 0))
strig = 0;
outlet_a1 = ccv[0] << 20;
outlet_a2 = ccv[1] << 20;
outlet_a3 = ccv[2] << 20;
outlet_a4 = ccv[3] << 20;
outlet_a5 = ccv[4] << 20;
outlet_a6 = ccv[5] << 20;
outlet_a7 = ccv[6] << 20;
outlet_a8 = ccv[7] << 20;
outlet_b1 = ccv[8] << 20;
outlet_b2 = ccv[9] << 20;
outlet_b3 = ccv[10] << 20;
outlet_b4 = ccv[11] << 20;
outlet_b5 = ccv[12] << 20;
outlet_b6 = ccv[13] << 20;
outlet_b7 = ccv[14] << 20;
outlet_b8 = ccv[15] << 20;
outlet_c1 = ccv[16] << 20;
outlet_c2 = ccv[17] << 20;
outlet_c3 = ccv[18] << 20;
outlet_c4 = ccv[19] << 20;
outlet_c5 = ccv[20] << 20;
outlet_c6 = ccv[21] << 20;
outlet_c7 = ccv[22] << 20;
outlet_c8 = ccv[23] << 20;
outlet_d1 = ccv[24] << 20;
outlet_d2 = ccv[25] << 20;
outlet_d3 = ccv[26] << 20;
outlet_d4 = ccv[27] << 20;
outlet_d5 = ccv[28] << 20;
outlet_d6 = ccv[29] << 20;
outlet_d7 = ccv[30] << 20;
outlet_d8 = ccv[31] << 20;
outlet_layer = _note;
hold = param_hold;
act = inlet_active;if (act > 0) {
if ((status == MIDI_NOTE_ON + attr_midichannel) && (data2)) {
nt = data1;
NT = data1 - 36;
_note = (NT) / 12;
NT = NT - _note * 12;
_gate[NT] = 1;
} else if (((status == MIDI_NOTE_ON + attr_midichannel) && (!data2)) ||
(status == MIDI_NOTE_OFF + attr_midichannel)) {
if (nt == data1) {
NT = data1 - 36;
NT = NT - NT / 12 * 12;
_gate[NT] = 0;
}
} else if ((status == attr_midichannel + MIDI_CONTROL_CHANGE) &&
(data1 == MIDI_C_ALL_NOTES_OFF)) {
for (i = 0; i < 32; i++) {
_gate[i] = 0;
}
}
for (i = 0; i < 8; i++) {
if (_gate[i] > 0) {
if ((status == attr_midichannel + MIDI_CONTROL_CHANGE) &&
(data1 == attr_cc + i * 3) && ((!(data2 == 0)) || (!hold))) {
ccv[i + (_note << 3)] = data2;
}
}
}
}
