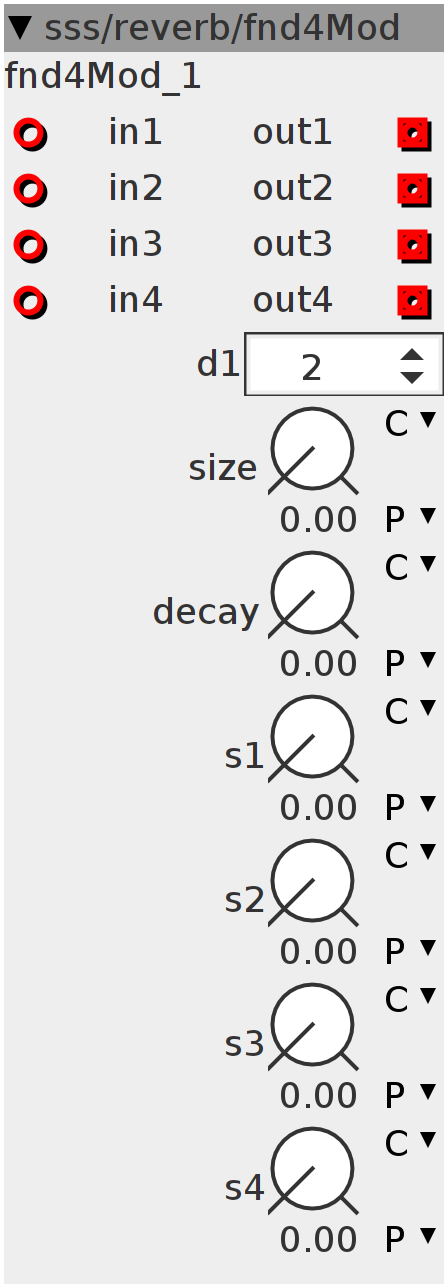

fnd4Mod
Feedback delay network with 4 delay lines. High quality 32bit.
Inlets
frac32buffer in1
frac32buffer in2
frac32buffer in3
frac32buffer in4
Outlets
frac32buffer out1
frac32buffer out2
frac32buffer out3
frac32buffer out4
Parameters
frac32.u.map size
frac32.u.map decay
frac32.u.map s1
frac32.u.map s2
frac32.u.map s3
frac32.u.map s4
Attributes
spinner d1
int32_t d1d[attr_d1];
int32_t d2d[attr_d1 >> 1];
int32_t d3d[attr_d1 >> 2];
int32_t d4d[attr_d1 >> 3];
int32_t D[4];
uint32_t d1p;
uint32_t d2p;
uint32_t d3p;
uint32_t d4p;int i;
for (i = 0; i < attr_d1; i++)
d1d[i] = 0;
for (i = 0; i < (attr_d1 >> 1); i++)
d2d[i] = 0;
for (i = 0; i < (attr_d1 >> 2); i++)
d3d[i] = 0;
for (i = 0; i < (attr_d1 >> 3); i++)
d4d[i] = 0;
d1p = 0;
d2p = 0;
d3p = 0;
d4p = 0;int32_t g2 = 755299123 + param_decay;
uint32_t size = ___SMMUL(attr_d1 - 1 << 3, param_size << 2) + 1;
D[0] = ___SMMUL(size - 1 << 3, param_s1 << 2) + 1;
D[1] = ___SMMUL(size - 1 << 2, param_s2 << 2) + 1;
D[2] = ___SMMUL(size - 1 << 1, param_s3 << 2) + 1;
D[3] = ___SMMUL(size - 1, param_s4 << 2) + 1;int32_t i1 = inlet_in1 + d1d[d1p];
int32_t i2 = inlet_in2 + d2d[d2p];
int32_t i3 = inlet_in3 + d3d[d3p];
int32_t i4 = inlet_in4 + d4d[d4p];
int32_t t1 = i2 + i3;
int32_t t2 = -i1 - i4;
int32_t t3 = i1 - i4;
int32_t t4 = i2 - i3;
int32_t o1 = ___SMMLA(t1, g2, t1 >> 1);
int32_t o2 = ___SMMLA(t2, g2, t2 >> 1);
int32_t o3 = ___SMMLA(t3, g2, t3 >> 1);
int32_t o4 = ___SMMLA(t4, g2, t4 >> 1);
d1d[d1p] = o1;
d2d[d2p] = o2;
d3d[d3p] = o3;
d4d[d4p] = o4;
d1p++;
d2p++;
d3p++;
d4p++;
if (d1p >= D[0])
d1p = 0;
if (d2p >= D[1])
d2p = 0;
if (d3p >= D[2])
d3p = 0;
if (d4p >= D[3])
d4p = 0;
outlet_out1 = o1;
outlet_out2 = o2;
outlet_out3 = o3;
outlet_out4 = o4;
