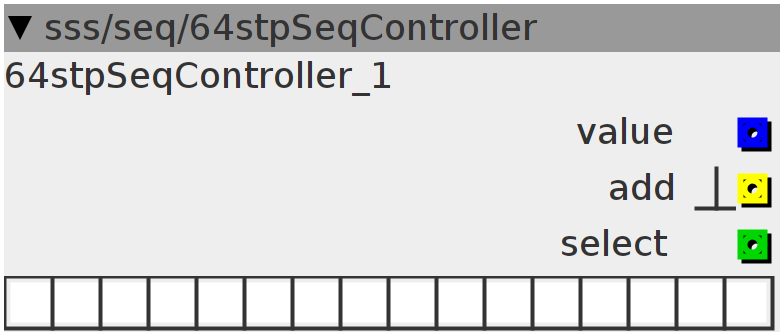

64stpSeqController
controller for the 64step, 4 channel, preset sequencer. connect outputs to corresponding inputs. Use "selectbar" on the sequencer module to select bar 2,3 and 4 for counts longer then 16.
Inlets
None
Outlets
frac32 value
bool32.pulse add
int32 select
Parameters
bin16 b16
Declaration
int32_t prev;
int trig;
int32_t mem;
int32_t value;
Control Rate
if (!(prev == param_b16))
;
{
trig = 1;
mem = param_b16 - prev;
value = mem > 0 ? (1 << 27) : 0;
}
if (prev == param_b16) {
trig = 0;
}
mem = mem > 0 ? mem : -mem;
if (mem == 1) {
mem = 0;
}
if (mem == 2) {
mem = 1;
}
if (mem == 4) {
mem = 2;
}
if (mem == 8) {
mem = 3;
}
if (mem == 16) {
mem = 4;
}
if (mem == 32) {
mem = 5;
}
if (mem == 64) {
mem = 6;
}
if (mem == 128) {
mem = 7;
}
if (mem == 256) {
mem = 8;
}
if (mem == 512) {
mem = 9;
}
if (mem == 1024) {
mem = 10;
}
if (mem == 2048) {
mem = 11;
}
if (mem == 4096) {
mem = 12;
}
if (mem == 8192) {
mem = 13;
}
if (mem == 16384) {
mem = 14;
}
if (mem == 32768) {
mem = 15;
}
outlet_value = value;
outlet_select = mem;
outlet_add = trig;
prev = param_b16;
