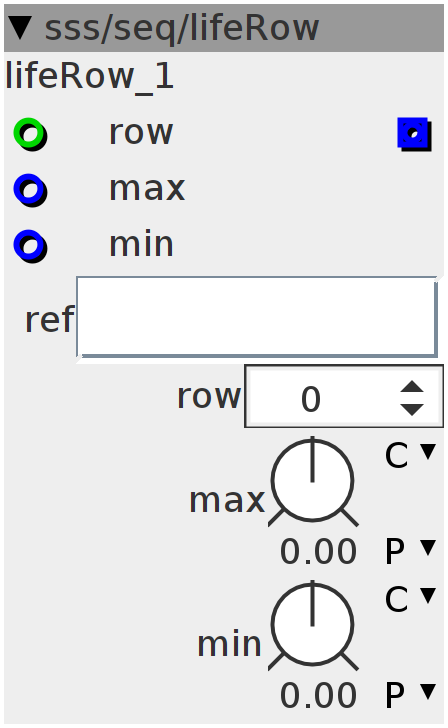

lifeRow
This module reads an entire row as a 32-bit value, which can be scaled with the min/max knobs between a minimum and maximum value.
Inlets
frac32 max
frac32 min
int32 row
Outlets
frac32 out
Parameters
int32 row
frac32.s.map max
frac32.s.map min
Attributes
objref ref
int32_t out =
(uint32_t)(attr_ref.param[(param_row + inlet_row) & 15] >> 5) + (1 << 26);
int32_t max = __SSAT(param_max + inlet_max, 27);
int32_t min = __SSAT(param_min + inlet_min, 27);
int32_t width = max - min;
outlet_out = ___SMMUL(out, width) + min;
