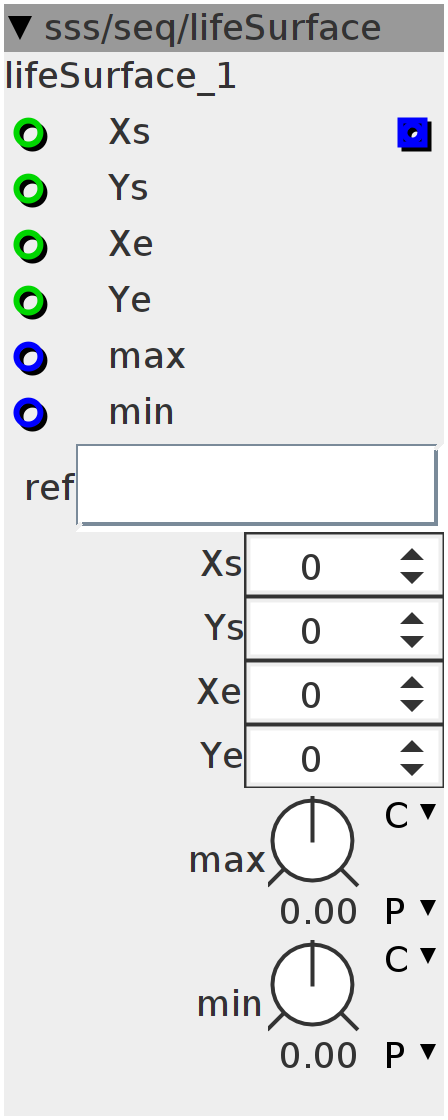

lifeSurface
This module reads out a 2D surface of the game of life module The outcome is a scaled based upon how many coordinates are within the surface. Each step has 4 possible values, 0,1,2,3, and all steps are added together, scaled to the total amount of steps*3 (*3 because each step has 3 as its highest value). Using the min/max parameters, you can set the minimum and maximum output values.
Inlets
int32 Xs
int32 Ys
int32 Xe
int32 Ye
frac32 max
frac32 min
Outlets
frac32 CV
Parameters
int32 Xs
int32 Ys
int32 Xe
int32 Ye
frac32.s.map max
frac32.s.map min
Attributes
objref ref
int i;
int j;int Xs = (param_Xs + inlet_Xs) & 15;
int Xe = ((param_Xe + inlet_Xe) - Xs) & 15;
int Ys = (param_Ys + inlet_Ys) & 15;
int Ye = ((param_Ye + inlet_Ye) - Ys) & 15;
int size = Xe * Ye * 3;
int32_t temp = 0;
for (i = Xs; i < (Xe + Xs); i++) {
for (j = Ys; j < (Ye + Ys); j++) {
temp += attr_ref.array[i][j];
}
}
int32_t max = __SSAT(param_max + inlet_max, 27);
int32_t min = __SSAT(param_min + inlet_min, 27);
int32_t width = max - min;
outlet_CV = ___SMMUL(((temp << 16) / size) << 14, width << 2) + min;
