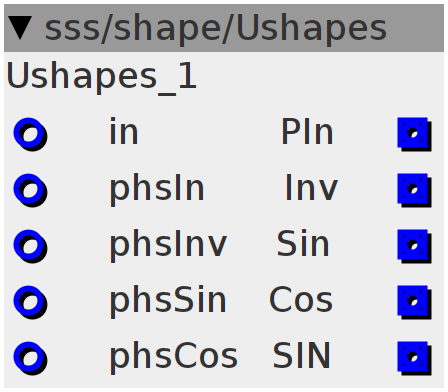

Ushapes
turns unipolar phase into other shapes. Each outputs has it's own phase-offset input, except SIN, which is a direct conversion from the phase input.
Inlets
frac32 in
frac32 phsIn
frac32 phsInv
frac32 phsSin
frac32 phsCos
Outlets
frac32 PIn
frac32 Inv
frac32 Sin
frac32 Cos
frac32 SIN
int32_t sine;outlet_PIn = (inlet_in + inlet_phsIn) & ((1 << 27) - 1);
outlet_Inv = ((1 << 27) - inlet_in + inlet_phsInv) & ((1 << 27) - 1);
SINE2TINTERP((inlet_in + inlet_phsSin) << 5, sine)
outlet_Sin = (sine >> 5) + (1 << 26);
SINE2TINTERP((inlet_in + inlet_phsCos + (1 << 25)) << 5, sine)
outlet_Cos = (sine >> 5) + (1 << 26);
SINE2TINTERP((inlet_in) << 5, sine)
outlet_SIN = (sine >> 5) + (1 << 26);
