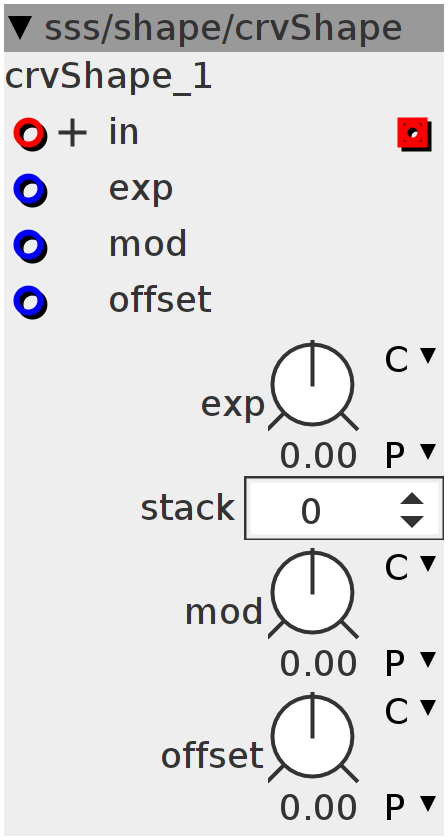

crvShape
Curve-shaper for phase distortion. Curve is created by the exp and mod controls. negative exp=exponential positive exp=inverse exponential negative mod= inverse s-curve positive mod= s-curve. mod is actually a modulation of the exp input by the signal itself, fading from exponential to inverse exponential (or the other way around) and added to the exp-control. SO: When you want an (inverse) exponential curve, only use the exp-control When you want a S-curve, first dial in the mod-control and use the exp-control to offset the center of the s-curve. offset adds an offset to the output, eg. to offset the phase.
Inlets
frac32buffer.positive in
frac32 exp
frac32 mod
frac32 offset
Outlets
frac32buffer out
Parameters
frac32.s.map exp
frac32.s.map mod
frac32.s.map offset
int32 stack
int i;
int32_t expo[32];
int dir;
int32_t pEXP;
int32_t sEXP;
int32_t pMOD;
int32_t sMOD;
int32_t sOFS;
int32_t pOFS;int32_t EXP = param_exp + inlet_exp;
int32_t MOD = param_mod + inlet_mod;
int32_t OFS = param_offset + inlet_offset;
sEXP = (EXP - pEXP) >> 4;
int32_t S1 = pEXP;
pEXP = EXP;
sMOD = (MOD - pMOD) >> 4;
int32_t S2 = pMOD;
pMOD = MOD;
sOFS = (OFS - pOFS) >> 4;
int32_t S3 = pOFS;
pOFS = OFS;S1 += sEXP;
S2 += sMOD;
S3 += sOFS;
int32_t IN = __SSAT(inlet_in, 28);
int32_t inexpo = __SSAT(S1 + ___SMMUL((IN - (1 << 26)) << 3, S2 << 3), 28);
dir = inexpo > 0 ? 1 : -1;
inexpo = inexpo > 0 ? inexpo : -inexpo;
int32_t inv = (1 << 27) - inexpo;
int dar;
dar = inlet_in > 0 ? 1 : -1;
int32_t pos = IN;
pos = pos > 0 ? pos : -pos;
if (dir > 0) {
expo[0] = ___SMMUL(pos << 3, (inv + ___SMMUL(inexpo << 3, pos << 2)) << 2);
}
if (dir < 0) {
expo[0] =
___SMMUL(((1 << 27) - pos) << 3,
(inv + ___SMMUL(inexpo << 3, ((1 << 27) - pos) << 2)) << 2);
}
for (i = 1; i <= param_stack; i++)
expo[i] = ___SMMUL(expo[i - 1] << 3,
(inv + ___SMMUL(inexpo << 3, expo[i - 1] << 2)) << 2);
if (dir > 0) {
outlet_out = (expo[param_stack] * dar) + S3;
}
if (dir < 0) {
outlet_out = (((1 << 27) - expo[param_stack]) * dar) + S3;
}
