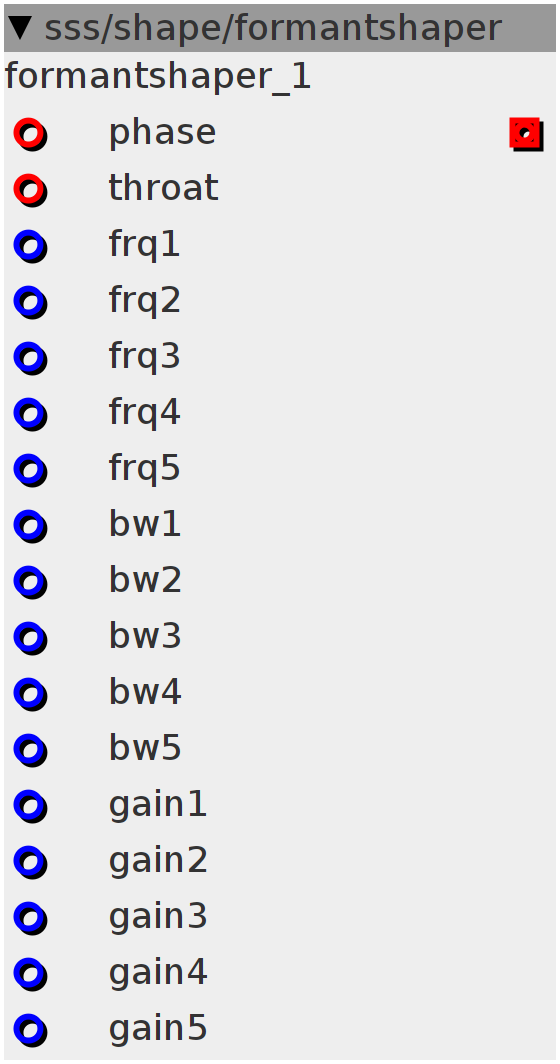

formantshaper
Formant shaper. This is an extra shaper that you can use on the oscillator output to force more exitation of the formants. Connect the phase of the oscillator to the phase input. (or a phasor oscillator running at same speed as the "throat" oscillator if you don't have both the signals present. I advice to use my "morphor" oscillator which has an extra phase output) Connect a shaped signal to the "throat" input. Using a "fatbasterd" (distortion folder) before the throat input helps creating pulsed vocals and adding harmonics for the filter.
Inlets
frac32 frq1
frac32 frq2
frac32 frq3
frac32 frq4
frac32 frq5
frac32 bw1
frac32 bw2
frac32 bw3
frac32 bw4
frac32 bw5
frac32 gain1
frac32 gain2
frac32 gain3
frac32 gain4
frac32 gain5
frac32buffer phase
frac32buffer throat
Outlets
frac32buffer out
uint32_t phase;
uint32_t Phase[5];
float32_t frq[5];
float32_t BW[5];
float32_t dBgain[5];
int32_t Sine[5];
int i;
int trig;
int32_t throat;frq[0] = ((float)inlet_frq1) / (1 << 16);
frq[1] = ((float)inlet_frq2) / (1 << 16);
frq[2] = ((float)inlet_frq3) / (1 << 16);
frq[3] = ((float)inlet_frq4) / (1 << 16);
frq[4] = ((float)inlet_frq5) / (1 << 16);
dBgain[0] = ((float)inlet_gain1) / (1 << 21);
dBgain[1] = ((float)inlet_gain2) / (1 << 21);
dBgain[2] = ((float)inlet_gain3) / (1 << 21);
dBgain[3] = ((float)inlet_gain4) / (1 << 21);
dBgain[4] = ((float)inlet_gain5) / (1 << 21);
BW[0] = ((float)inlet_bw1) / (1 << 16);
BW[1] = ((float)inlet_bw2) / (1 << 16);
BW[2] = ((float)inlet_bw3) / (1 << 16);
BW[3] = ((float)inlet_bw4) / (1 << 16);
BW[4] = ((float)inlet_bw5) / (1 << 16);
for (i = 0; i < 5; i++) {
dBgain[i] = powf(0.5, -dBgain[i] / 6);
}phase = inlet_phase;
throat = inlet_throat;
int32_t wave = 0;
for (i = 0; i < 5; i++) {
Phase[i] += (frq[i] / (60000 >> 5)) * (1 << 20);
Phase[i] = Phase[i] & ((1 << 27) - 1);
if ((phase > (1 << 26)) && (!(trig)))
// if((throat>(0)) &&(!(trig)))
{
Phase[i] = 0;
trig = 1;
} else if (phase < (1 << 26))
// else if (throat<(0))
{
trig = 0;
}
uint32_t Ephase[5];
Ephase[i] = ___SMMUL(Phase[i] << 3, Phase[i] << 2);
// Ephase[i]=___SMMUL(Ephase[i]<<3,Ephase[i]<<2);
SINE2TINTERP(Phase[i] << 5, Sine[i])
wave += ___SMMUL(throat << 1, (Sine[i]));
}
int32_t sone;
SINE2TINTERP(wave << 1, sone)
outlet_out = sone >> 5;
// outlet_sine=sine>>5;
