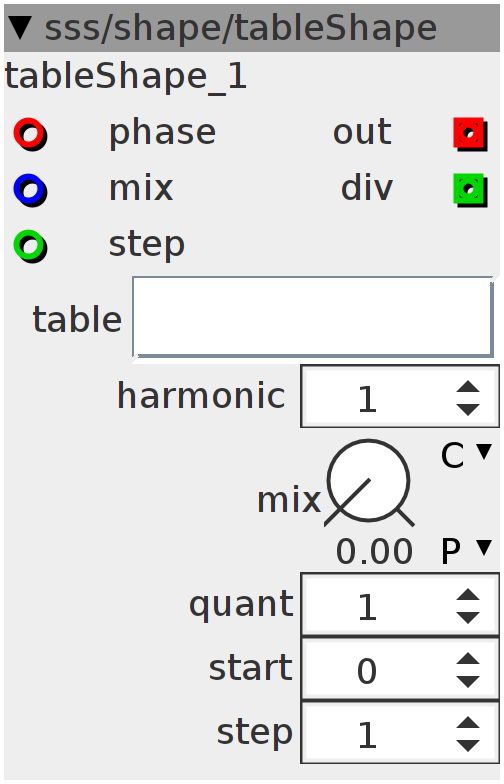

tableShape
Interpolated wavetable shaper. Turns a phase (phazor oscillator, positive non-bandlimited saw-wave) into a wave using a morphable wavetable. "mix" morphs through the available waveforms in the wavetable "start" is the "base" waveform, where it will start when "mix" is at minimum or maximum. "step" is the stepsize for selecting from the waveforms while morphing with the "mix". Last step is always the same as the first step, so you could use a saw to morph through the waveforms continuously in one direction. "harmonic" multiplies the incoming phase to generate higher harmonic waveforms based on root phase. "quant" sets the amount of waveforms that the mix will morph through. At 64, it will morph back to the "base" waveform. This module pairs very VERY well with the other shape modules for lots of tonal control!
Inlets
frac32buffer delay time (fraction of total delayline size)
frac32 mix
int32 step
Outlets
frac32buffer wave
int32 div
Parameters
int32 harmonic
int32 quant
int32 start
int32 step
frac32.u.map mix
Attributes
objref table
int32_t mix;
int32_t tablemix(int32_t WaveA, int32_t WaveB, int32_t Mix) {
mix = ___SMMUL(((1 << 27) - Mix) << 3, WaveA << 2) +
___SMMUL(Mix << 3, WaveB << 2);
}
int32_t F;
int32_t MX(int32_t T) {
T = T > 0 ? T : -T;
T = T & ((1 << 28) - 1);
F = T > (1 << 27) ? (1 << 28) - T : T;
}
int32_t MIX1a;
int32_t MIX1;
int32_t W[2];
int32_t out1;
int32_t out2;
int32_t smooth1;
int32_t M1step;
int32_t M1prv;
int i;int32_t MiX1 = inlet_mix + param_mix;
// MX(MiX1);
// MiX1=F;
MiX1 = MiX1 & ((1 << 27) - 1);
int32_t quant = param_quant + 1;
float32_t step =
((float32_t)(attr_table.Waveforms)) / (quant) * (inlet_step + param_step);
outlet_div = quant;
MIX1a = MiX1;
W[0] = ((MIX1a >> 4) * quant) >> 23;
MIX1a = (MIX1a - (W[0] << 27) / quant) * quant;
W[1] = W[0] * step + step + param_start;
W[0] = W[0] * step + param_start;
for (i = 0; i < 2; i++) {
W[i] = (W[i] - (W[i] / attr_table.Waveforms) * attr_table.Waveforms);
W[i] = W[i] < 0 ? W[i] + attr_table.Waveforms : W[i];
W[i] = W[i] * attr_table.LENGTH;
}uint32_t phase = inlet_phase * param_harmonic << 5;
uint32_t p1 = (phase >> 32 - attr_table.LENGTHPOW);
uint32_t Mit = ((phase << attr_table.LENGTHPOW) >> 2) & 0x3FFFFFFF;
int32_t out1;
int32_t out2;
out1 = ___SMMUL(attr_table.array[p1 + W[0]] << 2, (1 << 30) - Mit);
out1 += ___SMMUL(
attr_table.array[((p1 + 1) & attr_table.LENGTHMASK) + W[0]] << 2, Mit);
out2 = ___SMMUL(attr_table.array[p1 + W[1]] << 2, (1 << 30) - Mit);
out2 += ___SMMUL(
attr_table.array[((p1 + 1) & attr_table.LENGTHMASK) + W[1]] << 2, Mit);
tablemix(out1, out2, MIX1a);
outlet_out = mix;
