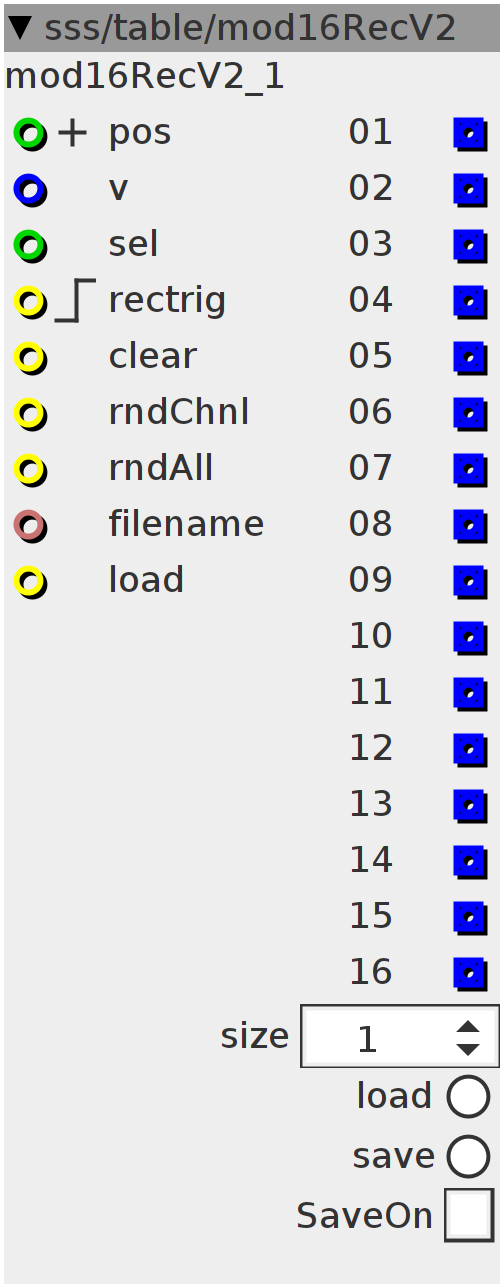

mod16RecV2
16 output modulation recorder uses single inputs for: -counting position for all 16 recorders/readers -value record and modulation select when rectrig is high, it records the value on input_v into the selected modulation sequencer. to randomise the selected channel, press "rndChnl" to randomise all the channels together, press "rndAll" recorded patterns can be saved an later recalled, just connect a string/indexed, provide a name and hit "save" to save your patterns.
Inlets
bool32 clear
bool32 rndChnl
bool32 rndAll
bool32 load
charptr32 filename
int32.positive index (integer, not fraction)
frac32 value
int32 sel
bool32.rising trigger
Outlets
frac32 01
frac32 02
frac32 03
frac32 04
frac32 05
frac32 06
frac32 07
frac32 08
frac32 09
frac32 10
frac32 11
frac32 12
frac32 13
frac32 14
frac32 15
frac32 16
Parameters
bool32.tgl SaveOn
bool32.mom load
bool32.mom save
Attributes
spinner size
static const uint32_t LENGTH = attr_size;
int32_t *array;
int i;
int ntrig;
int ctrig;
int rtrig;
int Rtrig;
int mtrig;
int ltrig;
int strig;
int load;int ntrig = 0;
static int32_t _array[LENGTH << 4] __attribute__((section(".sdram")));
array = &_array[0];int load = param_load + inlet_load;
if ((param_save > 0) && !strig && param_SaveOn) {
strig = 1;
FIL FileObject;
FRESULT err;
UINT bytes_written;
err = f_open(&FileObject, inlet_filename, FA_WRITE | FA_CREATE_ALWAYS);
if (err != FR_OK) {
report_fatfs_error(err, "inlet_filename");
return;
}
int rem_sz = sizeof(*array) * (LENGTH << 4);
int offset = 0;
while (rem_sz > 0) {
if (rem_sz > sizeof(fbuff)) {
memcpy((char *)fbuff, (char *)(&array[0]) + offset, sizeof(fbuff));
err = f_write(&FileObject, fbuff, sizeof(fbuff), &bytes_written);
rem_sz -= sizeof(fbuff);
offset += sizeof(fbuff);
} else {
memcpy((char *)fbuff, (char *)(&array[0]) + offset, rem_sz);
err = f_write(&FileObject, fbuff, rem_sz, &bytes_written);
rem_sz = 0;
}
}
if (err != FR_OK)
report_fatfs_error(err, "inlet_filename");
err = f_close(&FileObject);
if (err != FR_OK)
report_fatfs_error(err, "inlet_filename");
} else if (!(param_save > 0)) {
strig = 0;
}
if ((load > 0) && !ltrig) {
ltrig = 1;
FIL FileObject;
FRESULT err;
UINT bytes_read;
err = f_open(&FileObject, inlet_filename, FA_READ | FA_OPEN_EXISTING);
if (err != FR_OK) {
report_fatfs_error(err, inlet_filename);
return;
}
int rem_sz = sizeof(*array) * (LENGTH << 4);
int offset = 0;
while (rem_sz > 0) {
if (rem_sz > sizeof(fbuff)) {
err = f_read(&FileObject, fbuff, sizeof(fbuff), &bytes_read);
if (bytes_read == 0)
break;
memcpy((char *)(&array[0]) + offset, (char *)fbuff, bytes_read);
rem_sz -= bytes_read;
offset += bytes_read;
} else {
err = f_read(&FileObject, fbuff, rem_sz, &bytes_read);
memcpy((char *)(&array[0]) + offset, (char *)fbuff, bytes_read);
rem_sz = 0;
}
}
if (err != FR_OK) {
report_fatfs_error(err, inlet_filename);
return;
};
err = f_close(&FileObject);
if (err != FR_OK) {
report_fatfs_error(err, inlet_filename);
return;
};
} else if (!(load > 0)) {
ltrig = 0;
}
int32_t write;
write = inlet_pos;
write = write - (write / LENGTH) * LENGTH;
int32_t sel = inlet_sel & 15;
if ((inlet_rectrig > 0) && !ntrig) {
ntrig = 1;
array[write + sel * LENGTH] = __SSAT(inlet_v, 29);
}
if (!(inlet_rectrig > 0))
ntrig = 0;
if ((inlet_clear > 0) && !ctrig) {
ctrig = 1;
for (i = 0; i < (LENGTH << 4); i++) {
array[i] = 0;
}
} else if (inlet_clear <= 0) {
ctrig = 0;
}
if ((inlet_rndAll > 0) && !rtrig) {
rtrig = 1;
for (i = 0; i < (LENGTH << 4); i++) {
array[i] = (int32_t)(GenerateRandomNumber() >> 5);
}
} else if (inlet_rndAll <= 0) {
rtrig = 0;
}
if ((inlet_rndChnl > 0) && !Rtrig) {
Rtrig = 1;
for (i = 0; i < LENGTH; i++) {
array[i + sel * LENGTH] = (int32_t)(GenerateRandomNumber() >> 5);
}
} else if (inlet_rndChnl <= 0) {
Rtrig = 0;
}
outlet_01 = array[write];
outlet_02 = array[write + LENGTH];
outlet_03 = array[write + LENGTH * 2];
outlet_04 = array[write + LENGTH * 3];
outlet_05 = array[write + LENGTH * 4];
outlet_06 = array[write + LENGTH * 5];
outlet_07 = array[write + LENGTH * 6];
outlet_08 = array[write + LENGTH * 7];
outlet_09 = array[write + LENGTH * 8];
outlet_10 = array[write + LENGTH * 9];
outlet_11 = array[write + LENGTH * 10];
outlet_12 = array[write + LENGTH * 11];
outlet_13 = array[write + LENGTH * 12];
outlet_14 = array[write + LENGTH * 13];
outlet_15 = array[write + LENGTH * 14];
outlet_16 = array[write + LENGTH * 15];
