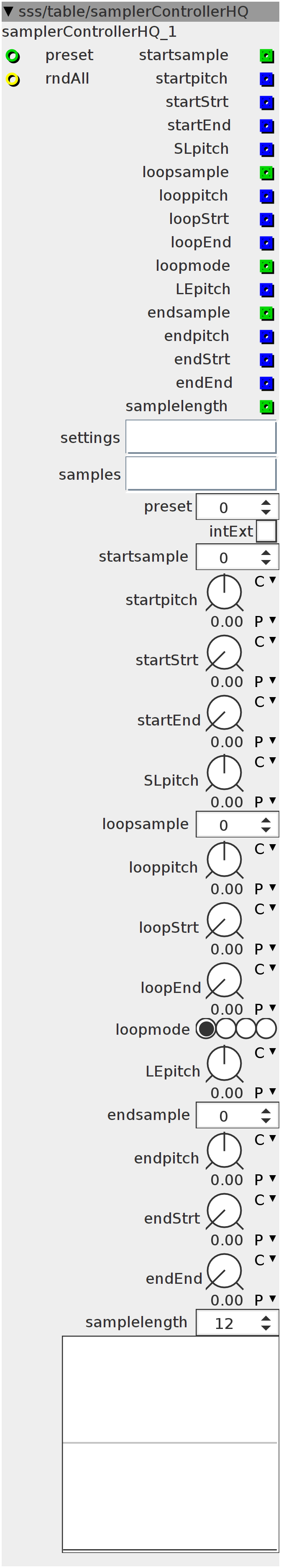

samplerControllerHQ

controller for the samplePlayerHQ. -Use a table-allocation and tablesave module to save your settings!! You'll need a tablesize of 4096!! -set the samplelength to the same size as you've set in the "tablecreator" patch when creating the table! -the first two presets cannot be randomised, these should be seen as your "fixed" settings. I'm using these for bassdrum (preset 0) and snare (preset 1). This way you can randomise the settings, while making sure the basic beat won't be changed too much. -connect the "preset" input to: -midi2cv module -sequencer -pattern generator -random generator -to manually edit a preset: -press "intExt" to use the selected preset and be able to hear it play (otherwise it will use the preset-input) -set the parameters for this preset and then go over to the next one
Author: Remco van der Most
License: BSD
Github: sss/table/samplerControllerHQ.axo

Inlets

int32 preset

bool32 rndAll

Outlets

int32 startsample

int32 loopsample

int32 loopmode

int32 endsample

int32 samplelength

frac32 startpitch

frac32 startStrt

frac32 startEnd

frac32 SLpitch

frac32 looppitch

frac32 loopStrt

frac32 loopEnd

frac32 LEpitch

frac32 endpitch

frac32 endStrt

frac32 endEnd

Parameters

frac32.u.map startStrt

frac32.u.map startEnd

frac32.u.map loopStrt

frac32.u.map loopEnd

frac32.u.map endStrt

frac32.u.map endEnd

int32.hradio loopmode

int32 preset

int32 startsample

int32 loopsample

int32 endsample

int32 samplelength

bool32.tgl intExt

frac32.s.map startpitch

frac32.s.map SLpitch

frac32.s.map looppitch

frac32.s.map LEpitch

frac32.s.map endpitch

Attributes

objref settings

objref samples

Displays

int8array128.vbar sample

Declaration
int i;
int j;
int32_t sum[128];
int gtrig;
int generate;
int32_t prevSS;
int32_t prevLS;
int32_t prevES;
int prevpreset;
int sample;
int pos1;
int pos2;
int rtrig;
Control Rate
int32_t preset;
preset = param_preset << 4;

if (!(prevpreset == preset)) {
  PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_startsample],
                     attr_settings.array[preset], 0xFFFD);
  PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_startpitch],
                     attr_settings.array[preset + 1], 0xFFFD);
  PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_startStrt],
                     attr_settings.array[preset + 2], 0xFFFD);
  PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_startEnd],
                     attr_settings.array[preset + 3], 0xFFFD);
  PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_loopsample],
                     attr_settings.array[preset + 4], 0xFFFD);
  PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_looppitch],
                     attr_settings.array[preset + 5], 0xFFFD);
  PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_loopStrt],
                     attr_settings.array[preset + 6], 0xFFFD);
  PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_loopEnd],
                     attr_settings.array[preset + 7], 0xFFFD);
  PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_loopmode],
                     attr_settings.array[preset + 8], 0xFFFD);
  PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_samplelength],
                     attr_settings.array[preset + 9], 0xFFFD);
  PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_endsample],
                     attr_settings.array[preset + 10], 0xFFFD);
  PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_endpitch],
                     attr_settings.array[preset + 11], 0xFFFD);
  PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_endStrt],
                     attr_settings.array[preset + 12], 0xFFFD);
  PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_endEnd],
                     attr_settings.array[preset + 13], 0xFFFD);
  PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_SLpitch],
                     attr_settings.array[preset + 14], 0xFFFD);
  PExParameterChange(&parent->PExch[PARAM_INDEX_attr_legal_name_LEpitch],
                     attr_settings.array[preset + 15], 0xFFFD);
}

if (!(attr_settings.array[0] == param_startsample)) {
  attr_settings.array[preset] = param_startsample;
}
if (!(attr_settings.array[1 + preset] == param_startpitch)) {
  attr_settings.array[1 + preset] = param_startpitch;
}
if (!(attr_settings.array[2 + preset] == param_startStrt)) {
  attr_settings.array[2 + preset] = param_startStrt;
}
if (!(attr_settings.array[3 + preset] == param_startEnd)) {
  attr_settings.array[3 + preset] = param_startEnd;
}
if (!(attr_settings.array[4 + preset] == param_loopsample)) {
  attr_settings.array[4 + preset] = param_loopsample;
}
if (!(attr_settings.array[5 + preset] == param_looppitch)) {
  attr_settings.array[5 + preset] = param_looppitch;
}
if (!(attr_settings.array[6 + preset] == param_loopStrt)) {
  attr_settings.array[6 + preset] = param_loopStrt;
}
if (!(attr_settings.array[7 + preset] == param_loopEnd)) {
  attr_settings.array[7 + preset] = param_loopEnd;
}
if (!(attr_settings.array[8 + preset] == param_loopmode)) {
  attr_settings.array[8 + preset] = param_loopmode;
}
if (!(attr_settings.array[9 + preset] == param_samplelength)) {
  attr_settings.array[9 + preset] = param_samplelength;
}
if (!(attr_settings.array[10 + preset] == param_endsample)) {
  attr_settings.array[10 + preset] = param_endsample;
}
if (!(attr_settings.array[11 + preset] == param_endpitch)) {
  attr_settings.array[11 + preset] = param_endpitch;
}
if (!(attr_settings.array[12 + preset] == param_endStrt)) {
  attr_settings.array[12 + preset] = param_endStrt;
}
if (!(attr_settings.array[13 + preset] == param_endEnd)) {
  attr_settings.array[13 + preset] = param_endEnd;
}
if (!(attr_settings.array[14 + preset] == param_SLpitch)) {
  attr_settings.array[14 + preset] = param_SLpitch;
}
if (!(attr_settings.array[15 + preset] == param_LEpitch)) {
  attr_settings.array[15 + preset] = param_LEpitch;
}
int Preset;
if (param_intExt == 0) {
  Preset = inlet_preset << 4;
} else {
  Preset = param_preset << 4;
}

if ((inlet_rndAll > 0) && !rtrig) {
  rtrig = 1;
  for (i = 2; i < 128; i++) {
    int j = i << 4;
    attr_settings.array[j] =
        ___SMMUL((uint32_t)(GenerateRandomNumber() >> 1), 127);
    attr_settings.array[j + 1] =
        ___SMMUL((int32_t)(GenerateRandomNumber()), 1 << 27);
    attr_settings.array[j + 2] =
        ___SMMUL((uint32_t)(GenerateRandomNumber() >> 1), 1 << 27);
    attr_settings.array[j + 3] =
        ___SMMUL((uint32_t)(GenerateRandomNumber() >> 1), 1 << 27);
    attr_settings.array[j + 4] =
        ___SMMUL((uint32_t)(GenerateRandomNumber() >> 1), 127);
    attr_settings.array[j + 5] =
        ___SMMUL((int32_t)(GenerateRandomNumber()), 1 << 27);
    attr_settings.array[j + 6] =
        ___SMMUL((uint32_t)(GenerateRandomNumber() >> 1), 1 << 27);
    attr_settings.array[j + 7] =
        ___SMMUL((uint32_t)(GenerateRandomNumber() >> 1), 1 << 27);
    attr_settings.array[j + 8] =
        ___SMMUL((uint32_t)(GenerateRandomNumber() >> 1), 8);
    attr_settings.array[j + 9] = param_samplelength;
    attr_settings.array[j + 10] =
        ___SMMUL((uint32_t)(GenerateRandomNumber() >> 1), 127);
    attr_settings.array[j + 11] =
        ___SMMUL((int32_t)(GenerateRandomNumber()), 1 << 27);
    attr_settings.array[j + 12] =
        ___SMMUL((uint32_t)(GenerateRandomNumber() >> 1), 1 << 27);
    attr_settings.array[j + 13] =
        ___SMMUL((uint32_t)(GenerateRandomNumber() >> 1), 1 << 27);
    attr_settings.array[j + 14] =
        ___SMMUL((int32_t)(GenerateRandomNumber()), 1 << 27);
    attr_settings.array[j + 15] =
        ___SMMUL((int32_t)(GenerateRandomNumber()), 1 << 27);
  }
} else if (inlet_rndAll == 0) {
  rtrig = 0;
}

outlet_startsample = attr_settings.array[Preset];
outlet_startpitch = attr_settings.array[1 + Preset];
outlet_startStrt = attr_settings.array[2 + Preset];
outlet_startEnd = attr_settings.array[3 + Preset];
outlet_loopsample = attr_settings.array[4 + Preset];
outlet_looppitch = attr_settings.array[5 + Preset];
outlet_loopStrt = attr_settings.array[6 + Preset];
outlet_loopEnd = attr_settings.array[7 + Preset];
outlet_loopmode = attr_settings.array[8 + Preset];
outlet_samplelength = attr_settings.array[9 + Preset];
outlet_endsample = attr_settings.array[10 + Preset];
outlet_endpitch = attr_settings.array[11 + Preset];
outlet_endStrt = attr_settings.array[12 + Preset];
outlet_endEnd = attr_settings.array[13 + Preset];
outlet_SLpitch = attr_settings.array[14 + Preset];
outlet_LEpitch = attr_settings.array[15 + Preset];

int32_t samplelength = 1 << param_samplelength;
int32_t samplemask = 1 << (param_samplelength - 7);
int32_t totalcount = 128;
int32_t start = ___SMMUL(param_startStrt << 2, totalcount << 3);
int32_t stend = ___SMMUL(param_startEnd << 2, totalcount << 3);
int32_t enstart = ___SMMUL(param_endStrt << 2, totalcount << 3);
int32_t end = ___SMMUL(param_endEnd << 2, totalcount << 3);
int32_t loopstart = ___SMMUL(param_loopStrt << 2, totalcount << 3);
int32_t loopend = ___SMMUL(param_loopEnd << 2, totalcount << 3);
generate = 0;
if (!(param_startsample + start + stend == prevSS)) {
  sample = param_startsample;
  generate = 1;
  pos1 = start;
  pos2 = stend;
}
if (!(param_loopsample + loopstart + loopend == prevLS)) {
  sample = param_loopsample;
  generate = 1;
  pos1 = loopstart;
  pos2 = loopend;
}
if (!(param_endsample + enstart + end == prevES)) {
  sample = param_endsample;
  generate = 1;
  pos1 = enstart;
  pos2 = end;
}

if ((generate > 0) && !gtrig) {
  gtrig = 1;
  for (i = 0; i < 128; i++) {
    sum[i] = 0;
  }

  for (i = 0; i < 128; i++) {
    int32_t Sum = 0;
    for (j = 0; j < samplemask; j++) {
      int32_t temp =
          ((attr_samples.array[(j + i * samplemask) + sample * samplelength])
           << attr_samples.GAIN) >>
          12;
      int32_t tamp = temp;
      temp = temp > 0 ? temp : -temp;
      sum[i] = temp > Sum ? tamp : sum[i];
      Sum = temp > Sum ? temp : Sum;
    }
  }
  sum[pos1] = ((1 << 27) - 1) >> 8;
  sum[pos2] = -((1 << 27) - 1) >> 8;
} else if (generate == 0) {
  gtrig = 0;
}
for (i = 0; i < 128; i++) {
  disp_sample[i] = sum[i] >> 13;
}

prevSS = param_startsample + start + stend;
prevLS = param_loopsample + loopstart + loopend;
prevES = param_endsample + enstart + end;
prevpreset = preset;
