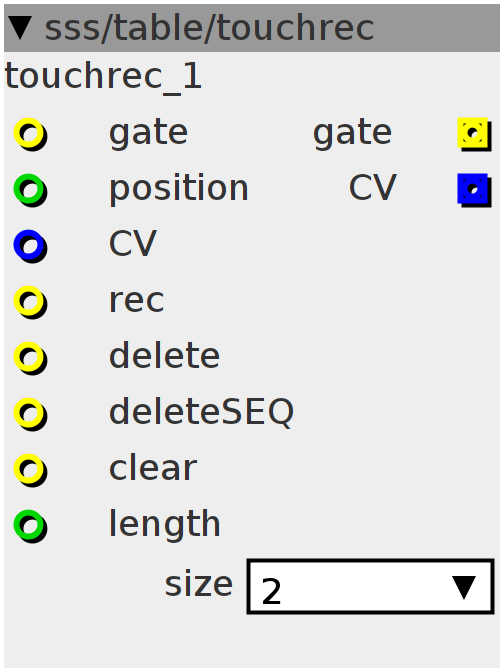

touchrec
(aftertouch) automation recorder -records only when "rec" is high. -when "gate" is high, records CV onto current position and send incoming CV directly to output -when "gate" goes low (recorded/live), holds last CV value. -when "delete" is high, deletes gate/CV at current position when "gate" goes high -when "deleteSEQ" is high, deletes the whole sequence when "gate" goes high -when "clear" goes high, deletes the whole sequence immidiatly -clear should be used as the main reset-control, resetting multiple automation modules to zero. -connect gate and CV inputs to the gate/touch-outputs of my "noteTV" module (midi folder) -delete and deleteSEQ should be used to only delete certain CV-positions or certain sequences.
Inlets
bool32 gate
bool32 rec
bool32 delete
bool32 deleteSEQ
bool32 clear
int32 position
int32 length
frac32 CV
Outlets
bool32 gate
frac32 CV
Attributes
combo size
static const uint32_t LENGTHPOW = attr_size;
static const uint32_t LENGTH = 1 << attr_size;
static const uint32_t LENGTHMASK = (1 << attr_size) - 1;
int16_t *array;
int ctrig;
int i;
int dtrig;
int32_t CV;
int get;
int32_t temp;static int16_t _array[LENGTH] __attribute__((section(".sdram")));
array = &_array[0];int32_t position;
position = inlet_position;
position = position - (position / inlet_length) * inlet_length;
int rec = inlet_gate && inlet_rec;
if (((inlet_deleteSEQ > 0) && (inlet_gate > 0)) && !dtrig) {
dtrig = 1;
for (i = 0; i < LENGTH; i++) {
array[i] = 0;
}
} else if (!(inlet_gate && inlet_deleteSEQ)) {
dtrig;
}
if ((inlet_delete > 0) && (inlet_gate > 0)) {
array[position] = 0;
}
int Delete = inlet_delete + inlet_deleteSEQ;
if ((inlet_clear > 0) && !ctrig) {
ctrig = 1;
for (i = 0; i < LENGTH; i++) {
array[i] = 0;
}
} else if (inlet_clear == 0) {
ctrig = 0;
}
if ((rec > 0) && !(Delete)) {
array[position & LENGTHMASK] = inlet_CV >> 12;
}
if (rec == 0) {
outlet_gate = array[position & LENGTHMASK] > 0 ? 1 : 0;
if (outlet_gate > 0) {
outlet_CV = array[(position)&LENGTHMASK] << 12;
CV = array[(position - 5) & LENGTHMASK] << 12;
} else {
outlet_CV = CV;
}
}
if ((inlet_gate > 0) && !(Delete)) {
outlet_CV = inlet_CV;
CV = inlet_CV;
outlet_gate = 1;
}
