2D wavetable morph oscillator. This oscillator uses the waveformGenerator module for generating it's waveforms. With the mix-inputs/knobs, you morph through the different waveforms. -quant sets the amount of waveforms that will be morphed through when mix goes from minimum to maximum. -start sets the start-position in the table when mix is at zero -step sets the step-size through the table, skipping in-between waveforms (wrapping back to 0 when above maximum available waveforms) For easy use, use my qtsLFO4 for controlling the mix. Connect the divide-output to the D-input (divide) of the qtsLFO4. When using saw/ramp, set it to bipolar, as the input is wrapped up/back down again when the input is below 0 or above 64 (turning it into a triangle-shape)

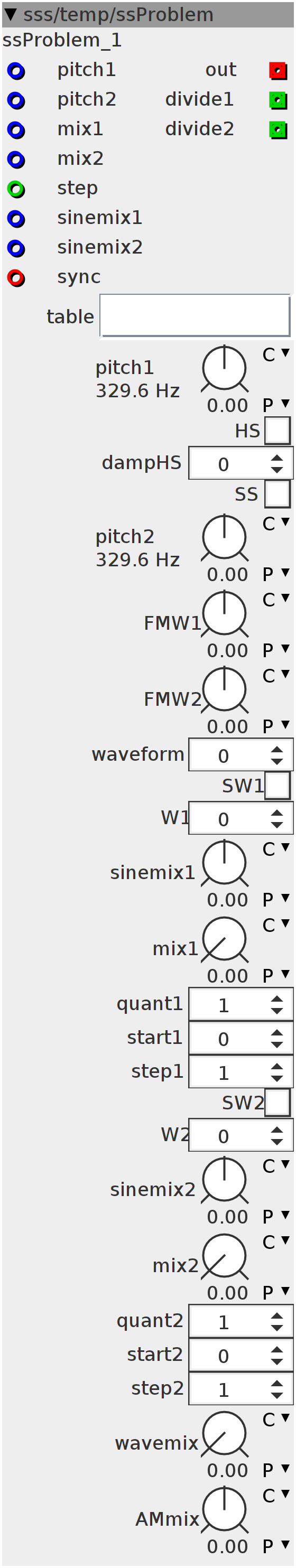

Inlets
frac32 pitch1
frac32 pitch2
frac32 mix1
frac32 mix2
frac32 sinemix1
frac32 sinemix2
int32 step
frac32buffer sync
Outlets
int32 divide1
int32 divide2
frac32buffer out
Parameters
int32 dampHS
int32 waveform
int32 W1
int32 quant1
int32 start1
int32 step1
int32 W2
int32 quant2
int32 start2
int32 step2
frac32.s.map FMW1
frac32.s.map FMW2
frac32.s.map sinemix1
frac32.s.map sinemix2
frac32.s.map AMmix
frac32.u.map mix1
frac32.u.map mix2
frac32.u.map wavemix
frac32.s.map.pitch pitch1
frac32.s.map.pitch pitch2
bool32.tgl HS
bool32.tgl SS
bool32.tgl SW1
bool32.tgl SW2
Attributes
objref table
int32_t i;
int strig;
int Strig;
int STrig;
uint32_t phase1;
uint32_t phase2;
int trig;
int dir;
uint32_t cnt;
int32_t MIX1a;
int32_t MIX1b;
int32_t MIX2a;
int32_t MIX2b;
int32_t smooth1;
int32_t smooth2;
uint32_t W[4];
uint32_t w[4];
int32_t F;
int32_t mix[2];
int32_t MX(int32_t T) {
T = T > 0 ? T : -T;
T = T & ((1 << 28) - 1);
F = T > (1 << 27) ? (1 << 28) - T : T;
}
int32_t tablemix(int32_t inst, int32_t WaveA, int32_t WaveB, int32_t Mix) {
mix[inst] = ___SMMUL(((1 << 27) - Mix) << 3, WaveA << 2) +
___SMMUL(Mix << 3, WaveB << 2);
}
int32_t M1step;
int32_t M1prv;
int32_t M2step;
int32_t M2prv;
int32_t val1;
int32_t val2;
int32_t val3;
int32_t prev1;
int32_t prev2;
int32_t PREV;
uint32_t Phase2;
int32_t offset;prev1 = 0;
prev2 = 0;
dir = 1;int32_t freq1;
MTOFEXTENDED(param_pitch1 + inlet_pitch1, freq1)
int32_t FMW1 = ___SMMUL(freq1 << 5, param_FMW1 << 3);
int32_t freq2;
MTOFEXTENDED(param_pitch1 + param_pitch2 + inlet_pitch1 + inlet_pitch2, freq2)
int32_t FMW2 = ___SMMUL(freq2 << 5, param_FMW2 << 3);
int32_t MiX1 = param_mix1 + inlet_mix1;
MX(MiX1);
MiX1 = F;
int32_t MiX2 = param_mix2 + inlet_mix2;
MX(MiX2);
MiX2 = F;
smooth1 += (MiX1 - smooth1) >> 4;
MiX1 = smooth1;
smooth2 += (MiX2 - smooth2) >> 4;
MiX2 = smooth2;
M1step = (MiX1 - M1prv) >> 4;
int32_t MIX1b = M1prv;
M1prv = MiX1;
M2step = (MiX2 - M2prv) >> 4;
int32_t MIX2b = M2prv;
M2prv = MiX2;
int32_t Q1 = param_W1 + param_waveform;
Q1 -= (Q1 / attr_table.Waveforms) * attr_table.Waveforms;
Q1 = Q1 * attr_table.LENGTH;
int32_t Q2 = param_W2 + param_waveform;
Q2 -= (Q2 / attr_table.Waveforms) * attr_table.Waveforms;
Q2 = Q2 * attr_table.LENGTH;
outlet_divide1 = param_quant1;
outlet_divide2 = param_quant2;
int32_t step1 = inlet_step + param_step1;
int32_t step2 = inlet_step + param_step2;
int32_t SiNe1 = __USAT(inlet_sinemix1 + param_sinemix1, 27);
int32_t step3 = SiNe1 - prev1 >> 4;
int32_t SINE1 = prev1;
prev1 = SiNe1;
int32_t SiNe2 = __USAT(inlet_sinemix2 + param_sinemix2, 27);
int32_t step4 = SiNe2 - prev2 >> 4;
int32_t SINE2 = prev2;
prev2 = SiNe2;
float32_t ratio = (float32_t)(attr_table.maxLvl) / 64;
MIX1a = MiX1;
MIX2a = MiX2;
W[0] = ((MIX1a >> 4) * param_quant1) >> 23;
MIX1a = (MIX1a - (W[0] << 27) / param_quant1) * param_quant1;
W[0] = W[0] * step1 + param_start1 + param_waveform;
W[1] = W[0] + step1;
W[2] = ((MIX2a >> 4) * param_quant2) >> 23;
MIX2a = (MIX2a - (W[2] << 27) / param_quant2) * param_quant2;
W[2] = W[2] * step2 + param_start2 + param_waveform;
W[3] = W[2] + step2;
for (i = 0; i < 4; i++) {
W[i] = (W[i] - (W[i] / attr_table.Waveforms) * attr_table.Waveforms);
W[i] = W[i] < 0 ? W[i] + attr_table.Waveforms : W[i];
W[i] = W[i] * attr_table.LENGTH;
}SINE1 += step3;
SINE2 += step4;
if ((inlet_sync > 0) && !strig) {
phase1 = 0;
phase2 = 0;
strig = 1;
} else if (inlet_sync < 0) {
strig = 0;
}
if ((phase1 < (1 << 31)) && !STrig) {
if (param_HS > 0) {
offset = (Phase2) - (0 << 31);
}
if (param_SS > 0) {
dir = -dir;
}
STrig = 1;
}
if ((phase1 > (1 << 31)) && STrig) {
if (param_SS > 0) {
dir = -dir;
}
STrig = 0;
}
val3 += offset - val3 >> param_dampHS;
phase1 += freq1 + ___SMMUL(FMW1 << 3, mix[1] << 2);
uint32_t p1 = (phase1 >> 32 - attr_table.LENGTHPOW);
uint32_t Mit = ((phase1 << attr_table.LENGTHPOW) >> 2) & 0x3FFFFFFF;
phase2 += (freq2 + ___SMMUL(FMW2 << 3, mix[0] << 2)) * dir;
Phase2 = phase2 - val3;
uint32_t p2 = (Phase2 >> 32 - attr_table.LENGTHPOW);
uint32_t MiT = ((Phase2 << attr_table.LENGTHPOW) >> 2) & 0x3FFFFFFF;
int32_t out1;
int32_t out2;
int32_t out3;
int32_t out4;
out1 = ___SMMUL(attr_table.array[p1 + W[0]] << 2, (1 << 30) - Mit);
out1 += ___SMMUL(
attr_table.array[((p1 + 1) & attr_table.LENGTHMASK) + W[0]] << 2, Mit);
out2 = ___SMMUL(attr_table.array[p1 + W[1]] << 2, (1 << 30) - Mit);
out2 += ___SMMUL(
attr_table.array[((p1 + 1) & attr_table.LENGTHMASK) + W[1]] << 2, Mit);
out3 = ___SMMUL(attr_table.array[p2 + W[2]] << 2, (1 << 30) - MiT);
out3 += ___SMMUL(
attr_table.array[((p2 + 1) & attr_table.LENGTHMASK) + W[2]] << 2, MiT);
out4 = ___SMMUL(attr_table.array[p2 + W[3]] << 2, (1 << 30) - MiT);
out4 += ___SMMUL(
attr_table.array[((p2 + 1) & attr_table.LENGTHMASK) + W[3]] << 2, MiT);
tablemix(0, out1, out2, MIX1a);
tablemix(1, out3, out4, MIX2a);
int32_t sine1;
int32_t sine2;
if (param_SW1 == 0) {
SINE2TINTERP(phase1, sine1);
sine1 = sine1 * ratio;
} else {
sine1 = attr_table.array[p1 + Q1] << 4;
}
if (param_SW2 == 0) {
SINE2TINTERP(Phase2, sine2);
sine2 = sine2 * ratio;
} else {
sine2 = attr_table.array[p2 + Q2] << 4;
}
mix[0] = ___SMMUL(mix[0] << 2, SINE1 << 2) + ___SMMUL(sine1, (1 << 27) - SINE1);
mix[1] = ___SMMUL(mix[1] << 2, SINE2 << 2) +
___SMMUL((sine2)*ratio, (1 << 27) - SINE2);
val1 += (mix[0] - val1) >> 9;
val2 += (mix[1] - val2) >> 9;
mix[0] = mix[0] - val1;
mix[1] = mix[1] - val2;
int32_t AM = ___SMMUL(mix[0] << 3, mix[1] << 3);
outlet_out = ___SMMUL(mix[0] << 3, (1 << 27) - param_wavemix << 3) +
___SMMUL(mix[1] << 3, param_wavemix << 3) +
___SMMUL(AM << 3, param_AMmix << 3);
