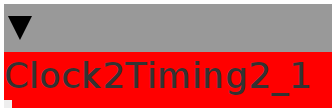

Clock2Timing2

Version2 of the clock2timing module This version should take care of some alliasing issues at steady tempo while still being fast in updating at tempo changes.
Author: Remco van der Most
License: BSD
Github: sss/timers/Clock2Timing2.axo

Inlets

frac32 startrate

bool32.rising trigger

int32 input

Outlets

frac32 pitch

frac32 freq

frac32 delay

int32 output

Declaration
int ntrig, cnt, tm[2][3], tw, sum;
int32_t DO;

int32_t LOG(int32_t in) {
  Float_t f;
  f.f = in;
  int32_t r1 = ((f.parts.exponent & 0x7F) - 18) << 24;
  int32_t r3 = logt[f.parts.mantissa >> 15] << 10;
  r1 += r3;
  return r1;
}

int32_t FTOM(int32_t freq) {
  int32_t ptch;
  int32_t mid;
  MTOFEXTENDED(0, mid);
  mid = LOG(mid);

  int32_t to;
  to = LOG(freq << 2);
  return ptch = (to - mid >> 1) * 3;
};
Init
DO = 1;
for (int i = 0; i < 3; i++) {
  tm[0][i] = (1 << 12);
  tm[1][i] = (1 << 12);
}
cnt = 1 << 12;
sum = 1 << 12;
Control Rate
/*get sample count and store it
 * at first two triggers it starts at a fixed rate to prevent division by zero
 * after this the rate is calculated based on two things:
 * 1. does the samplecount change more then 2? Then it's no alliasing problem
 * and the length is immediatly updating
 * 2. if the samplecount doesn't change or changes by 1 sample, it's probably
 * alliasing and an averaging algorithm is used. this algorithm takes the
 * average of the last 3 lengths TWICE, as even the first average might still
 * fluctuate the second averaging makes sure it's closest to it's actual rate
 */

if ((inlet_trig > 0) && !ntrig) {

  ntrig = 1;
  if (DO > 0) {
    int32_t sr;
    MTOF(inlet_startrate, sr)
    sr = ((uint64_t)1 << 34) / sr;
    for (int i = 0; i < 3; i++) {
      tm[0][i] = sr;
      tm[1][i] = sr;
      sum = sr;
    }
    DO += 1;
    if (DO > 1) {
      DO = 0;
    }
  } else {
    int dif = sum - cnt;
    dif = dif > 0 ? dif : -dif;
    if (dif > 2) {
      for (int i = 0; i < 3; i++) {
        tm[0][i] = cnt;
        tm[1][i] = cnt;
        sum = cnt;
      }
    } else {
      tw = (tw + 1) % 3;
      for (int i = 0; i < 2;
           i++) { // average twice, first the actual countlength input, then the
                  // averaged countlength
        tm[i][tw] = i > 0 ? sum : cnt;
        sum = (tm[i][0] + tm[i][1] + tm[i][2]) / 3;
      }
    }
  }
  cnt = 0;
} else if (!(inlet_trig > 0)) {
  ntrig = 0;
}

// increment counting to get how many k-rate samples it takes till next trigger
cnt += 1;

// use the averaged countlength and calculate the timings for lfo's and delays
int32_t freq = ((uint64_t)1 << 32) / sum;
outlet_samples = sum;
outlet_delay = sum << 27 - inlet_lengthpow;
outlet_freq = freq;
outlet_pitch = FTOM(freq);
