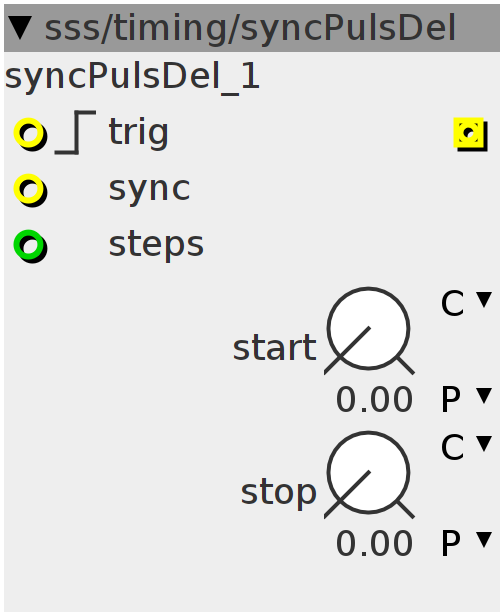

syncPulsDel
Generates a delayable synced pulse after a rising trigger on the trig input The pulse-length depends on the time in-between triggers on the "sync" input, the "steps" input and the "stop" knob. The time of the sync is multiplied with the steps to set the maximum trigger length, the "stop" knob sets the amount of that time the gate will be high. This pulse is given after a synced delay time. The "start" knob sets a maximum of four times the "sync time"
Inlets
bool32.rising trigger
bool32 sync
int32 steps
Outlets
bool32 pulse output
Parameters
frac32.u.map start
frac32.u.map stop
Declaration
uint32_t val1;
uint32_t val2;
bool ntrig;
bool trg;
uint32_t timer;
Init
val1 = 0;
val2 = 0;
ntrig = 0;
Control Rate
if ((inlet_sync > 0) && !ntrig) {
ntrig = 1;
timer = val1 * 0.9;
val1 = 0;
} else if (!(inlet_sync > 0)) {
ntrig = 0;
}
if ((inlet_trig > 0) && !trg) {
trg = 1;
val2 = -___SMMUL(param_start << 3, timer << 4);
} else if (!(inlet_trig > 0)) {
trg = 0;
}
val1 += 1;
val2 += 1;
outlet_out = ((val2 / inlet_steps) < ___SMMUL(param_stop << 3, timer << 2)) &&
((val2) > 0);
