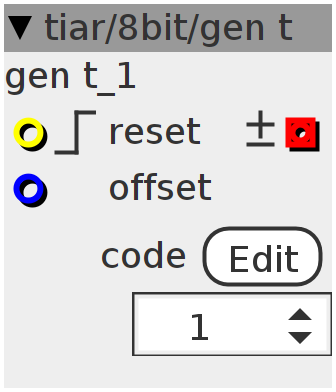

gen t
Inlets
bool32.rising reset
frac32 offset
Outlets
frac32buffer.bipolar wave
Parameters
int32 clkDiv
Attributes
text code
Declaration
int32_t tc;
int16_t c;
int32_t out;
bool ares = false;
int32_t s(int32_t x) { return (sine2t[(x & 255) << 4] >> 24) + 128; }
Init
c = 0;
tc = 0;
Control Rate
int32_t offset = inlet_offset >> 9;
if (inlet_reset && !ares) {
tc = 0;
}
ares = inlet_reset;
Audio Rate
if (c >= param_clkDiv) {
c = 0;
// t*((t>>12|t>>8)&63&t>>4)
// t&17*t&91+t>>5
int32_t t = tc + offset;
out = (attr_code);
tc++;
out &= 255;
out -= 128;
out <<= 20;
}
c++;
outlet_wave = out;
