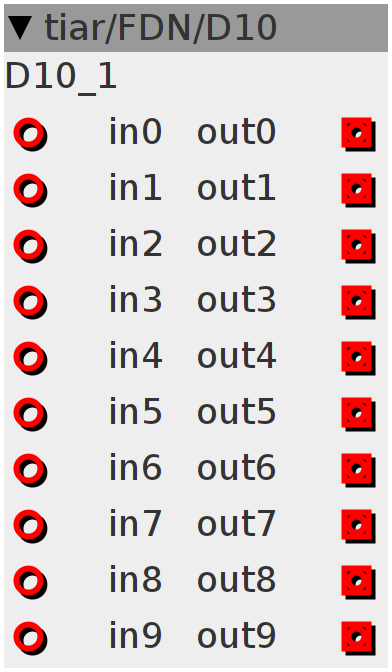

D10
10x10 dispersion matrix This matrix is symetrical
Inlets
frac32buffer in0
frac32buffer in1
frac32buffer in2
frac32buffer in3
frac32buffer in4
frac32buffer in5
frac32buffer in6
frac32buffer in7
frac32buffer in8
frac32buffer in9
Outlets
frac32buffer out0
frac32buffer out1
frac32buffer out2
frac32buffer out3
frac32buffer out4
frac32buffer out5
frac32buffer out6
frac32buffer out7
frac32buffer out8
frac32buffer out9
// T.Rochebois 2018
// 0 1 2 3 4 5 6 7 8 9
// 0 0 -1 -1 1 1 -1 1 1 1 1
// 1 -1 0 1 1 -1 1 -1 1 1 1
// 2 -1 1 0 -1 1 1 1 -1 1 1
// 3 1 1 -1 0 -1 1 1 1 -1 1
// 4 1 -1 1 -1 0 1 1 1 1 -1
// 5 -1 1 1 1 1 0 1 1 -1 -1
// 6 1 -1 1 1 1 1 0 -1 -1 1
// 7 1 1 -1 1 1 1 -1 0 1 -1
// 8 1 1 1 -1 1 -1 -1 1 0 1
// 9 1 1 1 1 -1 -1 1 -1 1 0
// 50+ 10*
int32_t coef = 1431655765; // 1/3 q32
int32_t t = inlet_in5 + inlet_in6 + inlet_in7 + inlet_in8 + inlet_in9;
outlet_out0 = ___SMMUL(coef, t + inlet_in3 + inlet_in4 - inlet_in1 - inlet_in2 -
(inlet_in5 << 1));
int32_t t2 = inlet_in3 - inlet_in4;
int32_t t3 = t - inlet_in0;
outlet_out1 = ___SMMUL(coef, t3 + t2 + inlet_in2 - (inlet_in6 << 1));
outlet_out2 = ___SMMUL(coef, t3 - t2 + inlet_in1 - (inlet_in7 << 1));
t2 = inlet_in1 - inlet_in2;
t3 = t + inlet_in0;
outlet_out3 = ___SMMUL(coef, t3 + t2 - inlet_in4 - (inlet_in8 << 1));
outlet_out4 = ___SMMUL(coef, t3 - t2 - inlet_in3 - (inlet_in9 << 1));
t = inlet_in0 + inlet_in1 + inlet_in2 + inlet_in3 + inlet_in4;
t2 = inlet_in7 - inlet_in9;
t3 = t - inlet_in8;
outlet_out5 = ___SMMUL(coef, t3 + t2 + inlet_in6 - (inlet_in0 << 1));
outlet_out6 = ___SMMUL(coef, t3 - t2 + inlet_in5 - (inlet_in1 << 1));
t2 = inlet_in5 - inlet_in9;
t3 = t - inlet_in6;
outlet_out9 = ___SMMUL(coef, t + inlet_in6 + inlet_in8 - inlet_in5 - inlet_in7 -
(inlet_in4 << 1));
outlet_out7 = ___SMMUL(coef, t3 + t2 + inlet_in8 - (inlet_in2 << 1));
outlet_out8 = ___SMMUL(coef, t3 - t2 + inlet_in7 - (inlet_in3 << 1));
;
