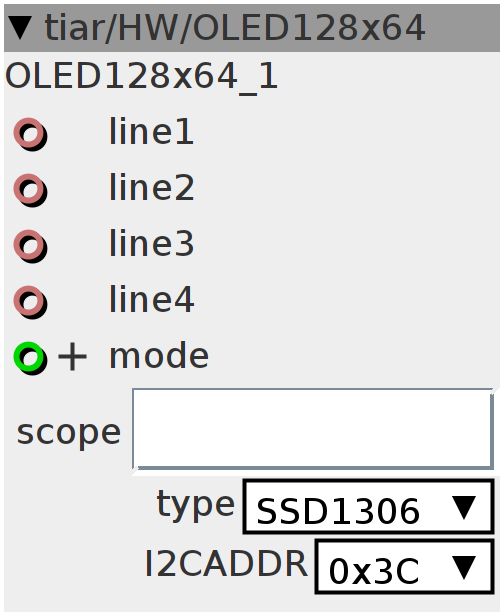

OLED128x64
OLED 128x64 SSD1306 on I2C. PB8=SCL PB9=SDA
Inlets
charptr32 line1
charptr32 line2
charptr32 line3
charptr32 line4
int32.positive mode
Outlets
None
Attributes
objref scope
combo type
combo I2CADDR
Declaration
// add include tiar_font5x8
enum SSD1306 {
LCDWIDTH = 128,
LCDHEIGHT = 64,
SETCONTRAST = 0x81, // 2byte cmd,256 contrast steps, reset = 7F
DISPLAYON = 0xAF, // entire display on
DISPLAYOFF = 0xAE, // entire display off
DISPLAYALLON_RESUME = 0xA4,
NORMALDISPLAY = 0xA6, // invert = 0xA7
DEACTIVATE_SCROLL = 0x2E, // stop control scroll conf by 26 27 29 2A
MEMORYMODE =
0x20, // 2byte cmd, 0 horizontal, 1 vertical, 2 page addressing, 3 invalid
COLUMNADDR = 0x21, // 3bytes, start, end (included) valid in horizontal or
// vertical mode
PAGEADDR = 0x22, // 3bytes, start, end (included) valid in horizontal or
// vertical mode
SETSTARTLINE_0 = 0x40, // set display RAM start line at 0
SEGREMAP = 0xA0, // segment remap 0 mapped to SEG0
SETMULTIPLEX = 0xA8, // 2 byte cmd, set mux ratio
COMSCANDEC = 0xC8, // scan from COM[N-1] to COM[0] (0xC0 is COM0 to COM[N-1])
SETDISPLAYOFFSET = 0xD3, // 2 byte cmd, vertical shift
SETCOMPINS = 0xDA, // 2 byte cmd, seq com pin conf, left right remap
SETDISPLAYCLOCKDIV = 0xD5, // 2 byte cmd, low nibble A[3:0]+1 = div ratio,
// high nibble A[7:4] freq, reset 1000b
SETPRECHARGE =
0xD9, // 2 byte cmd, precharge period A[3:0] phase1 A[7:4] phase2, reset:2
SETVCOMDETECT = 0xDB, // 2 byte Vcomh deselect level A[6:4] 000b 0.65xVcc 010b
// 0.77(reset) 011b 0.83
CHARGEPUMP = 0x8D, // Enable charge pump seq: 0x8D, 0x14, 0xAF (Charge pump
// setting, enable charge pump, display on)
EXTERNALVCC = 0x1,
SWITCHCAPVCC = 0x2,
};
uint8_t const nibbleToByte[16] = {
0b00000000, 0b00000011, 0b00001100, 0b00001111, 0b00110000, 0b00110011,
0b00111100, 0b00111111, 0b11000000, 0b11000011, 0b11001100, 0b11001111,
0b11110000, 0b11110011, 0b11111100, 0b11111111};
uint8_t cpt;
uint8_t *txbuf;
uint8_t *rxbuf;
int32_t mode;
uint8_t text[11 * 4];
uint8_t tY[128];
// SETUP
// ------------------
void cmd(uint8_t c) {
txbuf[0] = 0;
txbuf[1] = c;
i2cMasterTransmitTimeout(&I2CD1, attr_I2CADDR, txbuf, 2, rxbuf, 0, 30);
// chThdSleepMilliseconds(1);
}
// _____________________________________________________________________
void fill(uint8_t v) {
cmd(COLUMNADDR);
cmd(0);
cmd(127); // Column start end
cmd(PAGEADDR);
cmd(0);
cmd(7); // Page start end
txbuf[0] = 0x40;
for (int i = 1; i < 129; i++)
txbuf[i] = v;
for (int p = 0; p < 8; p++) {
i2cMasterTransmitTimeout(&I2CD1, attr_I2CADDR, txbuf, 129, rxbuf, 0, 30);
// chThdSleepMilliseconds(1);
}
}
// _____________________________________________________________________
// scaled x2 text
// returns a page to be sent to the SSD1306 based on contents of text
void calcTextPage(int page, uint8_t tPage[128]) {
int i = 0;
int tLine = page / 2;
for (int nc = 0; nc < 11; nc++) {
int ascii_32 = text[nc + 11 * tLine] - ' ';
if (ascii_32 < 0 || ascii_32 >= 128 - 32)
ascii_32 = 0;
const uint8_t *adChar = tiar_font5x8 + ascii_32 * 5;
for (int slice = 0; slice < 5; slice++) {
uint8_t s;
if ((page & 1) == 0) {
s = nibbleToByte[adChar[slice] & 15]; // low nibble
} else {
s = nibbleToByte[(adChar[slice] >> 4) & 15]; // high nibble
}
tPage[i] = s;
i++;
tPage[i] = s;
i++;
}
tPage[i] = 0;
i++; // separator space
}
while (i < 128) {
tPage[i] = 0;
i++;
} // space padding
}
// _____________________________________________________________________
// opt function draw
// LSB up
uint8_t const tBar[9] = {0b00000000, 0b10000000, 0b11000000,
0b11100000, 0b11110000, 0b11111000,
0b11111100, 0b11111110, 0b11111111};
/*
page0
1
.
7
*/
uint8_t vBar(uint8_t val, int page) {
uint8_t _page = 7 - (val / 8);
if (page > _page)
return 0b11111111; // below => light
else if (page < _page)
return 0; // above => dark
else
return tBar[val & 7];
}
void _calcScopePage(int page, uint8_t tPage[128]) {
for (int i = 0; i < 128; i++) {
uint16_t y = ((attr_scope.t[i] + 64) * 3) / 8;
tPage[i] = vBar(y, page);
}
}
void calcScopePage(int page, uint8_t tPage[128]) {
if (page < 2) {
calcTextPage(page, tPage);
} else {
uint16_t y0 = tY[0];
uint16_t y1 = tY[1];
uint16_t y2;
for (int i = 0; i < 128; i++) {
if (i < 127)
y2 = tY[i + 1];
uint16_t yM, ym;
yM = ym = y1;
uint16_t y = (y0 + y1) >> 1;
yM = y > yM ? y : yM;
ym = y < ym ? y : ym;
y = (y2 + y1) >> 1;
yM = y > yM ? y : yM;
ym = y < ym ? y : ym;
if (ym == yM)
if (yM > 0)
ym--;
else
yM++;
tPage[i] = vBar(yM, page) & ~vBar(ym, page);
y0 = y1;
y1 = y2;
}
}
}
// _____________________________________________________________________
void sendTextPage(int page) {
cmd(COLUMNADDR);
cmd(0);
cmd(127); // Column start end
cmd(PAGEADDR);
cmd(page);
cmd(page); // Page start end
if (attr_type == 1106) {
cmd(0xB0 + page); // set page address
cmd(2 & 0xf); // set lower column address
cmd(0x10 | (2 >> 4)); // set higher column address
}
txbuf[0] = 0x40;
if (mode == 0) {
calcTextPage(page, txbuf + 1);
i2cMasterTransmitTimeout(&I2CD1, attr_I2CADDR, txbuf, 129, rxbuf, 0, 30);
} else if (mode == 1) {
if (page == 1)
for (int i = 0; i < 128; i++)
tY[i] = ((attr_scope.t[i] + 64) * 3) >> 3;
calcScopePage(page, txbuf + 1);
i2cMasterTransmitTimeout(&I2CD1, attr_I2CADDR, txbuf, 129, rxbuf, 0, 30);
}
}
// _____________________________________________________________________
void init() {
// Init sequence
cmd(DISPLAYOFF);
// 2 byte cmd, low nibble A[3:0]+1 = div ratio, high nibble A[7:4] freq, reset
// 1000b
cmd(SETDISPLAYCLOCKDIV);
cmd(0x80);
cmd(SETMULTIPLEX);
cmd(LCDHEIGHT - 1);
cmd(SETDISPLAYOFFSET);
cmd(attr_type == 1306 ? 0x00 : 0x01);
cmd(SETSTARTLINE_0);
cmd(CHARGEPUMP);
cmd(0x14);
cmd(MEMORYMODE);
cmd(0x00);
cmd(SEGREMAP | 0x1);
cmd(COMSCANDEC);
// 128 x 64
cmd(SETCOMPINS);
cmd(0x12);
cmd(SETCONTRAST);
cmd(0xCF);
cmd(SETPRECHARGE);
cmd(0xF1);
cmd(SETVCOMDETECT);
cmd(0x40);
cmd(DISPLAYALLON_RESUME);
cmd(NORMALDISPLAY);
cmd(DEACTIVATE_SCROLL);
cmd(DISPLAYON);
}
// _____________________________________________________________________
void setup() {
static uint8_t _txbuf[129] __attribute__((section(".sram2")));
static uint8_t _rxbuf[8] __attribute__((section(".sram2")));
txbuf = _txbuf;
rxbuf = _rxbuf;
init();
}
// _____________________________________________________________________
void loop() {
uint8_t p[] = {0, 1, 4, 5, 3, 6, 2, 7};
sendTextPage(p[cpt % 8]);
cpt++;
}
// _____________________________________________________________________
// THREADS
msg_t ThreadX2() {
setup();
while (!chThdShouldTerminate()) {
loop();
chThdSleepMilliseconds(1);
}
chThdExit((msg_t)0);
}
static msg_t ThreadX(void *arg) { ((attr_parent *)arg)->ThreadX2(); }
WORKING_AREA(waThreadX, 1024);
Thread *Thd;
Init
cpt = 0;
for (int i = 0; i < 11 * 4; i++) {
text[i] = ' ';
}
// setup the pins
palSetPadMode(GPIOB, 8,
PAL_MODE_ALTERNATE(4) | PAL_STM32_PUDR_PULLUP |
PAL_STM32_OTYPE_OPENDRAIN); // SCL
palSetPadMode(GPIOB, 9,
PAL_MODE_ALTERNATE(4) | PAL_STM32_PUDR_PULLUP |
PAL_STM32_OTYPE_OPENDRAIN); // SDA
static const I2CConfig i2cfg = {
OPMODE_I2C,
400000,
FAST_DUTY_CYCLE_2,
};
/*static const I2CConfig i2cfg = {
OPMODE_I2C,
100000,
STD_DUTY_CYCLE,
};*/
i2cStart(&I2CD1, &i2cfg);
Thd = chThdCreateStatic(waThreadX, sizeof(waThreadX), NORMALPRIO, ThreadX,
(void *)this);
Control Rate
mode = inlet_mode;
if (inlet_line1 != NULL) {
int i = 0;
while (i < 11 & inlet_line1[i] != '\0') {
text[i] = inlet_line1[i];
i++;
}
while (i < 11) {
text[i] = ' ';
i++;
}
}
if (mode == 0) {
if (inlet_line2 != NULL) {
int i = 0;
while (i < 11 & inlet_line2[i] != '\0') {
text[i + 11] = inlet_line2[i];
i++;
}
while (i < 11) {
text[i + 11] = ' ';
i++;
}
}
if (inlet_line3 != NULL) {
int i = 0;
while (i < 11 & inlet_line3[i] != '\0') {
text[i + 2 * 11] = inlet_line3[i];
i++;
}
while (i < 11) {
text[i + 2 * 11] = ' ';
i++;
}
}
if (inlet_line4 != NULL) {
int i = 0;
while (i < 11 & inlet_line4[i] != '\0') {
text[i + 3 * 11] = inlet_line4[i];
i++;
}
while (i < 11) {
text[i + 3 * 11] = ' ';
i++;
}
}
}
Dispose
chThdTerminate(Thd);
chThdWait(Thd);
i2cStop(&I2CD1);
palSetPadMode(GPIOB, 8, PAL_MODE_INPUT_ANALOG);
palSetPadMode(GPIOB, 9, PAL_MODE_INPUT_ANALOG);
