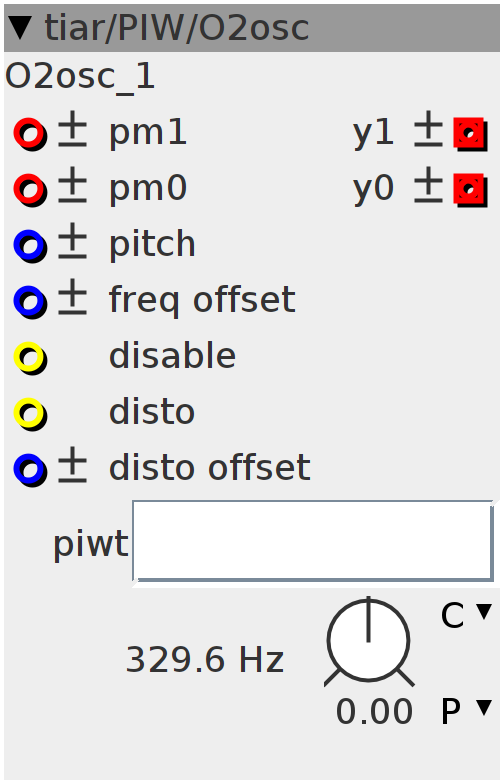

O2osc

PIWT osc, needs to connect to a PIWT. Experimental.
Author: Smashed Transistors
License: LGPL
Github: tiar/PIW/O2osc.axo

Inlets

bool32 disables the object

bool32 use the waveform as a distortion

frac32buffer.bipolar pm1

frac32buffer.bipolar pm0

frac32.bipolar pitch

frac32.bipolar freq offset

frac32.bipolar disto offset

Outlets

frac32buffer.bipolar y1

frac32buffer.bipolar y0

Parameters

frac32.s.map.pitch pitch

Attributes

objref piwt

Declaration
uint32_t p; // phase
int32_t dp; // delta phase aka freq
int32_t x0, x1, I1_0, I1_1;
int32_t kMI;      // Modulation Index
int32_t aMI, dMI; // interp Modulation Index
Init
// _____________________________________________________________________
p = 0;
dp = 1;
x0 = 0;
x1 = 1;
I1_0 = I1_1 = 0;
aMI = dMI = kMI = 0;
// _____________________________________________________________________
Control Rate
if (!inlet_disable) {
  // _____________________________________________________________________
  MTOFEXTENDED(param_pitch + inlet_pitch, dp);
  dp += ___SMMUL(0x01000000, inlet_freq_space_offset);
  dp >>= 32 - 20 - attr_piwt.LENGTHPOW + 1;
  // (need to calculate x0 - x1 even with over modulation)
  // _____________________________________________________________________
  //                                                     Audio rate loops
  const int rightShiftPM = 9 - attr_piwt.LENGTHPOW;
  const int shiftDisto = attr_piwt.LENGTHPOW - 4;
  for (int j = 0; j < BUFSIZE; j++) {
    {
      if (inlet_disto) {
        p = (inlet_disto_space_offset >> 4) << shiftDisto;
      } else {
        p += dp; // phase increment
        if (p >= 0x40000000) {
          p -= attr_piwt.LENGTH << 20;  // length of one cycle
          x0 -= attr_piwt.LENGTH << 20; // p, xO and x1 must be consistent
        }
      }
      x1 = x0;
      I1_1 = I1_0;
      x0 = p + ((inlet_pm1[j] << 3) >> rightShiftPM);
      float inv = ((float)(1 << 27)) / ((float)(x0 - x1));
      int32_t a = (x0 & 0x000FFFFF) << 11; // 0 -> 1 q31
      uint32_t i =
          (x0 & (attr_piwt.LENGTHMASK << 20)) >> 20; // [0 attr_piwt.LENGTH-1]
      int32_t a2_2 = ___SMMUL(a, a);
      I1_0 = ___SMMUL(attr_piwt.v[i], a);
      I1_0 = ___SMMLA(attr_piwt.v[i + 1] - attr_piwt.v[i], a2_2, I1_0);
      I1_0 = attr_piwt.Iv[i] + (I1_0 << 1);
      int32_t v =
          ___SMMLA(a, attr_piwt.v[i + 1] - attr_piwt.v[i], attr_piwt.v[i] >> 1)
          << (attr_piwt.GAIN + 1);
      int32_t diff = I1_0 - I1_1;
      if (abs(x0 - x1) > 256)
        outlet_y1[j] = (int32_t)(diff * inv);
      else {
        outlet_y1[j] = v;
      }
    }

    {
      if (inlet_disto) {
        p = (inlet_disto_space_offset >> 4) << shiftDisto;
      } else {
        p += dp; // phase increment
        if (p >= 0x40000000) {
          p -= attr_piwt.LENGTH << 20;  // length of one cycle
          x0 -= attr_piwt.LENGTH << 20; // p, xO and x1 must be consistent
        }
      }
      x1 = x0;
      I1_1 = I1_0;
      x0 = p + ((inlet_pm0[j] << 3) >> rightShiftPM);
      float inv = ((float)(1 << 27)) / ((float)(x0 - x1));
      int32_t a = (x0 & 0x000FFFFF) << 11; // 0 -> 1 q31
      uint32_t i =
          (x0 & (attr_piwt.LENGTHMASK << 20)) >> 20; // [0 attr_piwt.LENGTH-1]
      int32_t a2_2 = ___SMMUL(a, a);
      I1_0 = ___SMMUL(attr_piwt.v[i], a);
      I1_0 = ___SMMLA(attr_piwt.v[i + 1] - attr_piwt.v[i], a2_2, I1_0);
      I1_0 = attr_piwt.Iv[i] + (I1_0 << 1);
      int32_t v =
          ___SMMLA(a, attr_piwt.v[i + 1] - attr_piwt.v[i], attr_piwt.v[i] >> 1)
          << (attr_piwt.GAIN + 1);
      int32_t diff = I1_0 - I1_1;
      if (abs(x0 - x1) > 256)
        outlet_y0[j] = (int32_t)(diff * inv);
      else {
        outlet_y0[j] = v;
      }
    }
  }
} else { // disabled
  if (inlet_disto) {
    for (int j = 0; j < BUFSIZE; j++) {
      outlet_y1[j] = inlet_pm1[j];
      outlet_y0[j] = inlet_pm0[j];
    }
  } else {
    for (int j = 0; j < BUFSIZE; j++) {
      outlet_y1[j] = 0;
      outlet_y0[j] = 0;
    }
  }
}
