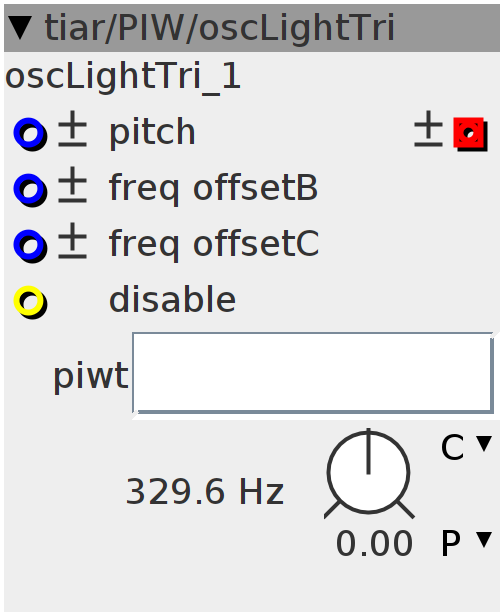

oscLightTri

PIWT osc, needs to connect to a PIWT.
Author: Smashed Transistors
License: LGPL
Github: tiar/PIW/oscLightTri.axo

Inlets

frac32.bipolar pitch

frac32.bipolar freq offsetB

frac32.bipolar freq offsetC

bool32 disables the object

Outlets

frac32buffer.bipolar wave

Parameters

frac32.s.map.pitch pitch

Attributes

objref piwt

Declaration
uint32_t pA = 0, dpA = 1; // phase and delta phase aka freq
uint32_t pB = 0, dpB = 1; // phase and delta phase aka freq
uint32_t pC = 0, dpC = 1; // phase and delta phase aka freq
int32_t I1_1 = 0;
int32_t inv;
Control Rate
if (!inlet_disable) {
  int32_t nextDpA;
  MTOFEXTENDED(param_pitch + inlet_pitch, nextDpA);
  int32_t nextDpB = ___SMMLA(0x01000000, inlet_freq_space_offsetB, nextDpA);
  int32_t nextDpC = ___SMMLA(0x01000000, inlet_freq_space_offsetC, nextDpA);
  nextDpA >>= 32 - 22 - attr_piwt.LENGTHPOW;
  // the float division execs in parallel with integer operations.
  float nextInv = (((float)(5 << 12)) / arm::q_to_float(nextDpA, 32));
  nextDpB >>= 32 - 22 - attr_piwt.LENGTHPOW;
  nextDpC >>= 32 - 22 - attr_piwt.LENGTHPOW;
  for (int j = 0; j < BUFSIZE; j++) {
    int32_t I1_0 = attr_piwt.I1p32(pB -= dpB) + attr_piwt.I1p32(pC += dpC) -
                   attr_piwt.I1p32(pA += dpA);
    outlet_wave[j] = ___SMMUL(I1_0 - I1_1, inv) << 13;
    I1_1 = I1_0;
  }
  dpA = nextDpA;
  dpB = nextDpB;
  dpC = nextDpC;
  inv = (int32_t)nextInv;
} else { // disabled
  for (int j = 0; j < BUFSIZE; j++) {
    outlet_wave[j] = 0;
  }
}
