class Blit {
public:
  float ctrlAmp[8]; // amp from control
  float amp[8];     // amp for a complete cycle

  float period; // period in sample
  float fPeriod;
  int32_t iPeriod;
  uint32_t nextSpl;

  float subSpl;
  uint16_t cpt; // step counter

  void setF(float f) {
    period = 48000.0f / f;
    iPeriod = (int32_t)period;
    fPeriod = period - iPeriod;
  }
  void init(float f) {
    setF(f);
    for (int i = 0; i < 8; i++) {
      ctrlAmp[i] = 0.0f;
      amp[i] = 0.0f;
    }
  }
};

uint32_t spl = 0;
Blit blits[12];
float z0 = 0;
float z1 = 0;
float Z = 0;
float y0 = 0;
float y1 = 0;
float Y = 0;
float DCY = 0;
float DCZ = 0;

int8_t gates[128];
int32_t envs[8 * 12];
int32_t envc[8 * 12];

float f = 4186.009f * 2;
for (int i = 0; i < 12; i++) {
  blits[i].init(f);
  f *= 1.059463094f;
}

for (int i = 0; i < 128; i++) {
  gates[i] = 0;
}
for (int i = 0; i < 8 * 12; i++) {
  envs[i] = 0;
  envc[i] = 0;
}

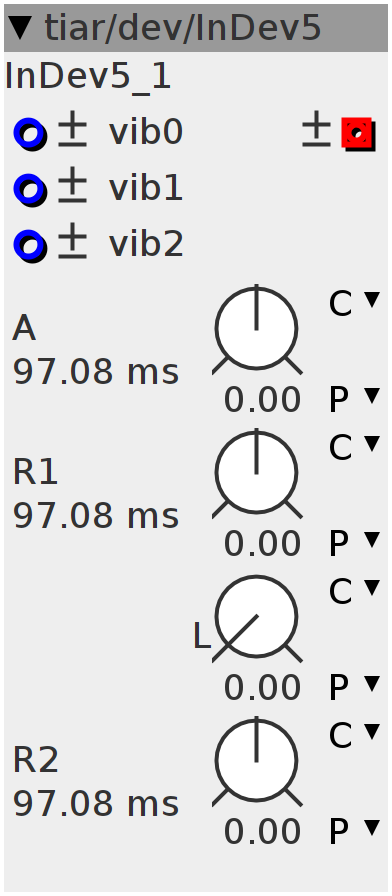

float vib0 = inlet_vib0 * 1e-10f;
float vib1 = inlet_vib1 * 1e-10f;
float vib2 = inlet_vib2 * 1e-10f;
// C#
float f = 2.0f * 4186.009f * 1.059463094f;
blits[0].setF(f *vib0 + f);
f *= 1.059463094f;
blits[1].setF(0.5f * f * vib0 + f);
f *= 1.059463094f;
blits[2].setF(-f *vib0 + f);
f *= 1.059463094f;
blits[3].setF(f *vib1 + f);
f *= 1.059463094f;
blits[4].setF(-f *vib1 + f);
f *= 1.059463094f;
blits[5].setF(-f *vib2 + f);
f *= 1.059463094f;
blits[6].setF(0.9f * f * vib2 + f);
f *= 1.059463094f;
blits[7].setF(-0.9f * f * vib1 + f);
f *= 1.059463094f;
blits[8].setF(f *vib1 + f);
f *= 1.059463094f;
blits[9].setF(-f *vib0 + f);
f *= 1.059463094f;
blits[10].setF(0.7f * f * vib2 + f);
f *= 1.059463094f;
blits[11].setF(0.5f * f * vib2 + f);

float envTot = 0;
for (int i = 0; i < 8 * 12; i++) {
  int32_t b = envs[i];
  if (gates[13 + i] > 10)
    envs[i] = ___SMMLA(0x7FFFFFFF - param_A, (100 << 20) - b, b >> 1)
              << 1; // ascending
  else if (b > param_L)
    envs[i] = ___SMMUL(b, param_R1) << 1;
  else
    envs[i] = ___SMMUL(b, param_R2) << 1;
  envTot += envs[i];
}
int32_t comp = arm::float_to_q(10000000 / sqrtf(envTot + (1 << 27)), 27);
for (int i = 0; i < 8 * 12; i++) {
  envc[i] = ___SMMUL(envs[i], comp);
}
float totAmp = 0;
for (int i = 0; i < 12; i++) {
  for (int oct = 0; oct < 8; oct++) {
    totAmp += (blits[i].ctrlAmp[oct] = arm::q_to_float(envc[i + 12 * oct], 27));
  }
}

for (int nBlit = 0; nBlit < 12; nBlit++) {
  Blit *blit = blits + nBlit;
  if (spl == blit->nextSpl) {
    float *amp = blit->amp;
    float gy = 0;
    float gz = 0;
    float coefZ = (1.0f / 128) / blit->period;
    uint16_t cpt = blit->cpt;

    //  \                     \
//  | \                   | \
//  |   \_________________|   \_________________

    uint16_t c = cpt;
    uint16_t m = 4 * 128 * 2; // 3 * (1<<7) * 2
    uint16_t p = 256;
    for (int oct = 0; oct < 8; oct++) {
      m >>= 1;
      if (c >= m)
        c -= m;
      // 0
      if (c == 0) {
        float a = (amp[oct] = blit->ctrlAmp[oct]);
        gy += a;
        gz -= a * coefZ;
      }
      // 1
      p >>= 1;
      if (c == p) {
        gz += amp[oct] * coefZ;
      }
      coefZ *= 2;
    }
    cpt++;
    if (cpt >= 512)
      cpt -= 512;

    y0 += gy * (blit->subSpl);
    y1 += gy * (1 - blit->subSpl);
    z0 += gz * (blit->subSpl);
    z1 += gz * (1 - blit->subSpl);
    blit->nextSpl += blit->iPeriod;
    blit->subSpl += blit->fPeriod;
    if (blit->subSpl >= 1) {
      blit->subSpl -= 1;
      blit->nextSpl++;
    }
    blit->cpt = cpt;
  }
}

Z = (Z + z1 - 0.0001f * DCZ);
z1 = z0;
z0 = 0;

Y = (Y * 0.999999f + y1 + Z - DCZ);
DCZ += 0.01f * (y1 + Z - DCZ);

float out = Y - totAmp * (1.0f / 16);
DCY += 0.0001f * (out - DCY);

y1 = y0;
y0 = 0;

outlet_out = arm::float_to_q(out - DCY, 30);

spl++;

if (status == MIDI_NOTE_ON + attr_midichannel) {
  gates[data1 & 0x7F] = data2 ? 100 : 0;
} else if (status == MIDI_NOTE_OFF + attr_midichannel) {
  gates[data1 & 0x7F] = 0;
} else if ((status == attr_midichannel + MIDI_CONTROL_CHANGE) &&
           (data1 == MIDI_C_ALL_NOTES_OFF)) {
  for (int i = 0; i < 128; i++)
    gates[data1 & 0x7F] = 0;
}
