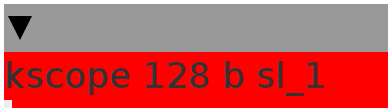

kscope 128 b sl
slow positive control rate signal oscilloscope (time domain), showing 128 consecutive samples or sub samples.
Author: Smashed Transistors based on Johannes Taelman
License: BSD
Github: tiar/disp/kscope 128 b sl.axo
Inlets
frac32.positive input
Outlets
None
Parameters
int32 subSample
Displays
int8array128.vbar scope
Declaration
int8_t t[128];
int cpt;
int index;
Init
int i;
for (i = 0; i < 128; i++)
t[i] = 0;
index = 0;
cpt = 0;
Control Rate
cpt++;
if (cpt >= param_subSample) {
cpt = 0;
disp_scope[index] = t[index] = (uint8_t)(inlet_in >> 21);
index++;
if (index >= 128) {
index = 0;
}
/*for(int i = 0; i < 128; i++)
disp_scope[i] = t[i];*/
}
