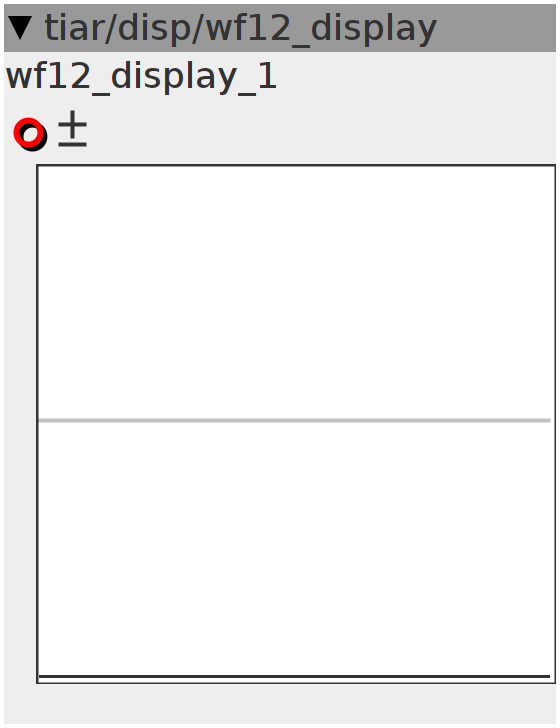

wf12_display
wf_12 waveform display for use with the 12Steps series of oscillators (tiar/osc)
Inlets
frac32buffer.bipolar wf12 waveform
Outlets
None
Displays
int8array128.vbar wf12
Control Rate
for (int i = 0; i < 12; i++)
for (int j = i * 10; j < (i + 1) * 10; j++)
disp_wf12[j] = (uint8_t)(inlet_wf12[i] >> 21);
for (int j = 120; j < 128; j++)
disp_wf12[j] = (uint8_t)(inlet_wf12[0] >> 21);
