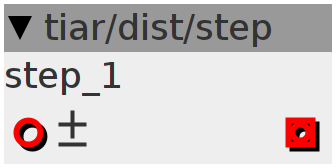

step

Step (infinite gain saturation). Differentiated Anti aliasing.
Author: Smashed Transistors
License: BSD
Github: tiar/dist/step.axo

Inlets

frac32buffer.bipolar in

Outlets

frac32buffer out

Declaration
float x0, x1, y0, y1;
Init
x0 = y0 = 0;
Audio Rate
x1 = x0;
y1 = y0;
x0 = arm::q_to_float(inlet_in, 27);
y0 = fabs(x0);
float x1_x0 = x1 - x0;
if (fabs(x1_x0) > 0.001f) {
  outlet_out = arm::float_to_q((y1 - y0) / (x1_x0), 27);
} else {
  outlet_out = arm::float_to_q(x0 > 0 ? 1 : -1, 27);
}
