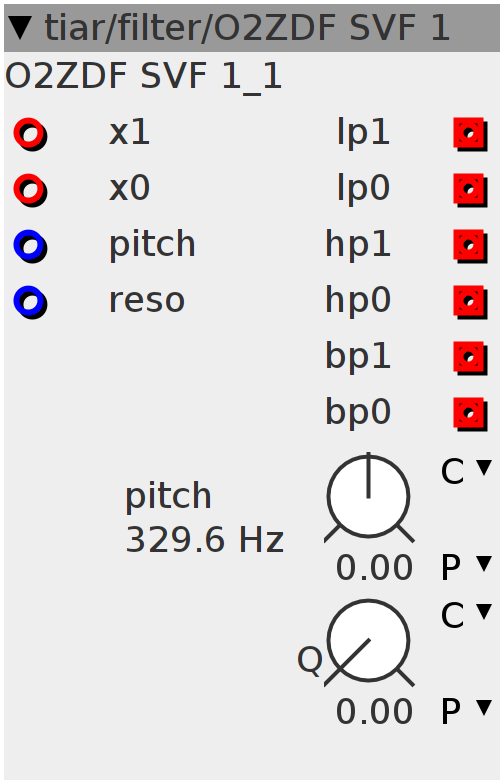

O2ZDF SVF 1

Author: Smashed Transistors
License: LGPL
Github: tiar/filter/O2ZDF SVF 1.axo

Inlets

frac32 pitch

frac32 filter resonance

frac32buffer filter input

frac32buffer filter input

Outlets

frac32buffer filter output

frac32buffer filter output

frac32buffer hp1

frac32buffer hp0

frac32buffer bp1

frac32buffer bp0

Parameters

frac32.s.map.pitch pitch

frac32.u.map Q

Declaration
// updates the coefficients with the "ZDF" step invariant method.
void update(float _Q, float F) {
  D = _Q;
  // _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
  // pre iterations values (equiv to Chamberlin filter)
  float _a = F * F;
  float tmp = 1 - _a - D * F;
  float _b = F * tmp + F;
  float _c = tmp * tmp - _a;
  // _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
  // 7 iterations to obtain the new a b and c (equiv x32 oversampling)
  // Two sets of vars (_a _b _c and na nb nc) are used to bounce values
  // between iterations to optimize copies.
  float b2;
  b2 = _b * _b;
  na = b2 + _a * (2 - _a);
  nb = _b * (1 + _c - _a);
  nc = _c * _c - b2;
  b2 = nb * nb;
  _a = b2 + na * (2 - na);
  _b = nb * (1 + nc - na);
  _c = nc * nc - b2;
  b2 = _b * _b;
  na = b2 + _a * (2 - _a);
  nb = _b * (1 + _c - _a);
  nc = _c * _c - b2;
  b2 = nb * nb;
  _a = b2 + na * (2 - na);
  _b = nb * (1 + nc - na);
  _c = nc * nc - b2;
  b2 = _b * _b;
  na = b2 + _a * (2 - _a);
  nb = _b * (1 + _c - _a);
  nc = _c * _c - b2;
  b2 = nb * nb;
  _a = b2 + na * (2 - na);
  _b = nb * (1 + nc - na);
  _c = nc * nc - b2;
  b2 = _b * _b;
  na = b2 + _a * (2 - _a);
  nb = _b * (1 + _c - _a);
  nc = _c * _c - b2;
  // _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
  // deltas for sample rate interpolation
  da = (na - a) * (1 / 32.0f);
  db = (nb - b) * (1 / 32.0f);
  dc = (nc - c) * (1 / 32.0f);
}

float a, b, c;    // current values (srate interpolated)
float na, nb, nc; // new values
float da, db, dc; // deltas for srate interpolation
float D;          // used for hp
float x;          // input
float lp, bp;     // state variables/outputs
float TRF_coef;
Init
D = x = lp = bp = 0;
update(1.0f, 0.1f / 32);
a = na;
b = nb;
c = nc;
da = db = dc = 0;
TRF_coef = (820.0f / (1 << 27)) * 2 * 3.1415926535f / (128 * 48000);
Control Rate
float q = __USAT(param_Q + inlet_reso, 27) * (1.0f / (1 << 27));
q = 0.25f + q * (1 + q * q * (18.75f + q * 60)); // 0.25 -> 80

int32_t alpha;
MTOFEXTENDED(param_pitch + inlet_pitch - (27 << 20), alpha);
update(1 / (2 * q), alpha *TRF_coef);
Audio Rate
// _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
a += da;
b += db;
c += dc;
x = (float)inlet_x1;
float x_lp = x - lp;
outlet_lp1 = (int32_t)(lp += a * x_lp + b * bp);
outlet_hp1 = (int32_t)(x - D * bp - lp);
outlet_bp1 = (int32_t)(bp = b * x_lp + c * bp);
a += da;
b += db;
c += dc;
// _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
x = (float)inlet_x0;
x_lp = x - lp;
outlet_lp0 = (int32_t)(lp += a * x_lp + b * bp);
outlet_hp0 = (int32_t)(x - D * bp - lp);
outlet_bp0 = (int32_t)(bp = b * x_lp + c * bp);
