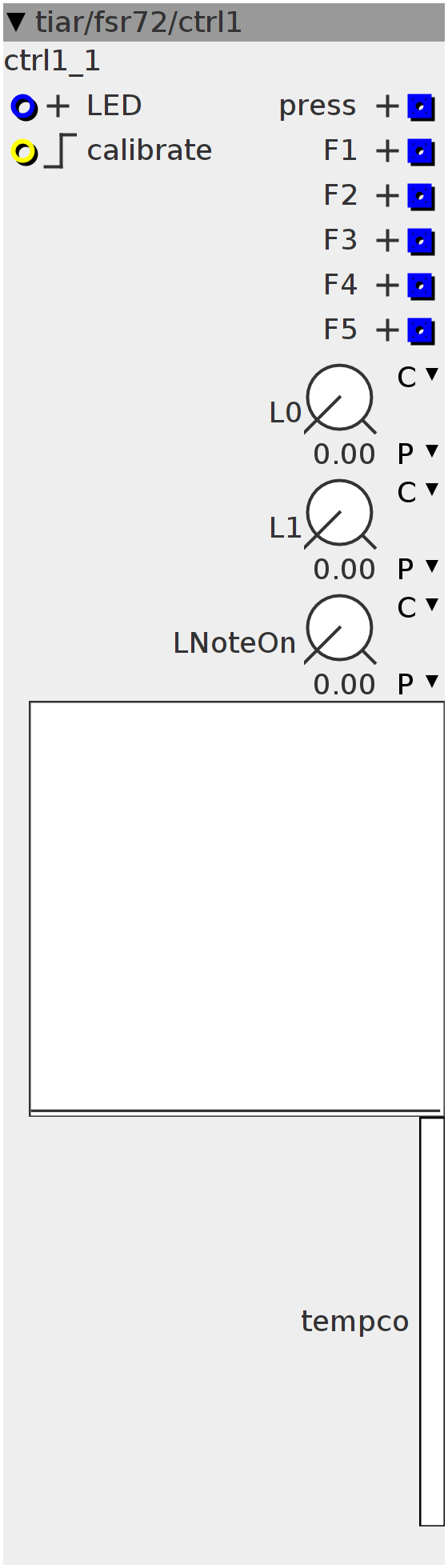

ctrl1
Controler for FSR72 custom hardware setup.
Inlets
frac32.positive LED brightness
bool32.rising calibrate
Outlets
frac32.positive press
frac32.positive F1
frac32.positive F2
frac32.positive F3
frac32.positive F4
frac32.positive F5
Parameters
frac32.u.map L0
frac32.u.map L1
frac32.u.map LNoteOn
Displays
uint8array128.vbar vf
frac32.vbar tempco
Declaration
bool calibrate = false;
uint32_t vol = 80;
uint32_t vol_cpt = 0;
// tempco
int32_t tempco = 0;
int32_t scan = -12; // first cycle
uint8_t adcNotes[12] = {12, 11, 10, 9, 8, 7, 6, 4, 3, 2, 1, 0};
int32_t v[6 * 12];
int32_t cal[6 * 12];
int32_t vrs[6 * 12];
int32_t gate[6 * 12];
int32_t press[6 * 12];
const int32_t COEF_INC = 0x10000000; // slow
const int32_t COEF_DEC = 0x70000000; // fast
float _L0_L1;
uint8_t oct = 3;
uint8_t an[5 * 12]; // assignated note
uint32_t timeCnt = 0;
uint8_t KBmode = 0;
uint8_t LEDmode = 0;
uint16_t modeCntDown = 0; // modes back to 0 when 0
bool octM = false;
bool octP = false;
int32_t bend = 8192, abend = 8192;
// -----\
// \
// \____
// 0 L1 L0
int32_t revScale(int32_t x, int32_t L0, int32_t L1) {
if (x < L1)
return (1 << 27) - 1;
else if (x > L0)
return 0;
else
// return 1-(x-L1)/(L0-L1); //
return (1 << 27) - (int32_t)((x - L1) * _L0_L1);
}
void LED(int32_t pwm) {
pwmEnableChannel(&PWMD8, 0, (pwmcnt_t)(pwm >= 0 ? pwm >> (27 - 12) : 0));
}
void LEDOn(void) { pwmEnableChannel(&PWMD8, 0, (pwmcnt_t)(1 << 11)); }
void LEDBright(void) { pwmEnableChannel(&PWMD8, 0, (pwmcnt_t)(1 << 12)); }
void LEDOff(void) { pwmEnableChannel(&PWMD8, 0, (pwmcnt_t)(0)); }
Init
static const PWMConfig pwmcfg = {400000, /* 400kHz PWM clock frequency. */
4096, /* PWM period is 128 cycles. */
NULL,
{{PWM_OUTPUT_ACTIVE_HIGH, NULL},
{PWM_OUTPUT_ACTIVE_HIGH, NULL},
{PWM_OUTPUT_ACTIVE_HIGH, NULL},
{PWM_OUTPUT_ACTIVE_HIGH, NULL}},
/* HW dependent part.*/
0};
pwmStart(&PWMD8, &pwmcfg);
palSetPadMode(GPIOA, 5, PAL_MODE_ALTERNATE(3));
PWMD8.tim->CCER |= STM32_TIM_CCER_CC1NE | STM32_TIM_CCER_CC1NP;
//_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
palSetPadMode(GPIOC, 4, PAL_MODE_OUTPUT_PUSHPULL);
palSetPadMode(GPIOC, 5, PAL_MODE_OUTPUT_PUSHPULL);
palSetPadMode(GPIOB, 6, PAL_MODE_OUTPUT_PUSHPULL); // low row
palSetPadMode(GPIOB, 7, PAL_MODE_OUTPUT_PUSHPULL);
palSetPadMode(GPIOB, 8, PAL_MODE_OUTPUT_PUSHPULL);
palSetPadMode(GPIOB, 9, PAL_MODE_OUTPUT_PUSHPULL);
//_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
for (int k = 0; k < 5 * 12; k++) {
an[k] = -1;
}
for (int i = 0; i < 6 * 12; i++) {
v[i] = 1 << 27; // assym lp filtered
cal[i] = 0;
vrs[i] = -10; // reverse scaled
gate[i] = 0;
press[i] = 0;
}
Control Rate
disp_tempco = tempco =
___SMMLA(0x01000000, (adcvalues[13] << 15) - tempco, tempco);
// _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
if (scan >= 0) {
// LPF input
int32_t *v12 = v + scan * 12;
for (int i = 0; i < 12; i++) { // PA0..PA7
int32_t in = (adcvalues[adcNotes[i]] << 15) - tempco;
v12[i] = __SMMLA(in > v12[i] ? COEF_INC : COEF_DEC, in - v12[i], v12[i]);
}
// reverse and scale
_L0_L1 = ((float)(1 << 27)) / (float)(param_L0 - param_L1);
for (int i = scan * 12; i < 12 + scan * 12; i++) {
vrs[i] = revScale(v12[i - scan * 12] + cal[i], param_L0, param_L1);
// Threshold and Basic internal MIDI
}
//______________________________________________________________________
// lateral inhib
{
int32_t sub[12];
int32_t *vrs12 = vrs + scan * 12;
for (int k = 1; k < 11; k++) {
sub[k] = (vrs12[k - 1] + vrs12[k + 1]) >> 3;
}
sub[0] = vrs12[1] >> 3;
sub[11] = vrs12[10] >> 3;
for (int k = 0; k < 12; k++) {
vrs12[k] -= sub[k];
if (vrs12[k] < 0)
vrs12[k] = 0;
}
}
for (int i = scan * 12; i < 12 + scan * 12; i++) {
if (gate[i] == 0) {
if (vrs[i] > param_LNoteOn) {
if (scan <= 4 && KBmode == 0) {
an[i] = i + 12 * oct;
PatchMidiInHandler(MIDI_DEVICE_INTERNAL, 0, MIDI_NOTE_ON, an[i], 100);
}
gate[i] = 1;
}
} else {
if (vrs[i] <= 0) {
if (scan <= 4 && KBmode == 0) {
PatchMidiInHandler(MIDI_DEVICE_INTERNAL, 0, MIDI_NOTE_OFF, an[i], 0);
an[i] = -1;
}
if (scan <= 4 && KBmode == 1) {
PatchMidiInHandler(MIDI_DEVICE_INTERNAL, 0, MIDI_PROGRAM_CHANGE, i,
0);
// MidiSend2((midi_device_t) attr_device , MIDI_PROGRAM_CHANGE +
// (attr_channel-1),inlet_pgm&0x7F);
KBmode = 0;
LEDmode = 0;
}
gate[i] = 0;
}
}
int32_t newPress = __USAT(vrs[i] >> 20, 7);
if (abs(press[i] - newPress) >= 1) {
press[i] = newPress;
if (scan <= 4 && KBmode == 0)
PatchMidiInHandler(MIDI_DEVICE_INTERNAL, 0, MIDI_POLY_PRESSURE, an[i],
newPress);
}
//_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
/* if(KBmode == 1 && scan <= 4) { //pc
for(int k = 0; k < 60; k++){
if(vrs[k] > (60 << 20)){
// PC k
PatchMidiInHandler(MIDI_DEVICE_INTERNAL, 0, MIDI_PROGRAM_CHANGE, k,0);
//MidiSend2((midi_device_t) attr_device , MIDI_PROGRAM_CHANGE +
(attr_channel-1),inlet_pgm&0x7F);
KBmode = 0;
LEDmode = 0;
break;
}
}
}*/
//_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
// control keys
if (scan == 5) {
bool vol_minus = vrs[69] > (32 << 21);
bool vol_plus = vrs[70] > (32 << 21);
if (!vol_plus && !vol_minus) {
vol_cpt == 0;
} else {
if ((vol_cpt % 128) == 0) {
if (vol_plus && vol < 127)
vol++;
if (vol_minus && vol > 0)
vol--;
PatchMidiInHandler(MIDI_DEVICE_INTERNAL, 0, MIDI_CONTROL_CHANGE, 7,
vol); // <-------------vol CC
LEDmode = 10;
modeCntDown = 3 * 3000;
}
vol_cpt++;
}
//_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
if (vrs[71] > (60 << 20) && KBmode == 0) {
// all notes off
for (int k = 0; k < 60; k++) {
if (an[k] >= 0) {
PatchMidiInHandler(MIDI_DEVICE_INTERNAL, 0, MIDI_NOTE_OFF, an[k],
0);
an[k] = -1;
gate[k] = 0;
}
}
KBmode = 1;
LEDmode = 1;
modeCntDown = 10 * 3000; // 10s
}
//_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
if (vrs[67] == 0)
octM = false;
if (vrs[67] > (60 << 20) && octM == false) {
octM = true;
if (oct > 1)
oct--;
LEDmode = oct + 1;
modeCntDown = 3 * 3000;
}
//_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
if (vrs[68] == 0)
octP = false;
if (vrs[68] > (60 << 20) && octP == false) {
octP = true;
if (oct < 5)
oct++;
LEDmode = 1 + oct;
modeCntDown = 3 * 3000;
}
//_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
// bend
if (vrs[61] > 0 || vrs[60] > 0) {
bend = ((vrs[61] - vrs[60]) >> (27 - 14)) + 8192;
if (bend >= (1 << 14))
bend = (1 << 14) - 1;
if (bend < 0)
bend = 0;
if (abs(bend - abend) > 5) {
PatchMidiInHandler(MIDI_DEVICE_INTERNAL, 0, MIDI_PITCH_BEND,
bend & 0x7F, bend >> 7);
LEDmode = 11;
modeCntDown = 30000;
}
} else if (bend != 8192) {
bend = 8192;
PatchMidiInHandler(MIDI_DEVICE_INTERNAL, 0, MIDI_PITCH_BEND,
bend & 0x7F, bend >> 7);
LEDmode = 0;
modeCntDown = 0;
}
abend = bend;
}
}
//_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
// max press output (reinject in LED input if needed)
if (KBmode == 0) {
int32_t maxVrs = 0;
for (int k = 0; k < 60; k++) {
if (vrs[k] > maxVrs)
maxVrs = vrs[k];
}
outlet_press = maxVrs;
} else {
outlet_press = 0;
}
for (int i = 0; i < 72; i++) {
// disp_vf[i] = (uint8_t)(v[i]>>20);
disp_vf[i] = (uint8_t)(vrs[i] >> 20);
}
//_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
switch (LEDmode) {
case 0:
LED(inlet_LED);
break;
case 1: {
int t = timeCnt % 3000;
if (t < 750)
LEDOff();
else if (t < 1500)
LEDOn();
else if (t < 1750)
LEDOff();
else if (t < 2000)
LEDBright();
else if (t < 2500)
LEDOff();
else if (t < 2750)
LEDBright();
else
LEDOff();
} break;
case 2:
if ((timeCnt % 325) < 200)
LEDOff();
else
LEDOn();
break;
case 3:
if ((timeCnt % 750) < 500)
LEDOff();
else
LEDOn();
break;
case 4:
LEDOn();
break;
case 5:
if ((timeCnt % 750) < 500)
LEDOff();
else
LEDOn();
break;
case 6:
if ((timeCnt % 325) < 200)
LEDOff();
else
LEDOn();
break;
case 10:
LED(vol << 18);
break;
case 11:
if ((timeCnt % 325) < 100)
LEDOff();
else
LED(abs(bend - 8192) << 13);
break;
default:
LED(inlet_LED);
}
//_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
timeCnt++;
//_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
if (modeCntDown > 0)
modeCntDown--;
else {
LEDmode = 0;
KBmode = 0;
}
outlet_F1 = vrs[62];
outlet_F2 = vrs[63];
outlet_F3 = vrs[64];
outlet_F4 = vrs[65];
outlet_F5 = vrs[66];
}
//_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
if (inlet_calibrate && !calibrate) {
int32_t m = v[0];
for (int k = 1; k < 60; k++) {
if (v[k] < m)
m = v[k];
}
for (int k = 0; k < 60; k++) {
cal[k] = m - v[k];
}
}
calibrate = inlet_calibrate;
//_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
scan++;
if (scan >= 6)
scan = 0;
palWritePad(GPIOC, 4, (scan == 0)); // PC4 low
palWritePad(GPIOC, 5, (scan == 1)); // PC5
palWritePad(GPIOB, 6, (scan == 2)); // PB6
palWritePad(GPIOB, 7, (scan == 3)); // PB7
palWritePad(GPIOB, 8, (scan == 4)); // PB8
palWritePad(GPIOB, 9, (scan == 5)); // PB9
Dispose
pwmStop(&PWMD8);
