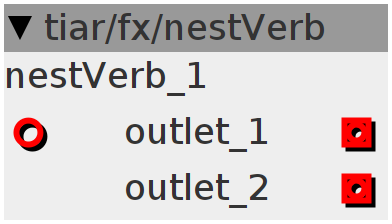

nestVerb
Inlets
frac32buffer inlet_1
Outlets
frac32buffer outlet_1
frac32buffer outlet_2
Declaration
static const uint32_t NPEXCH = 11;
ParameterExchange_t PExch[NPEXCH];
int32_t displayVector[3];
static const uint32_t NPRESETS = 8;
static const uint32_t NPRESET_ENTRIES = 32;
static const uint32_t NMODULATIONSOURCES = 8;
static const uint32_t NMODULATIONTARGETS = 8;
int32_t PExModulationPrevVal[1][NMODULATIONSOURCES];
/* modsource defines */
/* parameter instance indices */
static const int PARAM_INDEX_read__3_time = 0;
static const int PARAM_INDEX_allpass__3_g = 1;
static const int PARAM_INDEX_allpass__4_g = 2;
static const int PARAM_INDEX_lp1__1_freq = 3;
static const int PARAM_INDEX_APNoodle__2_g = 4;
static const int PARAM_INDEX_lp__1_pitch = 5;
static const int PARAM_INDEX_lp__1_reso = 6;
static const int PARAM_INDEX_hp__1_pitch = 7;
static const int PARAM_INDEX_hp__1_reso = 8;
static const int PARAM_INDEX_allpass__1_g = 9;
static const int PARAM_INDEX_allpass__2_g = 10;
/* controller classes */
/* object classes */
class instancedelay4 {
public: // v1
attr_parent *parent;
static const uint32_t LENGTHPOW = (14);
static const uint32_t LENGTH = (1 << 14);
static const uint32_t LENGTHMASK = ((1 << 14) - 1);
int16_t *array;
uint32_t writepos;
public:
void Init(attr_parent *_parent) {
parent = _parent;
static int16_t _array[1][1 << 14] __attribute__((section(".sdram")));
array = &_array[parent->polyIndex][0];
int i;
writepos = 0;
for (i = 0; i < LENGTH; i++)
array[i] = 0;
}
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_in) {
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
writepos = (writepos + 1) & LENGTHMASK;
array[writepos] = __SSAT(inlet_in[buffer_index] >> 14, 16);
}
}
};
class instanceread__3 {
public: // v1
attr_parent *parent;
KeyValuePair KVP_instanceread__3_time;
public:
void Init(attr_parent *_parent) {
parent = _parent;
parent->PExch[PARAM_INDEX_read__3_time].pfunction = pfun_unsigned_clamp;
SetKVP_IPVP(&KVP_instanceread__3_time, ObjectKvpRoot, "read_3",
&parent->PExch[PARAM_INDEX_read__3_time], 0, 1 << 27);
KVP_RegisterObject(&KVP_instanceread__3_time);
}
public:
void Dispose() {}
public:
void dsp(const int32_t inlet_time, int32buffer &outlet_out, int param_time) {
uint32_t delay = parent->instancedelay4_i.writepos -
(__USAT(param_time + inlet_time, 27) >>
(27 - parent->instancedelay4_i.LENGTHPOW)) -
BUFSIZE;
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
outlet_out[buffer_index] =
parent->instancedelay4_i
.array[(delay++) & parent->instancedelay4_i.LENGTHMASK]
<< 14;
}
}
};
class instancenested3 {
public: // v1
attr_parent *parent;
static const uint32_t NPEXCH = 5;
ParameterExchange_t PExch[NPEXCH];
int32_t displayVector[3];
static const uint32_t NPRESETS = 8;
static const uint32_t NPRESET_ENTRIES = 32;
static const uint32_t NMODULATIONSOURCES = 8;
static const uint32_t NMODULATIONTARGETS = 8;
int32_t PExModulationPrevVal[1][NMODULATIONSOURCES];
/* modsource defines */
/* parameter instance indices */
static const int PARAM_INDEX_read__3_time = 0;
static const int PARAM_INDEX_hp1__1_freq = 1;
static const int PARAM_INDEX_allpass__3_g = 2;
static const int PARAM_INDEX_allpass__4_g = 3;
static const int PARAM_INDEX_APNoodle__2_g = 4;
/* controller classes */
/* object classes */
class instancex {
public: // v1
instancenested3 *parent;
int32buffer _inlet;
public:
void Init(instancenested3 *_parent) { parent = _parent; }
public:
void Dispose() {}
public:
void dsp(int32buffer &outlet_inlet) {
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
outlet_inlet[buffer_index] = _inlet[buffer_index];
}
}
};
class instancedelay3 {
public: // v1
instancenested3 *parent;
static const uint32_t LENGTHPOW = (12);
static const uint32_t LENGTH = (1 << 12);
static const uint32_t LENGTHMASK = ((1 << 12) - 1);
int16_t *array;
uint32_t writepos;
public:
void Init(instancenested3 *_parent) {
parent = _parent;
static int16_t _array[1][1 << 12] __attribute__((section(".sdram")));
array = &_array[parent->polyIndex][0];
int i;
writepos = 0;
for (i = 0; i < LENGTH; i++)
array[i] = 0;
}
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_in) {
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
writepos = (writepos + 1) & LENGTHMASK;
array[writepos] = __SSAT(inlet_in[buffer_index] >> 14, 16);
}
}
};
class instanceread__3 {
public: // v1
instancenested3 *parent;
KeyValuePair KVP_instanceread__3_time;
public:
void Init(instancenested3 *_parent) {
parent = _parent;
parent->PExch[PARAM_INDEX_read__3_time].pfunction = pfun_unsigned_clamp;
SetKVP_IPVP(&KVP_instanceread__3_time, ObjectKvpRoot, "read_3",
&parent->PExch[PARAM_INDEX_read__3_time], 0, 1 << 27);
KVP_RegisterObject(&KVP_instanceread__3_time);
}
public:
void Dispose() {}
public:
void dsp(const int32_t inlet_time, int32buffer &outlet_out,
int param_time) {
uint32_t delay = parent->instancedelay3_i.writepos -
(__USAT(param_time + inlet_time, 27) >>
(27 - parent->instancedelay3_i.LENGTHPOW)) -
BUFSIZE;
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
outlet_out[buffer_index] =
parent->instancedelay3_i
.array[(delay++) & parent->instancedelay3_i.LENGTHMASK]
<< 14;
}
}
};
class instancehp1__1 {
public: // v1
instancenested3 *parent;
KeyValuePair KVP_instancehp1__1_freq;
int32_t val;
public:
void Init(instancenested3 *_parent) {
parent = _parent;
parent->PExch[PARAM_INDEX_hp1__1_freq].pfunction = pfun_signed_clamp;
SetKVP_IPVP(&KVP_instancehp1__1_freq, ObjectKvpRoot, "hp1_1",
&parent->PExch[PARAM_INDEX_hp1__1_freq], -1 << 27, 1 << 27);
KVP_RegisterObject(&KVP_instancehp1__1_freq);
val = 0;
}
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_in, int32buffer &outlet_out,
int param_freq) {
int32_t f;
MTOF(param_freq, f);
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
val = ___SMMLA((inlet_in[buffer_index] - val) << 1, f, val);
outlet_out[buffer_index] = inlet_in[buffer_index] - val;
}
}
};
class instancenested2 {
public: // v1
instancenested3 *parent;
static const uint32_t NPEXCH = 5;
ParameterExchange_t PExch[NPEXCH];
int32_t displayVector[3];
static const uint32_t NPRESETS = 8;
static const uint32_t NPRESET_ENTRIES = 32;
static const uint32_t NMODULATIONSOURCES = 8;
static const uint32_t NMODULATIONTARGETS = 8;
int32_t PExModulationPrevVal[1][NMODULATIONSOURCES];
/* modsource defines */
/* parameter instance indices */
static const int PARAM_INDEX_read__2_time = 0;
static const int PARAM_INDEX_allpass__3_g = 1;
static const int PARAM_INDEX_allpass__4_g = 2;
static const int PARAM_INDEX_lp1__1_freq = 3;
static const int PARAM_INDEX_APNoodle__2_g = 4;
/* controller classes */
/* object classes */
class instancex {
public: // v1
instancenested2 *parent;
int32buffer _inlet;
public:
void Init(instancenested2 *_parent) { parent = _parent; }
public:
void Dispose() {}
public:
void dsp(int32buffer &outlet_inlet) {
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
outlet_inlet[buffer_index] = _inlet[buffer_index];
}
}
};
class instancedelay2 {
public: // v1
instancenested2 *parent;
static const uint32_t LENGTHPOW = (11);
static const uint32_t LENGTH = (1 << 11);
static const uint32_t LENGTHMASK = ((1 << 11) - 1);
int16_t *array;
uint32_t writepos;
public:
void Init(instancenested2 *_parent) {
parent = _parent;
static int16_t _array[1][1 << 11] __attribute__((section(".sdram")));
array = &_array[parent->polyIndex][0];
int i;
writepos = 0;
for (i = 0; i < LENGTH; i++)
array[i] = 0;
}
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_in) {
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
writepos = (writepos + 1) & LENGTHMASK;
array[writepos] = __SSAT(inlet_in[buffer_index] >> 14, 16);
}
}
};
class instanceread__2 {
public: // v1
instancenested2 *parent;
KeyValuePair KVP_instanceread__2_time;
public:
void Init(instancenested2 *_parent) {
parent = _parent;
parent->PExch[PARAM_INDEX_read__2_time].pfunction = pfun_unsigned_clamp;
SetKVP_IPVP(&KVP_instanceread__2_time, ObjectKvpRoot, "read_2",
&parent->PExch[PARAM_INDEX_read__2_time], 0, 1 << 27);
KVP_RegisterObject(&KVP_instanceread__2_time);
}
public:
void Dispose() {}
public:
void dsp(const int32_t inlet_time, int32buffer &outlet_out,
int param_time) {
uint32_t delay = parent->instancedelay2_i.writepos -
(__USAT(param_time + inlet_time, 27) >>
(27 - parent->instancedelay2_i.LENGTHPOW)) -
BUFSIZE;
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
outlet_out[buffer_index] =
parent->instancedelay2_i
.array[(delay++) & parent->instancedelay2_i.LENGTHMASK]
<< 14;
}
}
};
class instancenested1 {
public: // v1
instancenested2 *parent;
static const uint32_t NPEXCH = 6;
ParameterExchange_t PExch[NPEXCH];
int32_t displayVector[3];
static const uint32_t NPRESETS = 8;
static const uint32_t NPRESET_ENTRIES = 32;
static const uint32_t NMODULATIONSOURCES = 8;
static const uint32_t NMODULATIONTARGETS = 8;
int32_t PExModulationPrevVal[1][NMODULATIONSOURCES];
/* modsource defines */
/* parameter instance indices */
static const int PARAM_INDEX_read__1_time = 0;
static const int PARAM_INDEX_allpass__1_g = 1;
static const int PARAM_INDEX_allpass__2_g = 2;
static const int PARAM_INDEX_hp1__1_freq = 3;
static const int PARAM_INDEX_lp1__1_freq = 4;
static const int PARAM_INDEX_APNoodle__1_g = 5;
/* controller classes */
/* object classes */
class instancex {
public: // v1
instancenested1 *parent;
int32buffer _inlet;
public:
void Init(instancenested1 *_parent) { parent = _parent; }
public:
void Dispose() {}
public:
void dsp(int32buffer &outlet_inlet) {
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
outlet_inlet[buffer_index] = _inlet[buffer_index];
}
}
};
class instancedelay1 {
public: // v1
instancenested1 *parent;
static const uint32_t LENGTHPOW = (10);
static const uint32_t LENGTH = (1 << 10);
static const uint32_t LENGTHMASK = ((1 << 10) - 1);
int16_t *array;
uint32_t writepos;
public:
void Init(instancenested1 *_parent) {
parent = _parent;
static int16_t _array[1][1 << 10] __attribute__((section(".sdram")));
array = &_array[parent->polyIndex][0];
int i;
writepos = 0;
for (i = 0; i < LENGTH; i++)
array[i] = 0;
}
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_in) {
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
writepos = (writepos + 1) & LENGTHMASK;
array[writepos] = __SSAT(inlet_in[buffer_index] >> 14, 16);
}
}
};
class instanceread__1 {
public: // v1
instancenested1 *parent;
KeyValuePair KVP_instanceread__1_time;
public:
void Init(instancenested1 *_parent) {
parent = _parent;
parent->PExch[PARAM_INDEX_read__1_time].pfunction =
pfun_unsigned_clamp;
SetKVP_IPVP(&KVP_instanceread__1_time, ObjectKvpRoot, "read_1",
&parent->PExch[PARAM_INDEX_read__1_time], 0, 1 << 27);
KVP_RegisterObject(&KVP_instanceread__1_time);
}
public:
void Dispose() {}
public:
void dsp(const int32_t inlet_time, int32buffer &outlet_out,
int param_time) {
uint32_t delay = parent->instancedelay1_i.writepos -
(__USAT(param_time + inlet_time, 27) >>
(27 - parent->instancedelay1_i.LENGTHPOW)) -
BUFSIZE;
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
outlet_out[buffer_index] =
parent->instancedelay1_i
.array[(delay++) & parent->instancedelay1_i.LENGTHMASK]
<< 14;
}
}
};
class instanceallpass__1 {
public: // v1
instancenested1 *parent;
KeyValuePair KVP_instanceallpass__1_g;
int16_t d[52];
int dpos;
public:
void Init(instancenested1 *_parent) {
parent = _parent;
parent->PExch[PARAM_INDEX_allpass__1_g].pfunction = pfun_signed_clamp;
SetKVP_IPVP(&KVP_instanceallpass__1_g, ObjectKvpRoot, "allpass_1",
&parent->PExch[PARAM_INDEX_allpass__1_g], -1 << 27,
1 << 27);
KVP_RegisterObject(&KVP_instanceallpass__1_g);
int i;
for (i = 0; i < 52; i++)
d[i] = 0;
dpos = 0;
}
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_in, int32buffer &outlet_out,
int param_g) {
int32_t g2 = param_g << 4;
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
int32_t dout = d[dpos] << 16;
int32_t din = ___SMMLA(g2, dout, inlet_in[buffer_index] >> 1);
d[dpos++] = din >> 15;
outlet_out[buffer_index] = ___SMMLS(g2, din << 1, dout >> 1) << 1;
if (dpos == 52)
dpos = 0;
}
}
};
class instanceallpass__2 {
public: // v1
instancenested1 *parent;
KeyValuePair KVP_instanceallpass__2_g;
int16_t d[173];
int dpos;
public:
void Init(instancenested1 *_parent) {
parent = _parent;
parent->PExch[PARAM_INDEX_allpass__2_g].pfunction = pfun_signed_clamp;
SetKVP_IPVP(&KVP_instanceallpass__2_g, ObjectKvpRoot, "allpass_2",
&parent->PExch[PARAM_INDEX_allpass__2_g], -1 << 27,
1 << 27);
KVP_RegisterObject(&KVP_instanceallpass__2_g);
int i;
for (i = 0; i < 173; i++)
d[i] = 0;
dpos = 0;
}
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_in, int32buffer &outlet_out,
int param_g) {
int32_t g2 = param_g << 4;
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
int32_t dout = d[dpos] << 16;
int32_t din = ___SMMLA(g2, dout, inlet_in[buffer_index] >> 1);
d[dpos++] = din >> 15;
outlet_out[buffer_index] = ___SMMLS(g2, din << 1, dout >> 1) << 1;
if (dpos == 173)
dpos = 0;
}
}
};
class instancehp1__1 {
public: // v1
instancenested1 *parent;
KeyValuePair KVP_instancehp1__1_freq;
int32_t val;
public:
void Init(instancenested1 *_parent) {
parent = _parent;
parent->PExch[PARAM_INDEX_hp1__1_freq].pfunction = pfun_signed_clamp;
SetKVP_IPVP(&KVP_instancehp1__1_freq, ObjectKvpRoot, "hp1_1",
&parent->PExch[PARAM_INDEX_hp1__1_freq], -1 << 27,
1 << 27);
KVP_RegisterObject(&KVP_instancehp1__1_freq);
val = 0;
}
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_in, int32buffer &outlet_out,
int param_freq) {
int32_t f;
MTOF(param_freq, f);
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
val = ___SMMLA((inlet_in[buffer_index] - val) << 1, f, val);
outlet_out[buffer_index] = inlet_in[buffer_index] - val;
}
}
};
class instancelp1__1 {
public: // v1
instancenested1 *parent;
KeyValuePair KVP_instancelp1__1_freq;
int32_t val;
public:
void Init(instancenested1 *_parent) {
parent = _parent;
parent->PExch[PARAM_INDEX_lp1__1_freq].pfunction = pfun_signed_clamp;
SetKVP_IPVP(&KVP_instancelp1__1_freq, ObjectKvpRoot, "lp1_1",
&parent->PExch[PARAM_INDEX_lp1__1_freq], -1 << 27,
1 << 27);
KVP_RegisterObject(&KVP_instancelp1__1_freq);
val = 0;
}
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_in, int32buffer &outlet_out,
int param_freq) {
int32_t f;
MTOF(param_freq, f);
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
val = ___SMMLA((inlet_in[buffer_index] - val) << 1, f, val);
outlet_out[buffer_index] = val;
}
}
};
class instanceAPNoodle__1 {
public: // v1
instancenested1 *parent;
KeyValuePair KVP_instanceAPNoodle__1_g;
int32_t _g;
public:
void Init(instancenested1 *_parent) {
parent = _parent;
parent->PExch[PARAM_INDEX_APNoodle__1_g].pfunction =
pfun_signed_clamp;
SetKVP_IPVP(&KVP_instanceAPNoodle__1_g, ObjectKvpRoot, "APNoodle_1",
&parent->PExch[PARAM_INDEX_APNoodle__1_g], -1 << 27,
1 << 27);
KVP_RegisterObject(&KVP_instanceAPNoodle__1_g);
}
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_x, const int32buffer inlet_v,
int32buffer &outlet_y, int32buffer &outlet_u, int param_g) {
_g = -param_g;
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
// SMMUL(q27, q27) -> q(27+27-32) = q22
// => inlet_x[buffer_index] q27 -> inlet_x[buffer_index]>>5 q22
// << 5 back to q27
outlet_u[buffer_index] = ___SMMLA(inlet_v[buffer_index], param_g,
inlet_x[buffer_index] >> 5)
<< 5;
outlet_y[buffer_index] =
___SMMLA(outlet_u[buffer_index], _g, inlet_v[buffer_index] >> 5)
<< 5;
}
}
};
class instancey {
public: // v1
instancenested1 *parent;
int32buffer _outlet;
public:
void Init(instancenested1 *_parent) { parent = _parent; }
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_outlet) {
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
_outlet[buffer_index] = inlet_outlet[buffer_index];
}
}
}; /* controller instances */
/* object instances */
instancex instancex_i;
instancedelay1 instancedelay1_i;
instanceread__1 instanceread__1_i;
instanceallpass__1 instanceallpass__1_i;
instanceallpass__2 instanceallpass__2_i;
instancehp1__1 instancehp1__1_i;
instancelp1__1 instancelp1__1_i;
instanceAPNoodle__1 instanceAPNoodle__1_i;
instancey instancey_i;
/* net latches */
int32buffer net0Latch;
static const int polyIndex = 0;
static int32_t *GetInitParams(void) {
static const int32_t p[6] = {116391936, 94371840, 98566144,
-35651584, 69206016, -88080384};
return (int32_t *)&p[0];
}
static const int32_t *GetPresets(void) {
static const int32_t p[NPRESETS][NPRESET_ENTRIES][2] = {
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}},
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}},
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}},
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}},
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}},
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}},
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}},
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}}};
return &p[0][0][0];
};
void ApplyPreset(int index) {
if (!index) {
int i;
int32_t *p = GetInitParams();
for (i = 0; i < NPEXCH; i++) {
PExParameterChange(&PExch[i], p[i], 0xFFEF);
}
}
index--;
if (index < NPRESETS) {
PresetParamChange_t *pa = (PresetParamChange_t *)(GetPresets());
PresetParamChange_t *p = &pa[index * NPRESET_ENTRIES];
int i;
for (i = 0; i < NPRESET_ENTRIES; i++) {
PresetParamChange_t *pp = &p[i];
if ((pp->pexIndex >= 0) && (pp->pexIndex < NPEXCH)) {
PExParameterChange(&PExch[pp->pexIndex], pp->value, 0xFFEF);
} else
break;
}
}
}
static PExModulationTarget_t *GetModulationTable(void) {
static const PExModulationTarget_t
PExModulationSources[NMODULATIONSOURCES][NMODULATIONTARGETS] = {
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}},
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}},
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}},
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}},
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}},
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}},
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}},
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}}};
return (PExModulationTarget_t *)&PExModulationSources[0][0];
};
public:
void Init(instancenested2 *_parent) {
parent = _parent;
int i;
int j;
const int32_t *p;
p = GetInitParams();
for (j = 0; j < 6; j++) {
PExch[j].value = p[j];
PExch[j].modvalue = p[j];
PExch[j].signals = 0;
PExch[j].pfunction = 0;
}
int32_t *pp = &PExModulationPrevVal[0][0];
for (j = 0; j < 1 * NMODULATIONSOURCES; j++) {
*pp = 0;
pp++;
}
displayVector[0] = 0x446F7841;
displayVector[1] = 0;
displayVector[2] = 0;
instancex_i.Init(this);
instancedelay1_i.Init(this);
instanceread__1_i.Init(this);
instanceallpass__1_i.Init(this);
instanceallpass__2_i.Init(this);
instancehp1__1_i.Init(this);
instancelp1__1_i.Init(this);
instanceAPNoodle__1_i.Init(this);
instancey_i.Init(this);
int k;
for (k = 0; k < NPEXCH; k++) {
if (PExch[k].pfunction) {
(PExch[k].pfunction)(&PExch[k]);
} else {
PExch[k].finalvalue = PExch[k].value;
}
}
}
public:
void Dispose() {
instancey_i.Dispose();
instanceAPNoodle__1_i.Dispose();
instancelp1__1_i.Dispose();
instancehp1__1_i.Dispose();
instanceallpass__2_i.Dispose();
instanceallpass__1_i.Dispose();
instanceread__1_i.Dispose();
instancedelay1_i.Dispose();
instancex_i.Dispose();
}
public:
void dsp(const int32buffer inlet_x, int32buffer &outlet_y) {
int i; /*...*/
for (i = 0; i < BUFSIZE; i++)
instancex_i._inlet[i] = inlet_x[i];
//--------- <nets> -----------//
int32buffer net0;
int32buffer net1;
int32buffer net2;
int32buffer net3;
int32buffer net4;
int32buffer net5;
int32buffer net6;
int32buffer net7;
//--------- </nets> ----------//
//--------- <zero> ----------//
int32_t UNCONNECTED_OUTPUT;
static const int32_t UNCONNECTED_INPUT = 0;
static const int32buffer zerobuffer = {0, 0, 0, 0, 0, 0, 0, 0,
0, 0, 0, 0, 0, 0, 0, 0};
int32buffer UNCONNECTED_OUTPUT_BUFFER;
//--------- </zero> ----------//
//--------- <controller calls> ----------//
//--------- <object calls> ----------//
instancex_i.dsp(net3);
instancedelay1_i.dsp(net0Latch);
instanceread__1_i.dsp(0, net1,
PExch[PARAM_INDEX_read__1_time].finalvalue);
instanceallpass__1_i.dsp(net1, net2,
PExch[PARAM_INDEX_allpass__1_g].finalvalue);
instanceallpass__2_i.dsp(net2, net7,
PExch[PARAM_INDEX_allpass__2_g].finalvalue);
instancehp1__1_i.dsp(net7, net6,
PExch[PARAM_INDEX_hp1__1_freq].finalvalue);
instancelp1__1_i.dsp(net6, net5,
PExch[PARAM_INDEX_lp1__1_freq].finalvalue);
instanceAPNoodle__1_i.dsp(net3, net5, net4, net0,
PExch[PARAM_INDEX_APNoodle__1_g].finalvalue);
instancey_i.dsp(net4);
//--------- </object calls> ----------//
//--------- <net latch copy> ----------//
for (i = 0; i < BUFSIZE; i++)
net0Latch[i] = net0[i];
//--------- </net latch copy> ----------//
for (i = 0; i < BUFSIZE; i++)
outlet_y[i] = instancey_i._outlet[i];
}
void MidiInHandler(midi_device_t dev, uint8_t port, uint8_t status,
uint8_t data1, uint8_t data2) {
{
if (attr_mididevice > 0 && dev > 0 && attr_mididevice != dev)
return;
if (attr_midiport > 0 && port > 0 && attr_midiport != port)
return;
}
}
};
class instanceallpass__3 {
public: // v1
instancenested2 *parent;
KeyValuePair KVP_instanceallpass__3_g;
int16_t d[175];
int dpos;
public:
void Init(instancenested2 *_parent) {
parent = _parent;
parent->PExch[PARAM_INDEX_allpass__3_g].pfunction = pfun_signed_clamp;
SetKVP_IPVP(&KVP_instanceallpass__3_g, ObjectKvpRoot, "allpass_3",
&parent->PExch[PARAM_INDEX_allpass__3_g], -1 << 27,
1 << 27);
KVP_RegisterObject(&KVP_instanceallpass__3_g);
int i;
for (i = 0; i < 175; i++)
d[i] = 0;
dpos = 0;
}
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_in, int32buffer &outlet_out,
int param_g) {
int32_t g2 = param_g << 4;
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
int32_t dout = d[dpos] << 16;
int32_t din = ___SMMLA(g2, dout, inlet_in[buffer_index] >> 1);
d[dpos++] = din >> 15;
outlet_out[buffer_index] = ___SMMLS(g2, din << 1, dout >> 1) << 1;
if (dpos == 175)
dpos = 0;
}
}
};
class instanceallpass__4 {
public: // v1
instancenested2 *parent;
KeyValuePair KVP_instanceallpass__4_g;
int16_t d[217];
int dpos;
public:
void Init(instancenested2 *_parent) {
parent = _parent;
parent->PExch[PARAM_INDEX_allpass__4_g].pfunction = pfun_signed_clamp;
SetKVP_IPVP(&KVP_instanceallpass__4_g, ObjectKvpRoot, "allpass_4",
&parent->PExch[PARAM_INDEX_allpass__4_g], -1 << 27,
1 << 27);
KVP_RegisterObject(&KVP_instanceallpass__4_g);
int i;
for (i = 0; i < 217; i++)
d[i] = 0;
dpos = 0;
}
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_in, int32buffer &outlet_out,
int param_g) {
int32_t g2 = param_g << 4;
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
int32_t dout = d[dpos] << 16;
int32_t din = ___SMMLA(g2, dout, inlet_in[buffer_index] >> 1);
d[dpos++] = din >> 15;
outlet_out[buffer_index] = ___SMMLS(g2, din << 1, dout >> 1) << 1;
if (dpos == 217)
dpos = 0;
}
}
};
class instancelp1__1 {
public: // v1
instancenested2 *parent;
KeyValuePair KVP_instancelp1__1_freq;
int32_t val;
public:
void Init(instancenested2 *_parent) {
parent = _parent;
parent->PExch[PARAM_INDEX_lp1__1_freq].pfunction = pfun_signed_clamp;
SetKVP_IPVP(&KVP_instancelp1__1_freq, ObjectKvpRoot, "lp1_1",
&parent->PExch[PARAM_INDEX_lp1__1_freq], -1 << 27, 1 << 27);
KVP_RegisterObject(&KVP_instancelp1__1_freq);
val = 0;
}
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_in, int32buffer &outlet_out,
int param_freq) {
int32_t f;
MTOF(param_freq, f);
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
val = ___SMMLA((inlet_in[buffer_index] - val) << 1, f, val);
outlet_out[buffer_index] = val;
}
}
};
class instanceAPNoodle__2 {
public: // v1
instancenested2 *parent;
KeyValuePair KVP_instanceAPNoodle__2_g;
int32_t _g;
public:
void Init(instancenested2 *_parent) {
parent = _parent;
parent->PExch[PARAM_INDEX_APNoodle__2_g].pfunction = pfun_signed_clamp;
SetKVP_IPVP(&KVP_instanceAPNoodle__2_g, ObjectKvpRoot, "APNoodle_2",
&parent->PExch[PARAM_INDEX_APNoodle__2_g], -1 << 27,
1 << 27);
KVP_RegisterObject(&KVP_instanceAPNoodle__2_g);
}
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_x, const int32buffer inlet_v,
int32buffer &outlet_y, int32buffer &outlet_u, int param_g) {
_g = -param_g;
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
// SMMUL(q27, q27) -> q(27+27-32) = q22
// => inlet_x[buffer_index] q27 -> inlet_x[buffer_index]>>5 q22
// << 5 back to q27
outlet_u[buffer_index] = ___SMMLA(inlet_v[buffer_index], param_g,
inlet_x[buffer_index] >> 5)
<< 5;
outlet_y[buffer_index] =
___SMMLA(outlet_u[buffer_index], _g, inlet_v[buffer_index] >> 5)
<< 5;
}
}
};
class instancey {
public: // v1
instancenested2 *parent;
int32buffer _outlet;
public:
void Init(instancenested2 *_parent) { parent = _parent; }
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_outlet) {
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
_outlet[buffer_index] = inlet_outlet[buffer_index];
}
}
}; /* controller instances */
/* object instances */
instancex instancex_i;
instancedelay2 instancedelay2_i;
instanceread__2 instanceread__2_i;
instancenested1 instancenested1_i;
instanceallpass__3 instanceallpass__3_i;
instanceallpass__4 instanceallpass__4_i;
instancelp1__1 instancelp1__1_i;
instanceAPNoodle__2 instanceAPNoodle__2_i;
instancey instancey_i;
/* net latches */
int32buffer net0Latch;
static const int polyIndex = 0;
static int32_t *GetInitParams(void) {
static const int32_t p[5] = {98566144, 90177536, 90177536, 102760448,
-96468992};
return (int32_t *)&p[0];
}
static const int32_t *GetPresets(void) {
static const int32_t p[NPRESETS][NPRESET_ENTRIES][2] = {
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}},
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}},
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}},
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}},
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}},
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}},
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}},
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}}};
return &p[0][0][0];
};
void ApplyPreset(int index) {
if (!index) {
int i;
int32_t *p = GetInitParams();
for (i = 0; i < NPEXCH; i++) {
PExParameterChange(&PExch[i], p[i], 0xFFEF);
}
}
index--;
if (index < NPRESETS) {
PresetParamChange_t *pa = (PresetParamChange_t *)(GetPresets());
PresetParamChange_t *p = &pa[index * NPRESET_ENTRIES];
int i;
for (i = 0; i < NPRESET_ENTRIES; i++) {
PresetParamChange_t *pp = &p[i];
if ((pp->pexIndex >= 0) && (pp->pexIndex < NPEXCH)) {
PExParameterChange(&PExch[pp->pexIndex], pp->value, 0xFFEF);
} else
break;
}
}
}
static PExModulationTarget_t *GetModulationTable(void) {
static const PExModulationTarget_t
PExModulationSources[NMODULATIONSOURCES][NMODULATIONTARGETS] = {
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}},
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}},
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}},
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}},
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}},
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}},
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}},
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}}};
return (PExModulationTarget_t *)&PExModulationSources[0][0];
};
public:
void Init(instancenested3 *_parent) {
parent = _parent;
int i;
int j;
const int32_t *p;
p = GetInitParams();
for (j = 0; j < 5; j++) {
PExch[j].value = p[j];
PExch[j].modvalue = p[j];
PExch[j].signals = 0;
PExch[j].pfunction = 0;
}
int32_t *pp = &PExModulationPrevVal[0][0];
for (j = 0; j < 1 * NMODULATIONSOURCES; j++) {
*pp = 0;
pp++;
}
displayVector[0] = 0x446F7841;
displayVector[1] = 0;
displayVector[2] = 0;
instancex_i.Init(this);
instancedelay2_i.Init(this);
instanceread__2_i.Init(this);
instancenested1_i.Init(this);
instanceallpass__3_i.Init(this);
instanceallpass__4_i.Init(this);
instancelp1__1_i.Init(this);
instanceAPNoodle__2_i.Init(this);
instancey_i.Init(this);
int k;
for (k = 0; k < NPEXCH; k++) {
if (PExch[k].pfunction) {
(PExch[k].pfunction)(&PExch[k]);
} else {
PExch[k].finalvalue = PExch[k].value;
}
}
}
public:
void Dispose() {
instancey_i.Dispose();
instanceAPNoodle__2_i.Dispose();
instancelp1__1_i.Dispose();
instanceallpass__4_i.Dispose();
instanceallpass__3_i.Dispose();
instancenested1_i.Dispose();
instanceread__2_i.Dispose();
instancedelay2_i.Dispose();
instancex_i.Dispose();
}
public:
void dsp(const int32buffer inlet_x, int32buffer &outlet_y) {
int i; /*...*/
for (i = 0; i < BUFSIZE; i++)
instancex_i._inlet[i] = inlet_x[i];
//--------- <nets> -----------//
int32buffer net0;
int32buffer net1;
int32buffer net2;
int32buffer net3;
int32buffer net4;
int32buffer net5;
int32buffer net6;
int32buffer net7;
//--------- </nets> ----------//
//--------- <zero> ----------//
int32_t UNCONNECTED_OUTPUT;
static const int32_t UNCONNECTED_INPUT = 0;
static const int32buffer zerobuffer = {0, 0, 0, 0, 0, 0, 0, 0,
0, 0, 0, 0, 0, 0, 0, 0};
int32buffer UNCONNECTED_OUTPUT_BUFFER;
//--------- </zero> ----------//
//--------- <controller calls> ----------//
//--------- <object calls> ----------//
instancex_i.dsp(net5);
instancedelay2_i.dsp(net0Latch);
instanceread__2_i.dsp(0, net1,
PExch[PARAM_INDEX_read__2_time].finalvalue);
instancenested1_i.dsp(net1, net2);
instanceallpass__3_i.dsp(net2, net3,
PExch[PARAM_INDEX_allpass__3_g].finalvalue);
instanceallpass__4_i.dsp(net3, net7,
PExch[PARAM_INDEX_allpass__4_g].finalvalue);
instancelp1__1_i.dsp(net7, net6,
PExch[PARAM_INDEX_lp1__1_freq].finalvalue);
instanceAPNoodle__2_i.dsp(net5, net6, net4, net0,
PExch[PARAM_INDEX_APNoodle__2_g].finalvalue);
instancey_i.dsp(net4);
//--------- </object calls> ----------//
//--------- <net latch copy> ----------//
for (i = 0; i < BUFSIZE; i++)
net0Latch[i] = net0[i];
//--------- </net latch copy> ----------//
for (i = 0; i < BUFSIZE; i++)
outlet_y[i] = instancey_i._outlet[i];
}
void MidiInHandler(midi_device_t dev, uint8_t port, uint8_t status,
uint8_t data1, uint8_t data2) {
{
if (attr_mididevice > 0 && dev > 0 && attr_mididevice != dev)
return;
if (attr_midiport > 0 && port > 0 && attr_midiport != port)
return;
instancenested1_i.MidiInHandler(dev, port, status, data1, data2);
}
}
};
class instanceallpass__3 {
public: // v1
instancenested3 *parent;
KeyValuePair KVP_instanceallpass__3_g;
int16_t d[49];
int dpos;
public:
void Init(instancenested3 *_parent) {
parent = _parent;
parent->PExch[PARAM_INDEX_allpass__3_g].pfunction = pfun_signed_clamp;
SetKVP_IPVP(&KVP_instanceallpass__3_g, ObjectKvpRoot, "allpass_3",
&parent->PExch[PARAM_INDEX_allpass__3_g], -1 << 27, 1 << 27);
KVP_RegisterObject(&KVP_instanceallpass__3_g);
int i;
for (i = 0; i < 49; i++)
d[i] = 0;
dpos = 0;
}
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_in, int32buffer &outlet_out, int param_g) {
int32_t g2 = param_g << 4;
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
int32_t dout = d[dpos] << 16;
int32_t din = ___SMMLA(g2, dout, inlet_in[buffer_index] >> 1);
d[dpos++] = din >> 15;
outlet_out[buffer_index] = ___SMMLS(g2, din << 1, dout >> 1) << 1;
if (dpos == 49)
dpos = 0;
}
}
};
class instanceallpass__4 {
public: // v1
instancenested3 *parent;
KeyValuePair KVP_instanceallpass__4_g;
int16_t d[411];
int dpos;
public:
void Init(instancenested3 *_parent) {
parent = _parent;
parent->PExch[PARAM_INDEX_allpass__4_g].pfunction = pfun_signed_clamp;
SetKVP_IPVP(&KVP_instanceallpass__4_g, ObjectKvpRoot, "allpass_4",
&parent->PExch[PARAM_INDEX_allpass__4_g], -1 << 27, 1 << 27);
KVP_RegisterObject(&KVP_instanceallpass__4_g);
int i;
for (i = 0; i < 411; i++)
d[i] = 0;
dpos = 0;
}
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_in, int32buffer &outlet_out, int param_g) {
int32_t g2 = param_g << 4;
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
int32_t dout = d[dpos] << 16;
int32_t din = ___SMMLA(g2, dout, inlet_in[buffer_index] >> 1);
d[dpos++] = din >> 15;
outlet_out[buffer_index] = ___SMMLS(g2, din << 1, dout >> 1) << 1;
if (dpos == 411)
dpos = 0;
}
}
};
class instanceAPNoodle__2 {
public: // v1
instancenested3 *parent;
KeyValuePair KVP_instanceAPNoodle__2_g;
int32_t _g;
public:
void Init(instancenested3 *_parent) {
parent = _parent;
parent->PExch[PARAM_INDEX_APNoodle__2_g].pfunction = pfun_signed_clamp;
SetKVP_IPVP(&KVP_instanceAPNoodle__2_g, ObjectKvpRoot, "APNoodle_2",
&parent->PExch[PARAM_INDEX_APNoodle__2_g], -1 << 27, 1 << 27);
KVP_RegisterObject(&KVP_instanceAPNoodle__2_g);
}
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_x, const int32buffer inlet_v,
int32buffer &outlet_y, int32buffer &outlet_u, int param_g) {
_g = -param_g;
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
// SMMUL(q27, q27) -> q(27+27-32) = q22
// => inlet_x[buffer_index] q27 -> inlet_x[buffer_index]>>5 q22
// << 5 back to q27
outlet_u[buffer_index] =
___SMMLA(inlet_v[buffer_index], param_g, inlet_x[buffer_index] >> 5)
<< 5;
outlet_y[buffer_index] =
___SMMLA(outlet_u[buffer_index], _g, inlet_v[buffer_index] >> 5)
<< 5;
}
}
};
class instancey {
public: // v1
instancenested3 *parent;
int32buffer _outlet;
public:
void Init(instancenested3 *_parent) { parent = _parent; }
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_outlet) {
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
_outlet[buffer_index] = inlet_outlet[buffer_index];
}
}
}; /* controller instances */
/* object instances */
instancex instancex_i;
instancedelay3 instancedelay3_i;
instanceread__3 instanceread__3_i;
instancehp1__1 instancehp1__1_i;
instancenested2 instancenested2_i;
instanceallpass__3 instanceallpass__3_i;
instanceallpass__4 instanceallpass__4_i;
instanceAPNoodle__2 instanceAPNoodle__2_i;
instancey instancey_i;
/* net latches */
int32buffer net0Latch;
static const int polyIndex = 0;
static int32_t *GetInitParams(void) {
static const int32_t p[5] = {122484162, -6291456, 90177536, 90177536,
-96468992};
return (int32_t *)&p[0];
}
static const int32_t *GetPresets(void) {
static const int32_t p[NPRESETS][NPRESET_ENTRIES][2] = {
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}},
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}},
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}},
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}},
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}},
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}},
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}},
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}}};
return &p[0][0][0];
};
void ApplyPreset(int index) {
if (!index) {
int i;
int32_t *p = GetInitParams();
for (i = 0; i < NPEXCH; i++) {
PExParameterChange(&PExch[i], p[i], 0xFFEF);
}
}
index--;
if (index < NPRESETS) {
PresetParamChange_t *pa = (PresetParamChange_t *)(GetPresets());
PresetParamChange_t *p = &pa[index * NPRESET_ENTRIES];
int i;
for (i = 0; i < NPRESET_ENTRIES; i++) {
PresetParamChange_t *pp = &p[i];
if ((pp->pexIndex >= 0) && (pp->pexIndex < NPEXCH)) {
PExParameterChange(&PExch[pp->pexIndex], pp->value, 0xFFEF);
} else
break;
}
}
}
static PExModulationTarget_t *GetModulationTable(void) {
static const PExModulationTarget_t
PExModulationSources[NMODULATIONSOURCES][NMODULATIONTARGETS] = {
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}},
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}},
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}},
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}},
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}},
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}},
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}},
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}}};
return (PExModulationTarget_t *)&PExModulationSources[0][0];
};
public:
void Init(attr_parent *_parent) {
parent = _parent;
int i;
int j;
const int32_t *p;
p = GetInitParams();
for (j = 0; j < 5; j++) {
PExch[j].value = p[j];
PExch[j].modvalue = p[j];
PExch[j].signals = 0;
PExch[j].pfunction = 0;
}
int32_t *pp = &PExModulationPrevVal[0][0];
for (j = 0; j < 1 * NMODULATIONSOURCES; j++) {
*pp = 0;
pp++;
}
displayVector[0] = 0x446F7841;
displayVector[1] = 0;
displayVector[2] = 0;
instancex_i.Init(this);
instancedelay3_i.Init(this);
instanceread__3_i.Init(this);
instancehp1__1_i.Init(this);
instancenested2_i.Init(this);
instanceallpass__3_i.Init(this);
instanceallpass__4_i.Init(this);
instanceAPNoodle__2_i.Init(this);
instancey_i.Init(this);
int k;
for (k = 0; k < NPEXCH; k++) {
if (PExch[k].pfunction) {
(PExch[k].pfunction)(&PExch[k]);
} else {
PExch[k].finalvalue = PExch[k].value;
}
}
}
public:
void Dispose() {
instancey_i.Dispose();
instanceAPNoodle__2_i.Dispose();
instanceallpass__4_i.Dispose();
instanceallpass__3_i.Dispose();
instancenested2_i.Dispose();
instancehp1__1_i.Dispose();
instanceread__3_i.Dispose();
instancedelay3_i.Dispose();
instancex_i.Dispose();
}
public:
void dsp(const int32buffer inlet_x, int32buffer &outlet_y) {
int i; /*...*/
for (i = 0; i < BUFSIZE; i++)
instancex_i._inlet[i] = inlet_x[i];
//--------- <nets> -----------//
int32buffer net0;
int32buffer net1;
int32buffer net2;
int32buffer net3;
int32buffer net4;
int32buffer net5;
int32buffer net6;
int32buffer net7;
//--------- </nets> ----------//
//--------- <zero> ----------//
int32_t UNCONNECTED_OUTPUT;
static const int32_t UNCONNECTED_INPUT = 0;
static const int32buffer zerobuffer = {0, 0, 0, 0, 0, 0, 0, 0,
0, 0, 0, 0, 0, 0, 0, 0};
int32buffer UNCONNECTED_OUTPUT_BUFFER;
//--------- </zero> ----------//
//--------- <controller calls> ----------//
//--------- <object calls> ----------//
instancex_i.dsp(net5);
instancedelay3_i.dsp(net0Latch);
instanceread__3_i.dsp(0, net7, PExch[PARAM_INDEX_read__3_time].finalvalue);
instancehp1__1_i.dsp(net7, net6, PExch[PARAM_INDEX_hp1__1_freq].finalvalue);
instancenested2_i.dsp(net6, net3);
instanceallpass__3_i.dsp(net3, net2,
PExch[PARAM_INDEX_allpass__3_g].finalvalue);
instanceallpass__4_i.dsp(net2, net1,
PExch[PARAM_INDEX_allpass__4_g].finalvalue);
instanceAPNoodle__2_i.dsp(net5, net1, net4, net0,
PExch[PARAM_INDEX_APNoodle__2_g].finalvalue);
instancey_i.dsp(net4);
//--------- </object calls> ----------//
//--------- <net latch copy> ----------//
for (i = 0; i < BUFSIZE; i++)
net0Latch[i] = net0[i];
//--------- </net latch copy> ----------//
for (i = 0; i < BUFSIZE; i++)
outlet_y[i] = instancey_i._outlet[i];
}
void MidiInHandler(midi_device_t dev, uint8_t port, uint8_t status,
uint8_t data1, uint8_t data2) {
{
if (attr_mididevice > 0 && dev > 0 && attr_mididevice != dev)
return;
if (attr_midiport > 0 && port > 0 && attr_midiport != port)
return;
instancenested2_i.MidiInHandler(dev, port, status, data1, data2);
}
}
};
class instanceallpass__3 {
public: // v1
attr_parent *parent;
KeyValuePair KVP_instanceallpass__3_g;
int16_t d[91];
int dpos;
public:
void Init(attr_parent *_parent) {
parent = _parent;
parent->PExch[PARAM_INDEX_allpass__3_g].pfunction = pfun_signed_clamp;
SetKVP_IPVP(&KVP_instanceallpass__3_g, ObjectKvpRoot, "allpass_3",
&parent->PExch[PARAM_INDEX_allpass__3_g], -1 << 27, 1 << 27);
KVP_RegisterObject(&KVP_instanceallpass__3_g);
int i;
for (i = 0; i < 91; i++)
d[i] = 0;
dpos = 0;
}
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_in, int32buffer &outlet_out, int param_g) {
int32_t g2 = param_g << 4;
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
int32_t dout = d[dpos] << 16;
int32_t din = ___SMMLA(g2, dout, inlet_in[buffer_index] >> 1);
d[dpos++] = din >> 15;
outlet_out[buffer_index] = ___SMMLS(g2, din << 1, dout >> 1) << 1;
if (dpos == 91)
dpos = 0;
}
}
};
class instanceallpass__4 {
public: // v1
attr_parent *parent;
KeyValuePair KVP_instanceallpass__4_g;
int16_t d[421];
int dpos;
public:
void Init(attr_parent *_parent) {
parent = _parent;
parent->PExch[PARAM_INDEX_allpass__4_g].pfunction = pfun_signed_clamp;
SetKVP_IPVP(&KVP_instanceallpass__4_g, ObjectKvpRoot, "allpass_4",
&parent->PExch[PARAM_INDEX_allpass__4_g], -1 << 27, 1 << 27);
KVP_RegisterObject(&KVP_instanceallpass__4_g);
int i;
for (i = 0; i < 421; i++)
d[i] = 0;
dpos = 0;
}
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_in, int32buffer &outlet_out, int param_g) {
int32_t g2 = param_g << 4;
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
int32_t dout = d[dpos] << 16;
int32_t din = ___SMMLA(g2, dout, inlet_in[buffer_index] >> 1);
d[dpos++] = din >> 15;
outlet_out[buffer_index] = ___SMMLS(g2, din << 1, dout >> 1) << 1;
if (dpos == 421)
dpos = 0;
}
}
};
class instancelp1__1 {
public: // v1
attr_parent *parent;
KeyValuePair KVP_instancelp1__1_freq;
int32_t val;
public:
void Init(attr_parent *_parent) {
parent = _parent;
parent->PExch[PARAM_INDEX_lp1__1_freq].pfunction = pfun_signed_clamp;
SetKVP_IPVP(&KVP_instancelp1__1_freq, ObjectKvpRoot, "lp1_1",
&parent->PExch[PARAM_INDEX_lp1__1_freq], -1 << 27, 1 << 27);
KVP_RegisterObject(&KVP_instancelp1__1_freq);
val = 0;
}
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_in, int32buffer &outlet_out,
int param_freq) {
int32_t f;
MTOF(param_freq, f);
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
val = ___SMMLA((inlet_in[buffer_index] - val) << 1, f, val);
outlet_out[buffer_index] = val;
}
}
};
class instanceinlet__1 {
public: // v1
attr_parent *parent;
int32buffer _inlet;
public:
void Init(attr_parent *_parent) { parent = _parent; }
public:
void Dispose() {}
public:
void dsp(int32buffer &outlet_inlet) {
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
outlet_inlet[buffer_index] = _inlet[buffer_index];
}
}
};
class instanceAPNoodle__2 {
public: // v1
attr_parent *parent;
KeyValuePair KVP_instanceAPNoodle__2_g;
int32_t _g;
public:
void Init(attr_parent *_parent) {
parent = _parent;
parent->PExch[PARAM_INDEX_APNoodle__2_g].pfunction = pfun_signed_clamp;
SetKVP_IPVP(&KVP_instanceAPNoodle__2_g, ObjectKvpRoot, "APNoodle_2",
&parent->PExch[PARAM_INDEX_APNoodle__2_g], -1 << 27, 1 << 27);
KVP_RegisterObject(&KVP_instanceAPNoodle__2_g);
}
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_x, const int32buffer inlet_v,
int32buffer &outlet_y, int32buffer &outlet_u, int param_g) {
_g = -param_g;
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
// SMMUL(q27, q27) -> q(27+27-32) = q22
// => inlet_x[buffer_index] q27 -> inlet_x[buffer_index]>>5 q22
// << 5 back to q27
outlet_u[buffer_index] =
___SMMLA(inlet_v[buffer_index], param_g, inlet_x[buffer_index] >> 5)
<< 5;
outlet_y[buffer_index] =
___SMMLA(outlet_u[buffer_index], _g, inlet_v[buffer_index] >> 5) << 5;
}
}
};
class instancelp__1 {
public: // v1
attr_parent *parent;
KeyValuePair KVP_instancelp__1_pitch;
KeyValuePair KVP_instancelp__1_reso;
biquad_state bs;
biquad_coefficients bc;
public:
void Init(attr_parent *_parent) {
parent = _parent;
parent->PExch[PARAM_INDEX_lp__1_pitch].pfunction = pfun_signed_clamp;
SetKVP_IPVP(&KVP_instancelp__1_pitch, ObjectKvpRoot, "lp_1:pitch",
&parent->PExch[PARAM_INDEX_lp__1_pitch], -1 << 27, 1 << 27);
KVP_RegisterObject(&KVP_instancelp__1_pitch);
parent->PExch[PARAM_INDEX_lp__1_reso].pfunction = pfun_unsigned_clamp;
SetKVP_IPVP(&KVP_instancelp__1_reso, ObjectKvpRoot, "lp_1:reso",
&parent->PExch[PARAM_INDEX_lp__1_reso], 0, 1 << 27);
KVP_RegisterObject(&KVP_instancelp__1_reso);
biquad_clearstate(&bs);
}
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_in, int32buffer &outlet_out, int param_pitch,
int param_reso) {
int32_t freq;
MTOF(param_pitch, freq);
biquad_lp_coefs(&bc, freq, INT_MAX - (__USAT(param_reso, 27) << 4));
biquad_dsp(&bs, &bc, inlet_in, outlet_out);
}
};
class instancehp__1 {
public: // v1
attr_parent *parent;
KeyValuePair KVP_instancehp__1_pitch;
KeyValuePair KVP_instancehp__1_reso;
biquad_state bs;
biquad_coefficients bc;
public:
void Init(attr_parent *_parent) {
parent = _parent;
parent->PExch[PARAM_INDEX_hp__1_pitch].pfunction = pfun_signed_clamp;
SetKVP_IPVP(&KVP_instancehp__1_pitch, ObjectKvpRoot, "hp_1:pitch",
&parent->PExch[PARAM_INDEX_hp__1_pitch], -1 << 27, 1 << 27);
KVP_RegisterObject(&KVP_instancehp__1_pitch);
parent->PExch[PARAM_INDEX_hp__1_reso].pfunction = pfun_unsigned_clamp;
SetKVP_IPVP(&KVP_instancehp__1_reso, ObjectKvpRoot, "hp_1:reso",
&parent->PExch[PARAM_INDEX_hp__1_reso], 0, 1 << 27);
KVP_RegisterObject(&KVP_instancehp__1_reso);
biquad_clearstate(&bs);
}
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_in, int32buffer &outlet_out, int param_pitch,
int param_reso) {
int32_t freq;
MTOF(param_pitch, freq);
biquad_hp_coefs(&bc, freq, INT_MAX - (__USAT(param_reso, 27) << 4));
biquad_dsp(&bs, &bc, inlet_in, outlet_out);
}
};
class instanceallpass__1 {
public: // v1
attr_parent *parent;
KeyValuePair KVP_instanceallpass__1_g;
int16_t d[725];
int dpos;
public:
void Init(attr_parent *_parent) {
parent = _parent;
parent->PExch[PARAM_INDEX_allpass__1_g].pfunction = pfun_signed_clamp;
SetKVP_IPVP(&KVP_instanceallpass__1_g, ObjectKvpRoot, "allpass_1",
&parent->PExch[PARAM_INDEX_allpass__1_g], -1 << 27, 1 << 27);
KVP_RegisterObject(&KVP_instanceallpass__1_g);
int i;
for (i = 0; i < 725; i++)
d[i] = 0;
dpos = 0;
}
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_in, int32buffer &outlet_out, int param_g) {
int32_t g2 = param_g << 4;
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
int32_t dout = d[dpos] << 16;
int32_t din = ___SMMLA(g2, dout, inlet_in[buffer_index] >> 1);
d[dpos++] = din >> 15;
outlet_out[buffer_index] = ___SMMLS(g2, din << 1, dout >> 1) << 1;
if (dpos == 725)
dpos = 0;
}
}
};
class instance_plus___1 {
public: // v1
attr_parent *parent;
public:
void Init(attr_parent *_parent) { parent = _parent; }
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_in1, const int32buffer inlet_in2,
int32buffer &outlet_out) {
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
outlet_out[buffer_index] =
inlet_in1[buffer_index] + inlet_in2[buffer_index];
}
}
};
class instanceoutlet__1 {
public: // v1
attr_parent *parent;
int32buffer _outlet;
public:
void Init(attr_parent *_parent) { parent = _parent; }
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_outlet) {
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
_outlet[buffer_index] = inlet_outlet[buffer_index];
}
}
};
class instanceallpass__2 {
public: // v1
attr_parent *parent;
KeyValuePair KVP_instanceallpass__2_g;
int16_t d[526];
int dpos;
public:
void Init(attr_parent *_parent) {
parent = _parent;
parent->PExch[PARAM_INDEX_allpass__2_g].pfunction = pfun_signed_clamp;
SetKVP_IPVP(&KVP_instanceallpass__2_g, ObjectKvpRoot, "allpass_2",
&parent->PExch[PARAM_INDEX_allpass__2_g], -1 << 27, 1 << 27);
KVP_RegisterObject(&KVP_instanceallpass__2_g);
int i;
for (i = 0; i < 526; i++)
d[i] = 0;
dpos = 0;
}
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_in, int32buffer &outlet_out, int param_g) {
int32_t g2 = param_g << 4;
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
int32_t dout = d[dpos] << 16;
int32_t din = ___SMMLA(g2, dout, inlet_in[buffer_index] >> 1);
d[dpos++] = din >> 15;
outlet_out[buffer_index] = ___SMMLS(g2, din << 1, dout >> 1) << 1;
if (dpos == 526)
dpos = 0;
}
}
};
class instance_plus___2 {
public: // v1
attr_parent *parent;
public:
void Init(attr_parent *_parent) { parent = _parent; }
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_in1, const int32buffer inlet_in2,
int32buffer &outlet_out) {
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
outlet_out[buffer_index] =
inlet_in1[buffer_index] + inlet_in2[buffer_index];
}
}
};
class instanceoutlet__2 {
public: // v1
attr_parent *parent;
int32buffer _outlet;
public:
void Init(attr_parent *_parent) { parent = _parent; }
public:
void Dispose() {}
public:
void dsp(const int32buffer inlet_outlet) {
int buffer_index;
for (buffer_index = 0; buffer_index < BUFSIZE; buffer_index++) {
_outlet[buffer_index] = inlet_outlet[buffer_index];
}
}
}; /* controller instances */
/* object instances */
instancedelay4 instancedelay4_i;
instanceread__3 instanceread__3_i;
instancenested3 instancenested3_i;
instanceallpass__3 instanceallpass__3_i;
instanceallpass__4 instanceallpass__4_i;
instancelp1__1 instancelp1__1_i;
instanceinlet__1 instanceinlet__1_i;
instanceAPNoodle__2 instanceAPNoodle__2_i;
instancelp__1 instancelp__1_i;
instancehp__1 instancehp__1_i;
instanceallpass__1 instanceallpass__1_i;
instance_plus___1 instance_plus___1_i;
instanceoutlet__1 instanceoutlet__1_i;
instanceallpass__2 instanceallpass__2_i;
instance_plus___2 instance_plus___2_i;
instanceoutlet__2 instanceoutlet__2_i;
/* net latches */
int32buffer net0Latch;
static const int polyIndex = 0;
static int32_t *GetInitParams(void) {
static const int32_t p[11] = {121435586, 90177536, 90177536, 111149056,
-96468992, 0, 0, 0,
0, 96468992, -96468992};
return (int32_t *)&p[0];
}
static const int32_t *GetPresets(void) {
static const int32_t p[NPRESETS][NPRESET_ENTRIES][2] = {
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}},
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}},
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}},
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}},
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}},
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}},
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}},
{{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0},
{-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}, {-1, 0}}};
return &p[0][0][0];
};
void ApplyPreset(int index) {
if (!index) {
int i;
int32_t *p = GetInitParams();
for (i = 0; i < NPEXCH; i++) {
PExParameterChange(&PExch[i], p[i], 0xFFEF);
}
}
index--;
if (index < NPRESETS) {
PresetParamChange_t *pa = (PresetParamChange_t *)(GetPresets());
PresetParamChange_t *p = &pa[index * NPRESET_ENTRIES];
int i;
for (i = 0; i < NPRESET_ENTRIES; i++) {
PresetParamChange_t *pp = &p[i];
if ((pp->pexIndex >= 0) && (pp->pexIndex < NPEXCH)) {
PExParameterChange(&PExch[pp->pexIndex], pp->value, 0xFFEF);
} else
break;
}
}
}
static PExModulationTarget_t *GetModulationTable(void) {
static const PExModulationTarget_t
PExModulationSources[NMODULATIONSOURCES][NMODULATIONTARGETS] = {
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}},
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}},
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}},
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}},
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}},
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}},
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}},
{{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0},
{-1, 0}}};
return (PExModulationTarget_t *)&PExModulationSources[0][0];
};
Init
int i;
int j;
const int32_t *p;
p = GetInitParams();
for (j = 0; j < 11; j++) {
PExch[j].value = p[j];
PExch[j].modvalue = p[j];
PExch[j].signals = 0;
PExch[j].pfunction = 0;
}
int32_t *pp = &PExModulationPrevVal[0][0];
for (j = 0; j < attr_poly * NMODULATIONSOURCES; j++) {
*pp = 0;
pp++;
}
displayVector[0] = 0x446F7841;
displayVector[1] = 0;
displayVector[2] = 0;
instancedelay4_i.Init(this);
instanceread__3_i.Init(this);
instancenested3_i.Init(this);
instanceallpass__3_i.Init(this);
instanceallpass__4_i.Init(this);
instancelp1__1_i.Init(this);
instanceinlet__1_i.Init(this);
instanceAPNoodle__2_i.Init(this);
instancelp__1_i.Init(this);
instancehp__1_i.Init(this);
instanceallpass__1_i.Init(this);
instance_plus___1_i.Init(this);
instanceoutlet__1_i.Init(this);
instanceallpass__2_i.Init(this);
instance_plus___2_i.Init(this);
instanceoutlet__2_i.Init(this);
int k;
for (k = 0; k < NPEXCH; k++) {
if (PExch[k].pfunction) {
(PExch[k].pfunction)(&PExch[k]);
} else {
PExch[k].finalvalue = PExch[k].value;
}
}
Control Rate
int i; /*...*/
for (i = 0; i < BUFSIZE; i++)
instanceinlet__1_i._inlet[i] = inlet_inlet__1[i];
//--------- <nets> -----------//
int32buffer net0;
int32buffer net1;
int32buffer net2;
int32buffer net3;
int32buffer net4;
int32buffer net5;
int32buffer net6;
int32buffer net7;
int32buffer net8;
int32buffer net9;
int32buffer net10;
int32buffer net11;
int32buffer net12;
int32buffer net13;
//--------- </nets> ----------//
//--------- <zero> ----------//
int32_t UNCONNECTED_OUTPUT;
static const int32_t UNCONNECTED_INPUT = 0;
static const int32buffer zerobuffer = {0, 0, 0, 0, 0, 0, 0, 0,
0, 0, 0, 0, 0, 0, 0, 0};
int32buffer UNCONNECTED_OUTPUT_BUFFER;
//--------- </zero> ----------//
//--------- <controller calls> ----------//
//--------- <object calls> ----------//
instancedelay4_i.dsp(net0Latch);
instanceread__3_i.dsp(0, net3, PExch[PARAM_INDEX_read__3_time].finalvalue);
instancenested3_i.dsp(net3, net4);
instanceallpass__3_i.dsp(net4, net2,
PExch[PARAM_INDEX_allpass__3_g].finalvalue);
instanceallpass__4_i.dsp(net2, net6,
PExch[PARAM_INDEX_allpass__4_g].finalvalue);
instancelp1__1_i.dsp(net6, net5, PExch[PARAM_INDEX_lp1__1_freq].finalvalue);
instanceinlet__1_i.dsp(net9);
instanceAPNoodle__2_i.dsp(net9, net5, net1, net0,
PExch[PARAM_INDEX_APNoodle__2_g].finalvalue);
instancelp__1_i.dsp(net1, net10, PExch[PARAM_INDEX_lp__1_pitch].finalvalue,
PExch[PARAM_INDEX_lp__1_reso].finalvalue);
instancehp__1_i.dsp(net1, net7, PExch[PARAM_INDEX_hp__1_pitch].finalvalue,
PExch[PARAM_INDEX_hp__1_reso].finalvalue);
instanceallpass__1_i.dsp(net7, net8,
PExch[PARAM_INDEX_allpass__1_g].finalvalue);
instance_plus___1_i.dsp(net8, net10, net11);
instanceoutlet__1_i.dsp(net11);
instanceallpass__2_i.dsp(net7, net13,
PExch[PARAM_INDEX_allpass__2_g].finalvalue);
instance_plus___2_i.dsp(net13, net10, net12);
instanceoutlet__2_i.dsp(net12);
//--------- </object calls> ----------//
//--------- <net latch copy> ----------//
for (i = 0; i < BUFSIZE; i++)
net0Latch[i] = net0[i];
//--------- </net latch copy> ----------//
for (i = 0; i < BUFSIZE; i++)
outlet_outlet__1[i] = instanceoutlet__1_i._outlet[i];
for (i = 0; i < BUFSIZE; i++)
outlet_outlet__2[i] = instanceoutlet__2_i._outlet[i];
Dispose
instanceoutlet__2_i.Dispose();
instance_plus___2_i.Dispose();
instanceallpass__2_i.Dispose();
instanceoutlet__1_i.Dispose();
instance_plus___1_i.Dispose();
instanceallpass__1_i.Dispose();
instancehp__1_i.Dispose();
instancelp__1_i.Dispose();
instanceAPNoodle__2_i.Dispose();
instanceinlet__1_i.Dispose();
instancelp1__1_i.Dispose();
instanceallpass__4_i.Dispose();
instanceallpass__3_i.Dispose();
instancenested3_i.Dispose();
instanceread__3_i.Dispose();
instancedelay4_i.Dispose();
Midi Handler
if (attr_mididevice > 0 && dev > 0 && attr_mididevice != dev)
return;
if (attr_midiport > 0 && port > 0 && attr_midiport != port)
return;
instancenested3_i.MidiInHandler(dev, port, status, data1, data2);
