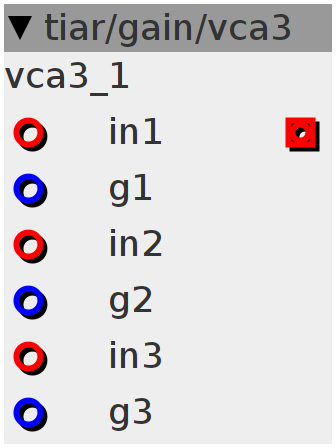

vca3
3 input vca
Inlets
frac32buffer in1
frac32buffer in2
frac32buffer in3
frac32 g1
frac32 g2
frac32 g3
Outlets
frac32buffer mix out
Declaration
int32_t g1 = 0, g2 = 0, g3 = 0;
Control Rate
int32_t dg1 = (inlet_g1 - g1) >> 4;
int32_t dg2 = (inlet_g2 - g2) >> 4;
int32_t dg3 = (inlet_g3 - g3) >> 4;
for (int i = 0; i < BUFSIZE; i++) {
outlet_out[i] = ___SMMLA(inlet_in3[i], g3 += dg3,
___SMMLA(inlet_in2[i], g2 += dg2,
___SMMUL(inlet_in1[i], g1 += dg1)))
<< 5;
}
