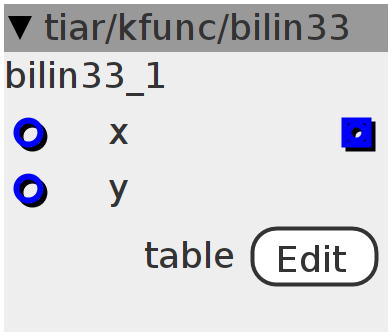

bilin33

Author: Smashed Transistors
License: LGPL
Github: tiar/kfunc/bilin33.axo

Inlets

frac32 x

frac32 y

Outlets

frac32 out

Attributes

text table

Declaration
float v[3][3] = {attr_table};
int32_t *c[3];
Init
for (int iy = 0; iy < 3; iy++) {
  c[iy] = (int32_t *)v[2 - iy];
  for (int ix = 0; ix < 3; ix++) {
    c[iy][ix] = arm::float_to_q(v[2 - iy][ix], 28 - 6);
  }
}
Control Rate
int32_t x = __USAT(inlet_x, 27);
int32_t y = __USAT(inlet_y, 27);
int32_t ix = x >> 26;                    //[0 1]
int32_t ax = (x & ((1 << 26) - 1)) << 5; // q31
int32_t iy = y >> 26;                    //[0 1]
int32_t ay = (y & ((1 << 26) - 1)) << 5; // q31
int32_t c00 = c[iy][ix];
int32_t c01 = c[iy][ix + 1];
//                   q31      q28        q27
int32_t c0 = ___SMMLA(ax, c01 - c00, c00 >> 1);
int32_t c10 = c[iy + 1][ix];
int32_t c11 = c[iy + 1][ix + 1];
//                   q31      q28        q27
int32_t c1 = ___SMMLA(ax, c11 - c10, c10 >> 1);
//                   q31      q27     q26
outlet_out = ___SMMLA(ay, c1 - c0, c0 >> 1) << 1;
