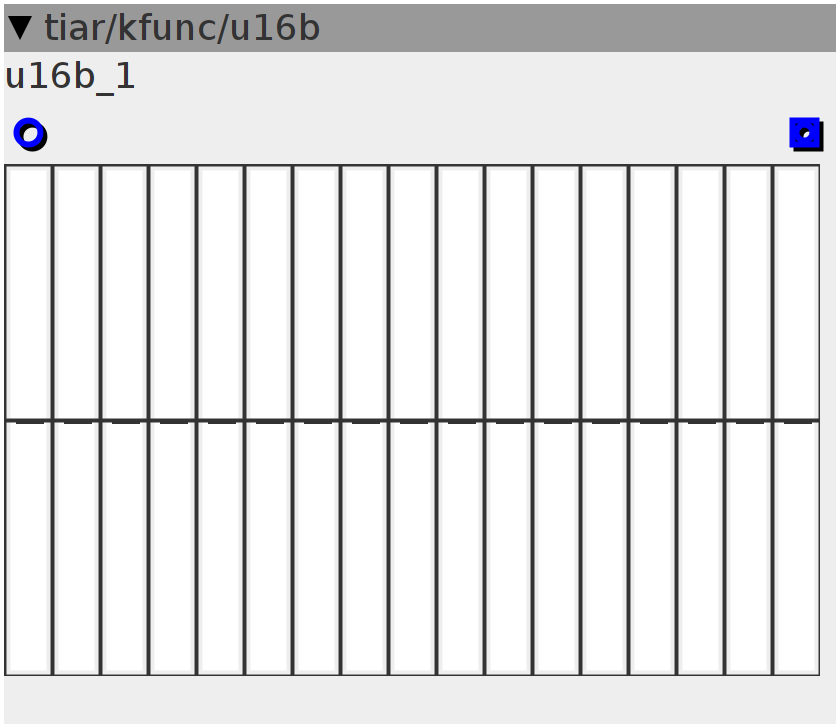

u16b

A unipolar k rate function defined by 16 segments. Use factor/conv/unipolar2bipolar and bipolar2unipolar if you need bipolar functions. It can be used to shape saw LFOs, enveloppes and many other control signals such as pitch (if you need to control a parameter depending on pitch)...
Author: Smashed Transistors
License: LGPL
Github: tiar/kfunc/u16b.axo

Inlets

frac32 in

Outlets

frac32 out

Parameters

frac32.s.mapvsl p0

frac32.s.mapvsl p1

frac32.s.mapvsl p2

frac32.s.mapvsl p3

frac32.s.mapvsl p4

frac32.s.mapvsl p5

frac32.s.mapvsl p6

frac32.s.mapvsl p7

frac32.s.mapvsl p8

frac32.s.mapvsl p9

frac32.s.mapvsl p10

frac32.s.mapvsl p11

frac32.s.mapvsl p12

frac32.s.mapvsl p13

frac32.s.mapvsl p14

frac32.s.mapvsl p15

frac32.s.mapvsl p16

Control Rate
if (inlet_in >= (1 << 27))
  outlet_out = param_p16;
else if (inlet_in <= 0)
  outlet_out = param_p0;
else {
  int32_t i = inlet_in >> (27 - 4);               // i [0 16[
  int32_t a = (inlet_in & ((1 << (27 - 4)) - 1)); // a q23
  if (i < 8) {
    if (i < 4) {     // [0 4[
      if (i < 2) {   // [0 2[
        if (i < 1) { // [0 1[             q27         q24   q18           q27
          outlet_out = ___SMMLA(param_p1 - param_p0, a, param_p0 >> 9) << 9;
        } else { // [1 2[
          outlet_out = ___SMMLA(param_p2 - param_p1, a, param_p1 >> 9) << 9;
        }
      } else {       // [2 4[
        if (i < 3) { // [2 3[
          outlet_out = ___SMMLA(param_p3 - param_p2, a, param_p2 >> 9) << 9;
        } else { // [3 4[
          outlet_out = ___SMMLA(param_p4 - param_p3, a, param_p3 >> 9) << 9;
        }
      }
    } else {         // [4 8[
      if (i < 6) {   // [4 6[
        if (i < 5) { // [4 5[
          outlet_out = ___SMMLA(param_p5 - param_p4, a, param_p4 >> 9) << 9;
        } else { // [5 6[
          outlet_out = ___SMMLA(param_p6 - param_p5, a, param_p5 >> 9) << 9;
        }
      } else {       // [6 8[
        if (i < 7) { // [6 7[
          outlet_out = ___SMMLA(param_p7 - param_p6, a, param_p6 >> 9) << 9;
        } else { // [7 8[
          outlet_out = ___SMMLA(param_p8 - param_p7, a, param_p7 >> 9) << 9;
        }
      }
    }
  } else {
    if (i < 12) {    // [8 12[
      if (i < 10) {  // [8 10[
        if (i < 9) { // [8 9[              q27         q24   q18           q27
          outlet_out = ___SMMLA(param_p9 - param_p8, a, param_p8 >> 9) << 9;
        } else { // [9 10[
          outlet_out = ___SMMLA(param_p10 - param_p9, a, param_p9 >> 9) << 9;
        }
      } else {        // [10 12[
        if (i < 11) { // [10 11[
          outlet_out = ___SMMLA(param_p11 - param_p10, a, param_p10 >> 9) << 9;
        } else { // [11 12[
          outlet_out = ___SMMLA(param_p12 - param_p11, a, param_p11 >> 9) << 9;
        }
      }
    } else {          // [12 16[
      if (i < 14) {   // [12 14[
        if (i < 13) { // [12 13[
          outlet_out = ___SMMLA(param_p13 - param_p12, a, param_p12 >> 9) << 9;
        } else { // [13 14[
          outlet_out = ___SMMLA(param_p14 - param_p13, a, param_p13 >> 9) << 9;
        }
      } else {        // [14 16[
        if (i < 15) { // [14 15[
          outlet_out = ___SMMLA(param_p15 - param_p14, a, param_p14 >> 9) << 9;
        } else { // [15 16[
          outlet_out = ___SMMLA(param_p16 - param_p15, a, param_p15 >> 9) << 9;
        }
      }
    }
  }
}
