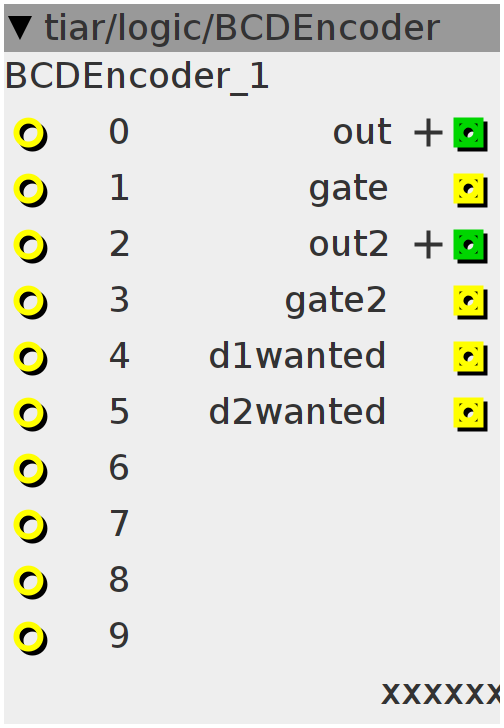

BCDEncoder
display integer
Inlets
bool32 0
bool32 1
bool32 2
bool32 3
bool32 4
bool32 5
bool32 6
bool32 7
bool32 8
bool32 9
Outlets
bool32 gate
bool32 gate2
bool32 d1wanted
bool32 d2wanted
int32.positive out
int32.positive out2
Displays
int32.label v
int32_t v = 0;
int32_t v2 = 0;
int32_t v2Latch = 0;
int32_t _gate = 0;
int32_t gate2 = 0;
int digit = 0;
bool first = true;outlet_gate = inlet_0 || inlet_1 || inlet_2 || inlet_3 || inlet_4 || inlet_5 ||
inlet_6 || inlet_7 || inlet_8 || inlet_9;
if (outlet_gate) {
if (inlet_0)
v = 0;
else if (inlet_1)
v = 1;
else if (inlet_2)
v = 2;
else if (inlet_3)
v = 3;
else if (inlet_4)
v = 4;
else if (inlet_5)
v = 5;
else if (inlet_6)
v = 6;
else if (inlet_7)
v = 7;
else if (inlet_8)
v = 8;
else if (inlet_9)
v = 9;
}
disp_v = outlet_out = v;
if ((digit % 2) == 0) {
outlet_d1wanted = true;
outlet_d2wanted = false;
} else {
outlet_d2wanted = true;
outlet_d1wanted = false;
}
if (!_gate && outlet_gate) {
if ((digit % 2) == 0)
v2 = v;
gate2 = false;
if ((digit % 2) == 1) {
v2 = 10 * v2 + v;
v2Latch = v2;
gate2 = true;
outlet_d1wanted = outlet_d2wanted = false;
}
digit++;
}
_gate = outlet_gate;
outlet_gate2 = gate2;
outlet_out2 = v2Latch;
first = false;
