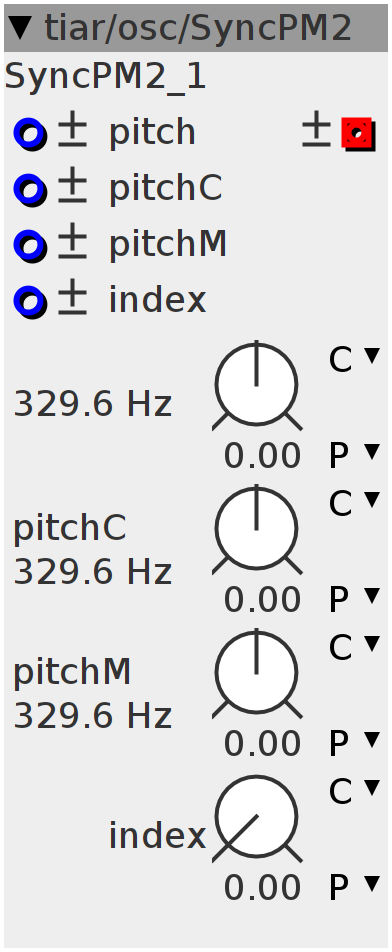

SyncPM2
Inlets
frac32.bipolar pitch
frac32.bipolar pitchC
frac32.bipolar pitchM
frac32.bipolar index
Outlets
frac32buffer.bipolar out
Parameters
frac32.s.map.pitch pitch
frac32.s.map.pitch pitchC
frac32.s.map.pitch pitchM
frac32.u.map index
uint32_t pC;
uint32_t pM;
int32_t dpC, dpM;
int32_t index;
float pMast;
float dpMast, _dpMast;pC = 0;
pM = 0;
pMast = 0;int32_t idp;
MTOFEXTENDED(inlet_pitch + param_pitch, idp);
dpMast = (0.25f / (1 << 30)) * idp;
_dpMast = 1.0f / dpMast;
MTOFEXTENDED(inlet_pitchC + param_pitchC, dpC);
MTOFEXTENDED(inlet_pitchM + param_pitchM, dpM);
index = inlet_index + param_index;pC += dpC;
pM += dpM;
int32_t y =
sine2t[(___SMMLA(index, sine2t[pM >> 20], pC >> 7) >> 13) & 4095] >> 5;
if (pMast > 0.9f) {
y = (int32_t)(y * 10 * (1 - pMast));
}
if (pMast < 0.1f) {
y = (int32_t)(y * 10 * pMast);
}
// _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
pMast += dpMast;
if (pMast > 1) {
pMast -= 1;
float a = pMast * _dpMast;
pC = (uint32_t)(a * dpC);
pM = (uint32_t)(a * dpM);
/* y = (y + (sine2t[(___SMMLA(index, sine2t[pM >> 20], pC >> 7) >> 13) &
* 4095] >> 5)) >> 1;*/
}
outlet_out = y;
