O2_12StepsSync
See help patch for usage !! Advanced version of the SixSteps oscillator: * it have a built-in Master oscillator for sync sounds. * 12 steps instead of 6 (use tiar/osc/wf_12Steps on waveform inlet) * oversampling by 2 (use tiar/conv/O2_to_SR_59 on the output) The waveform of the12Steps oscillator is controlled by 12 parameters: the 12 steps levels. These 12 steps levels must be provided by a tiar/osc/wf_12Steps object connected to the waveform inlet. This object allows to generate waveforms reminiscent of old pseudo digital synths (such as the RMI and it's digit harmonics based on Walsh functions). It is **anti aliased** with an algorithm that is based on both BLEPs and DPWs... i think it is quite original and efficient with this kind of waveforms. (the steppy signal goes through a second order leaky "analytic" integrator, when a transient occurs the state variable of the integrator is updated taking account of the subsample time of the transient - much like BLEPs -... at the end the signal is high passed with a second order differentiator - like a second order DPW...)

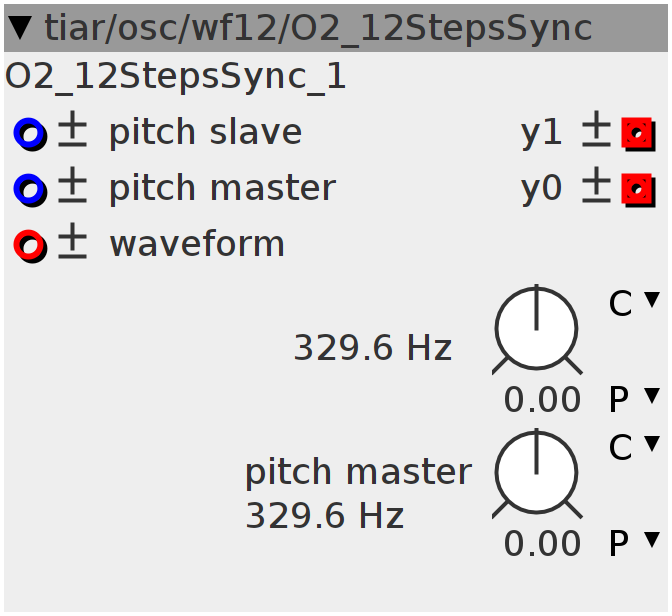

Inlets
frac32.bipolar pitch_slave
frac32.bipolar pitch master
frac32buffer.bipolar waveform
Outlets
frac32buffer.bipolar y1
frac32buffer.bipolar y0
Parameters
frac32.s.map.pitch pitch slave
frac32.s.map.pitch pitch master
Declaration
float x, y, z0, z_1, z_2, p, dp, _dp, pM, dpM, _dpM;
float w0;
int cpt;
float seq[12];
Init
cpt = 0;
x = y = z_2 = z_1 = z0 = w0 = 0;
p = pM = 0;
Control Rate
int32_t idp;
MTOFEXTENDED(param_pitch_space_slave + inlet_pitch_space_slave, idp);
dp = 0.25f * 12.0f * (idp * (1.0f / (1 << 31)));
_dp = 1 / dp;
if (dp > 1)
dp = 1;
// _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
MTOFEXTENDED(param_pitch_space_master + inlet_pitch_space_master, idp);
dpM = 0.25f * (idp * (1.0f / (1 << 31)));
_dpM = 1 / dpM;
if (dpM > 1)
dpM = 1;
// _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
float dc = seq[0] = (float)inlet_waveform[0];
dc += seq[1] = (float)inlet_waveform[1];
dc += seq[2] = (float)inlet_waveform[2];
dc += seq[3] = (float)inlet_waveform[3];
dc += seq[4] = (float)inlet_waveform[4];
dc += seq[5] = (float)inlet_waveform[5];
dc += seq[6] = (float)inlet_waveform[6];
dc += seq[7] = (float)inlet_waveform[7];
dc += seq[8] = (float)inlet_waveform[8];
dc += seq[9] = (float)inlet_waveform[9];
dc += seq[10] = (float)inlet_waveform[10];
dc += seq[11] = (float)inlet_waveform[11];
dc *= 1.0f / 12;
for (int i = 0; i < 12; i++)
seq[i] -= dc;
Audio Rate
// phase increment
pM += dpM;
// _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
// synchro ?
if (pM > 1) { // phase above 1
cpt = 0; // reset
pM -= 1; // reset phase
float alpha = pM * _dpM; // subsample time since the transition
p = alpha * dp;
//_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
// integrator evolution before the transition
float _alpha = 1 - alpha;
float alpha_x = _alpha * x;
z0 += _alpha * (y + 0.5f * alpha_x);
y += alpha_x;
//_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
// transition
x = seq[cpt];
//_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
// integrator evolution after the transition
alpha_x = alpha * x;
z0 += alpha * (y + 0.5f * alpha_x);
y += alpha_x;
} else {
// phase increment
p += dp;
// _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
// transition ?
if (p > 1) { // phase above 1
cpt++; // next step in sequence
if (cpt >= 12) // above 12 => wrap to 0
cpt = 0;
p -= 1; // reset phase
float alpha = p * _dp; // subsample time since the transition
//_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
// integrator evolution before the transition
float _alpha = 1 - alpha;
float alpha_x = _alpha * x;
z0 += _alpha * (y + 0.5f * alpha_x);
y += alpha_x;
//_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
// transition
x = seq[cpt];
//_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
// integrator evolution after the transition
alpha_x = alpha * x;
z0 += alpha * (y + 0.5f * alpha_x);
y += alpha_x;
} else {
//_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
// integrator evolution without transition
z0 += y + 0.5f * x;
y += x;
}
}
// _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
// integrator leaks
y *= 0.997f;
z0 *= 0.997f;
// _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
// 2nd order differenciation
w0 = z0 + z_2 - 2 * z_1;
outlet_y1 = (int32_t)(w0);
// _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
// previous values
z_2 = z_1;
z_1 = z0;
// _____________________________________________________________________
// _____________________________________________________________________
// phase increment
pM += dpM;
// _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
// synchro ?
if (pM > 1) { // phase above 1
cpt = 0; // reset
pM -= 1; // reset phase
float alpha = pM * _dpM; // subsample time since the transition
p = alpha * dp;
//_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
// integrator evolution before the transition
float _alpha = 1 - alpha;
float alpha_x = _alpha * x;
z0 += _alpha * (y + 0.5f * alpha_x);
y += alpha_x;
//_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
// transition
x = seq[cpt];
//_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
// integrator evolution after the transition
alpha_x = alpha * x;
z0 += alpha * (y + 0.5f * alpha_x);
y += alpha_x;
} else {
// phase increment
p += dp;
// _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
// transition ?
if (p > 1) { // phase above 1
cpt++; // next step in sequence
if (cpt >= 12) // above 12 => wrap to 0
cpt = 0;
p -= 1; // reset phase
float alpha = p * _dp; // subsample time since the transition
//_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
// integrator evolution before the transition
float _alpha = 1 - alpha;
float alpha_x = _alpha * x;
z0 += _alpha * (y + 0.5f * alpha_x);
y += alpha_x;
//_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
// transition
x = seq[cpt];
//_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
// integrator evolution after the transition
alpha_x = alpha * x;
z0 += alpha * (y + 0.5f * alpha_x);
y += alpha_x;
} else {
//_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
// integrator evolution without transition
z0 += y + 0.5f * x;
y += x;
}
}
// _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
// integrator leaks
y *= 0.997f;
z0 *= 0.997f;
// _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
// 2nd order differenciation
w0 = z0 + z_2 - 2 * z_1;
outlet_y0 = (int32_t)w0;
// _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
// previous values
z_2 = z_1;
z_1 = z0;
// _____________________________________________________________________
// _____________________________________________________________________
