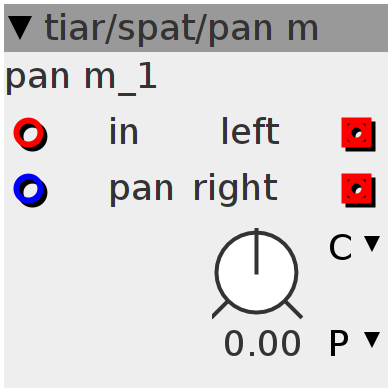

pan m
Constant gain^2 pan with param and modulation inputs
Inlets
frac32buffer input
frac32 pan control
Outlets
frac32buffer output
frac32buffer output
Parameters
frac32.s.map pan
Declaration
int32_t gLeft, gRight;
Control Rate
int32_t a = __USAT((inlet_pan + param_pan) + (1 << 27), 28) << 2; // q30
SINE2TINTERP(a, gRight)
SINE2TINTERP(a + (1 << 30), gLeft)
Audio Rate
outlet_left = ___SMMUL(gLeft, inlet_in) << 1;
outlet_right = ___SMMUL(gRight, inlet_in) << 1;
