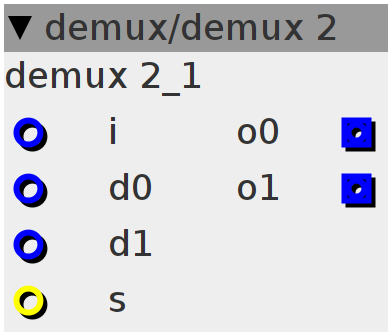

demux 2
Demultiplexer. Connects inlet i to outlet o0 when s is false, to outlet o1 when s is true.
IO Variants: 4
Variant: 1
Inlets
bool32 input
bool32 default 0
bool32 default 1
bool32 select
Outlets
bool32 output 0
bool32 output 1
outlet_o0 = (inlet_s) ? inlet_d0 : inlet_i;
outlet_o1 = (inlet_s) ? inlet_i : inlet_d1;Variant: 2
Inlets
int32 input
int32 default 0
int32 default 1
bool32 select
Outlets
int32 output 0
int32 output 1
outlet_o0 = (inlet_s) ? inlet_d0 : inlet_i;
outlet_o1 = (inlet_s) ? inlet_i : inlet_d1;Variant: 3
Inlets
frac32 input
frac32 default 0
frac32 default 1
bool32 select
Outlets
frac32 output 0
frac32 output 1
outlet_o0 = (inlet_s) ? inlet_d0 : inlet_i;
outlet_o1 = (inlet_s) ? inlet_i : inlet_d1;Variant: 4
Inlets
frac32buffer input
frac32buffer default 0
frac32buffer default 1
bool32 select
Outlets
frac32buffer output 0
frac32buffer output 1
outlet_o0 = (inlet_s) ? inlet_d0 : inlet_i;
outlet_o1 = (inlet_s) ? inlet_i : inlet_d1;
