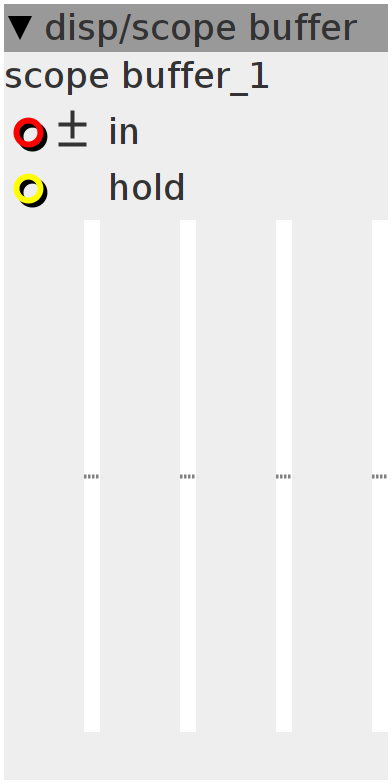

scope buffer
bipolar audio rate signal oscilloscope (time domain), showing 1 sample buffer of 16 samples
Inlets
frac32buffer.bipolar input
bool32 hold
Outlets
None
Displays
frac4byte.vbar v0
frac4byte.vbar v1
frac4byte.vbar v2
frac4byte.vbar v3
Control Rate
if (!inlet_hold) {
int8_t t[16];
int i;
for (i = 0; i < 16; i++)
t[i] = (uint8_t)(inlet_in[i] >> 21);
disp_v0 = *((int32_t *)(&t[0]));
disp_v1 = *((int32_t *)(&t[4]));
disp_v2 = *((int32_t *)(&t[8]));
disp_v3 = *((int32_t *)(&t[12]));
}
