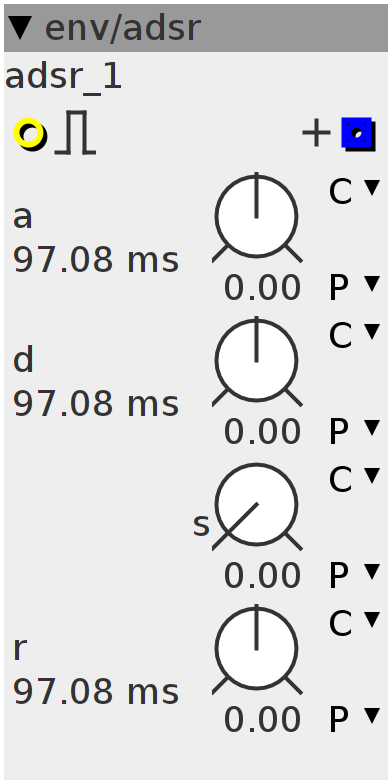

adsr
Attack/decay/sustain/release envelope
Inlets
bool32.risingfalling gate
Outlets
frac32.positive envelope output
Parameters
frac32.s.map.klineartime.exp2 a
frac32.s.map d
frac32.s.map r
frac32.u.map s
Declaration
int8_t stage;
int ntrig;
int32_t val;
Init
stage = 0;
ntrig = 0;
val = 0;
Control Rate
if ((inlet_gate > 0) && !ntrig) {
stage = 1;
ntrig = 1;
}
if (!(inlet_gate > 0) && ntrig) {
stage = 0;
ntrig = 0;
}
if (stage == 0) {
val = ___SMMUL(val, param_r) << 1;
} else if (stage == 1) {
val = val + param_a;
if (val < 0) {
val = 0x7FFFFFFF;
stage = 2;
}
} else if (stage == 2) {
val = (param_s << 4) + (___SMMUL(val - (param_s << 4), param_d) << 1);
}
outlet_env = val >> 4;
