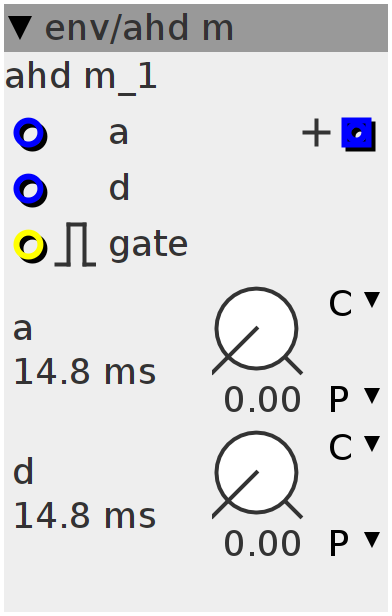

ahd m
attack hold decay envelope with modulation inputs
Inlets
frac32 attack time
frac32 decay time
bool32.risingfalling gate
Outlets
frac32.positive envelope output
Parameters
frac32.u.map.kdecaytime a
frac32.u.map.kdecaytime d
Declaration
int32_t val;
Init
val = 0;
Control Rate
if (inlet_gate > 0)
val = ___SMMLA((1 << 27) - val, (1 << 26) - (param_a >> 1) - (inlet_a >> 1),
val);
else
val = ___SMMLA(val, (-1 << 26) + (param_d >> 1) + (inlet_d >> 1), val);
outlet_env = val;
