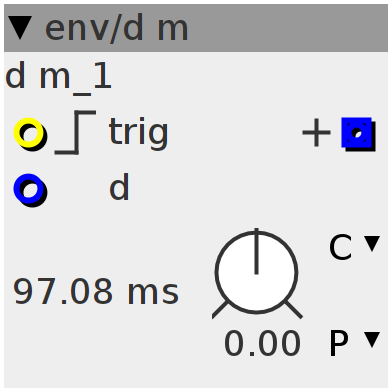

d m
decay envelope with modulation input
Inlets
bool32.rising trigger
frac32 decay time
Outlets
frac32.positive envelope output
Parameters
frac32.s.map.klineartime.exp d
Declaration
int32_t val;
int ntrig;
Init
val = 0;
ntrig = 0;
Control Rate
if ((inlet_trig > 0) && !ntrig) {
val = 1 << 27;
ntrig = 1;
} else {
if (!(inlet_trig > 0))
ntrig = 0;
int32_t in = -inlet_d - param_d;
int32_t c;
MTOFEXTENDED(in, c);
c = 0x7FFFFFFF - (c >> 2);
val = ___SMMUL(val, c) << 1;
}
outlet_env = val;
