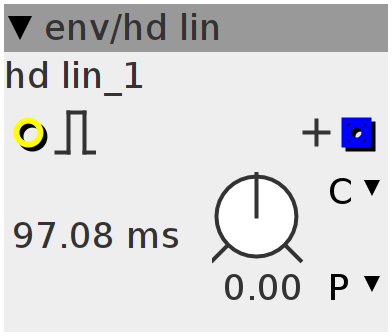

hd lin
hold/decay envelope, linear ramp, extended range
Inlets
bool32.risingfalling trigger
Outlets
frac32.positive envelope output
Parameters
frac32.s.map.klineartime.exp d
Declaration
int32_t val;
Init
val = 0;
Control Rate
if (inlet_trig > 0) {
val = 1 << 27;
} else {
int32_t t;
MTOF(-param_d, t);
val -= t >> 6;
if (val < 0)
val = 0;
}
outlet_env = val;
