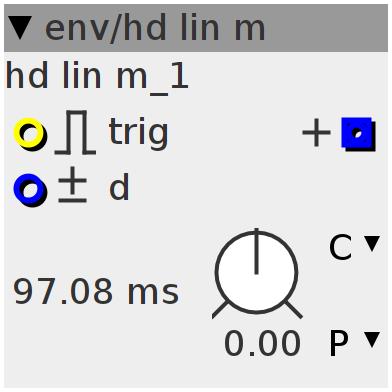

hd lin m
hold/decay envelope, linear ramp, modulation input extended range
Inlets
bool32.risingfalling trigger
frac32.bipolar decay time
Outlets
frac32.positive envelope output
Parameters
frac32.s.map.klineartime.exp d
Declaration
int32_t val;
Init
val = 0;
Control Rate
if (inlet_trig > 0) {
val = 1 << 27;
} else {
int32_t t;
int32_t dt = param_d + inlet_d;
MTOF(-dt, t);
val -= t >> 6;
if (val < 0)
val = 0;
}
outlet_env = val;
