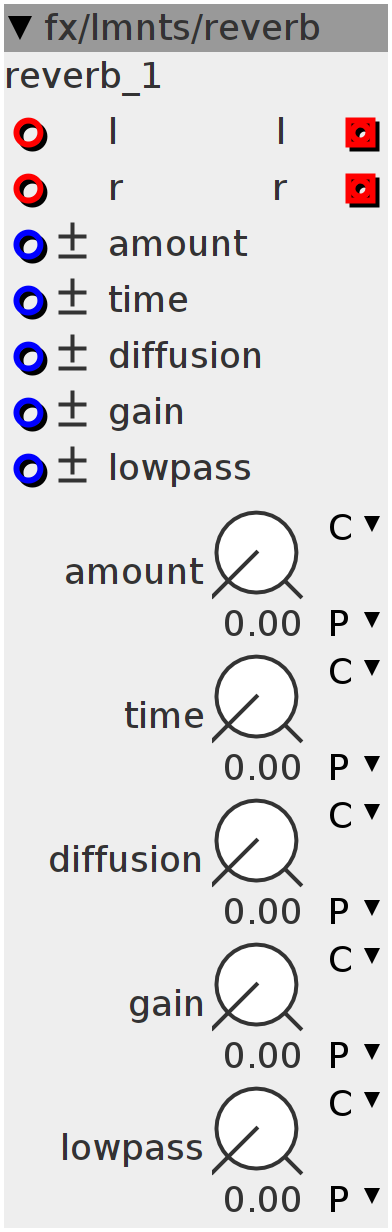

reverb

a reverb effect, based the on elements reverb dsp code open sourced by mutable instruments. any bugs/issues you find are our own, report on the axoloti forum. Thanks to Olivier Gillet from Mutable Instruments for open sourcing their code. http://mutable-instruments.com
Author: Mark Harris
License: GPL
Github: fx/lmnts/reverb.axo

Inlets

frac32buffer l

frac32buffer r

frac32.bipolar amount

frac32.bipolar time

frac32.bipolar diffusion

frac32.bipolar gain

frac32.bipolar lowpass

Outlets

frac32buffer l

frac32buffer r

Parameters

frac32.u.map amount

frac32.u.map time

frac32.u.map diffusion

frac32.u.map gain

frac32.u.map lowpass

Declaration
elements::Reverb reverb;

inline float constrainQ27(int32_t v, float vMin, float vMax) {
  return std::max<float>(vMin, std::min<float>(vMax, q27_to_float(v)));
}

inline float constrain(float v, float vMin, float vMax) {
  return std::max<float>(vMin, std::min<float>(vMax, v));
}
Init
uint16_t *buf = (uint16_t *)sdram_malloc(32768);
if (!buf)
  return;
reverb.Init(buf);
Control Rate
static float left[BUFSIZE];
static float right[BUFSIZE];

int i;

reverb.set_amount(constrainQ27(param_amount + inlet_amount, 0.0f, 1.0f));
reverb.set_input_gain(constrainQ27(param_gain + inlet_gain, 0.0f, 1.0f));
reverb.set_time(constrainQ27(param_time + inlet_time, 0.0f, 1.0f));
reverb.set_diffusion(constrainQ27(param_diffusion + inlet_diffusion, 0.0f,
                                  1.0f));
reverb.set_lp(constrainQ27(param_lowpass + inlet_lowpass, 0.0f, 1.0f));

for (i = 0; i < BUFSIZE; i++) {
  left[i] = q27_to_float(inlet_l[i]);
  right[i] = q27_to_float(inlet_r[i]);
}

reverb.Process(left, right, BUFSIZE);

for (i = 0; i < BUFSIZE; i++) {
  outlet_l[i] = float_to_q27(left[i]);
  outlet_r[i] = float_to_q27(right[i]);
}
