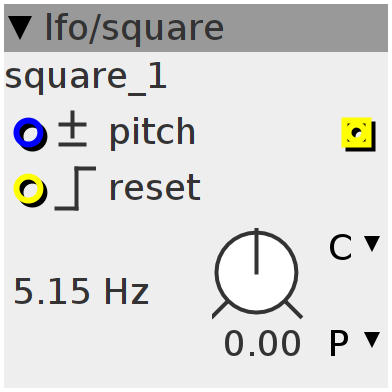

square
square wave LFO, boolean output, frequency input
Inlets
frac32.bipolar pitch
bool32.rising reset phase
Outlets
bool32 square wave
Parameters
frac32.s.map.lfopitch pitch
Declaration
int32_t Phase;
uint32_t r;
Init
Phase = 0;
r = 1;
Control Rate
{
if (inlet_reset && r) {
Phase = 0;
r = 0;
} else {
if (!inlet_reset)
r = 1;
int32_t freq;
MTOFEXTENDED(param_pitch + inlet_pitch, freq);
Phase += freq >> 2;
}
outlet_wave = (Phase > 0) ? 1 : 0;
}
