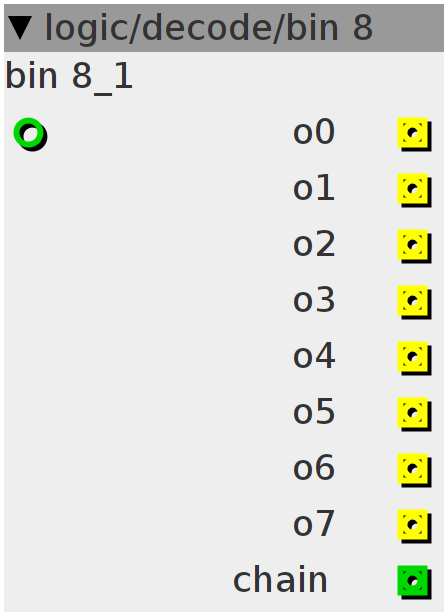

bin 8
binary decoder
Inlets
int32 input 1
Outlets
int32 chain output
bool32 output 0
bool32 output 1
bool32 output 2
bool32 output 3
bool32 output 4
bool32 output 5
bool32 output 6
bool32 output 7
outlet_o0 = (inlet_i1 & 0x01) ? 1 : 0;
outlet_o1 = (inlet_i1 & 0x02) ? 1 : 0;
outlet_o2 = (inlet_i1 & 0x04) ? 1 : 0;
outlet_o3 = (inlet_i1 & 0x08) ? 1 : 0;
outlet_o4 = (inlet_i1 & 0x10) ? 1 : 0;
outlet_o5 = (inlet_i1 & 0x20) ? 1 : 0;
outlet_o6 = (inlet_i1 & 0x40) ? 1 : 0;
outlet_o7 = (inlet_i1 & 0x80) ? 1 : 0;
outlet_chain = (inlet_i1 >> 8);
