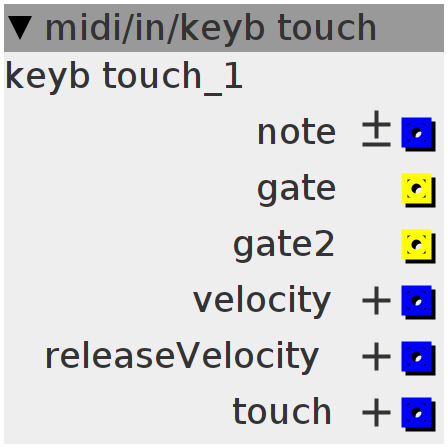

keyb touch
Monophonic MIDI keyboard note input, gate, velocity and release velocity. Polyphonic touch output.
Inlets
None
Outlets
frac32.bipolar midi note number (-64..63)
bool32 key pressed, no retrigger legato
bool32 key pressed, retrigger on legato
frac32.positive note-on velocity
frac32.positive note-off velocity
frac32.positive polyphonic aftertouch
Declaration
int8_t _note;
int32_t _gate;
int32_t _gate2;
uint8_t _velo;
uint8_t _rvelo;
uint8_t _touch;
Init
_gate = 0;
_note = 0;
_touch = 0;
Control Rate
outlet_note = _note << 21;
outlet_gate = _gate;
outlet_gate2 = _gate2;
_gate2 = _gate;
outlet_velocity = _velo << 20;
outlet_touch = _touch << 20;
outlet_releaseVelocity = _rvelo << 20;
Midi Handler
if ((status == MIDI_NOTE_ON + attr_midichannel) && (data2)) {
_velo = data2;
_note = data1 - 64;
_gate = 1 << 27;
_gate2 = 0;
} else if (((status == MIDI_NOTE_ON + attr_midichannel) && (!data2)) ||
(status == MIDI_NOTE_OFF + attr_midichannel)) {
if (_note == data1 - 64) {
_rvelo = data2;
_gate = 0;
}
} else if ((status == attr_midichannel + MIDI_POLY_PRESSURE) &&
(data1 - 64 == _note)) {
_touch = data2;
} else if ((status == attr_midichannel + MIDI_CONTROL_CHANGE) &&
(data1 == MIDI_C_ALL_NOTES_OFF)) {
_gate = 0;
}
